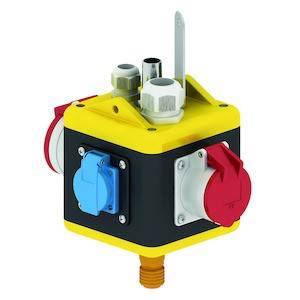

Bals Elektrotechnik CEE suspended distributor 57711 57711
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 1x16A5p400V
- CEE socket - 32 A: 1x32A5p400V
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 2
- Other fixtures and/or empty spaces: 1
- Security: Without
- FI-circuit breaker: Without
- Material of housing: Rubber
- Feed/connection possibility: Other
- Diameter of cable entry: M32
- Cable length 0 m
- Handling: Dependent
- Protection type (IP) IP44
- Military version: No.
- Colour, black

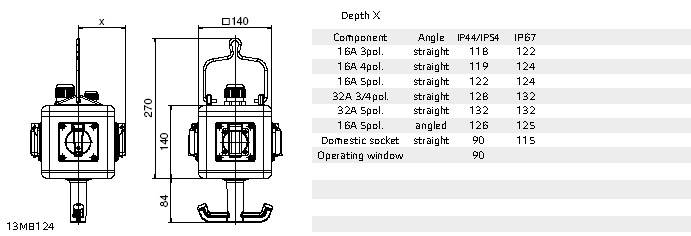

- Height: 140 mm
- Width 140 mm
- Depth: 140 mm
- Product type
CEE suspended distributor
- No. of CEE connectors
2
- No. of PG sockets
2
- Nominal output voltage
400 V
IP44
- Factory colour
Black
- Dim
(L x W x H) 140 x 140.00 x 140.00 mm
- Length
140 mm
- Width
140.00 mm
- Height
140.00 mm
- Content
1 pc(s)
- Number of pins
5
- Depth
140.00 mm
- Material
Rubber
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145111 Bals Elektrotechnik CEE suspended distributor 57711 57711
User & Safety Instructions
User & Safety Instructions 3145111 Bals Elektrotechnik CEE suspended distributor 57711 57711
Description

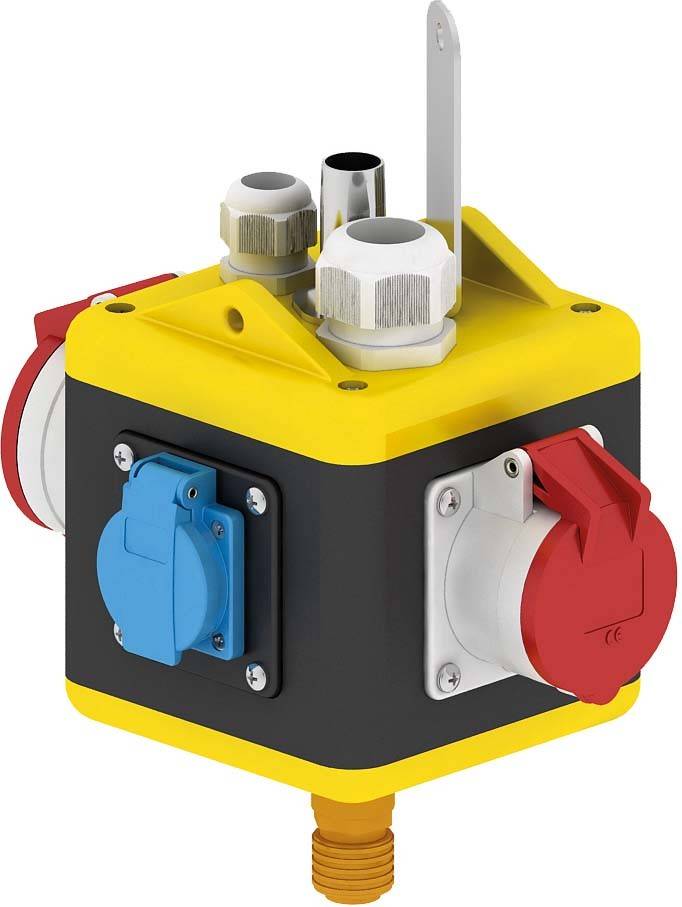

UNI - Block, depending, degree of protection: IP44, Housing: Impact-resistant solid rubber housing with hanging angle, device color: Black housing similar to RAL 9017, upper part yellow similar to RAL 1021, device height: 140 mm, device width: 140 mm, device depth: 140 mm, equipment: 2 x earthing contact socket-outlet 16A 230V IP 44 1 x CEE-socket 16A 400V 5p 6h IP 44 1 x CEE-socket 32A 400V 5p 6h IP 44 1 x compressed air connection consisting of, access: 1/2"
Tube with external thread outlet: 1/2"
Quick coupling, protection/safety measure: Without, cable entry/connection possibility: 1 x M32 cable gland (sealing range: 15-21mm) 1 x M25 cable gland (sealing range: 11-17mm) Additional information: Ready wired for connection to two circuits (protection class CEE 16A/ CEE 32A). Structure according to Z-No. Z131090 CEE devices with screw less, maintenance free Quick-Connect connection technology.
