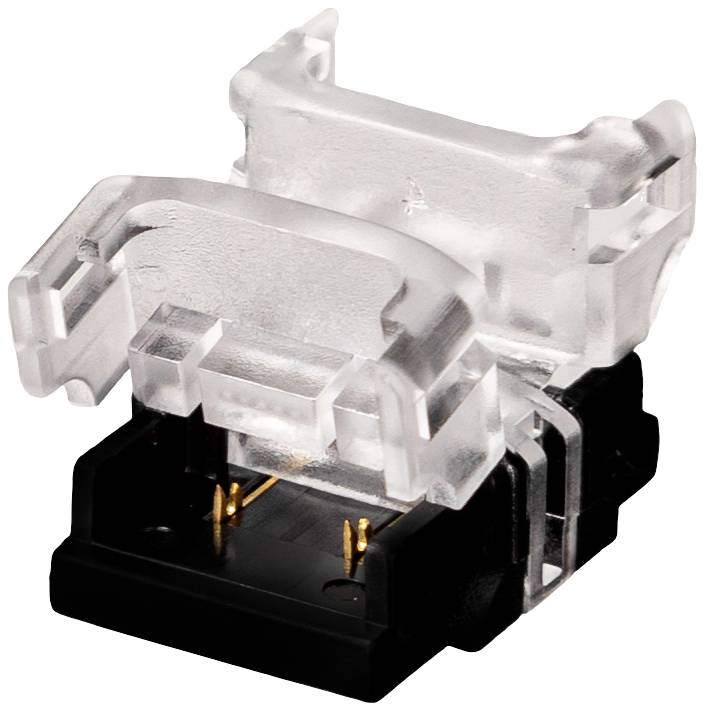

Barthelme 50070208 10FF2 Connector Polycarbonate (PC) (L x W x H) 19.6 x 14.6 x 7.7 mm Package 5 pc(s)
EAN:
Part number:
Item no:
Packaging type
Package
Product type
Connector
Material
Polycarbonate (PC)
Length
19.6 mm
Energy efficiency rating
n.rel.
Datasheet (PDF)
Number (Package size 5 pc(s))
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
Only 2 Set(s) available
Highlights & Details
LED strips connector set 10FF2, 10 mm, 5 pieces
- Pack of 5
- Can be connected quickly and easily without soldering
- For 2-pin strips
Technical specifications
- Connection type: Terminals
- Max. Operating current 5 A.
- Flame resistance: UL94 V, also suitable for stranded wire
- Packaging type
Package
- Product type
Connector
- Connection
Clamp
- Number of pins
2
- Min. operating voltage
3 V DC
- Operating voltage
3 - 24 V DC
- Max. operating voltage
24 V DC
- Operating current
5 A
- Material
Polycarbonate (PC)
- Material properties
Polycarbonate
IP20
- Width
14.6 mm
- Height
7.7 mm
- Length
19.6 mm
- Dim
(L x W x H) 19.6 x 14.6 x 7.7 mm
- RoHS-compliant
Yes
n.rel.
Documents & Downloads
Datasheet
Datasheet 2923398 Barthelme 50070208 10FF2 Connector Polycarbonate (PC) (L x W x H) 19.6 x 14.6 x 7.7 mm Package 5 pc(s)
User & Safety Instructions
User & Safety Instructions 2923398 Barthelme 50070208 10FF2 Connector Polycarbonate (PC) (L x W x H) 19.6 x 14.6 x 7.7 mm Package 5 pc(s)
Description
LED Connector Set 10FF2, 10 mm, for tool-free connection of 2-pin strips, 5 pieces.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Pack of 5 connectors
Hints
You will find the current compatibility list on www.barthelme.de
Expandable LED strips as required (note: Observe the maximum feed length of the LED strip)
