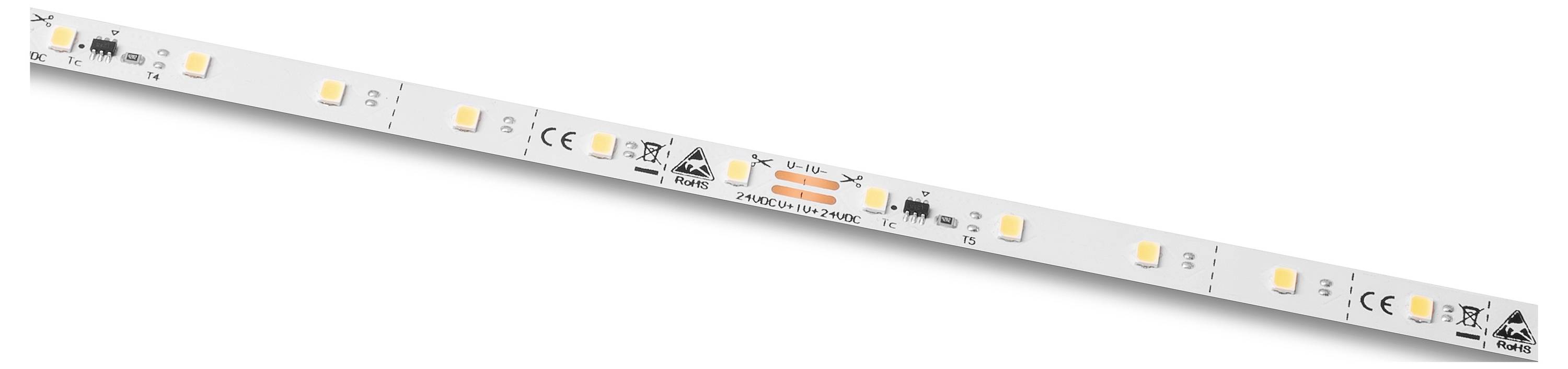

Barthelme 50413128T 50413128T LED strip 1 pc(s)
EAN:
Part number:
Item no:
Product type
LED strip
Energy efficiency rating
n.rel.
Datasheet (PDF)
Technical specifications
- Width 8 mm
- Number of poles: 2
- Design: Band
- Mounting type: Construction/installation
- Protection class (IP) IP66
- Protection class III
- Length: 5000 mm
- Connection type: Soldering
- Self-adhesive: Yes
- Voltage type DC
- Bulb: LED not replaceable
- Lamp voltage 24 V
- Number of lamps per meter: 60
- Lamp power per meter 4.8 W
- Luminous flux per meter: 480 lm
- Reflected beam angle 120°
- Operating device: LED operating device voltage-controlled
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Colour temperature: 2700 K
- Color Rendering Index CRI: 90-100
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 1.4 mm
- Minimum bend radius 20 mm
- Length of each section 100 mm
- With end piece: No.
- With connection set: No.
- With protective cover: No.
- Type of wiring: Suitable for through-wiring
- Removable operating device: No.
- Max. System power 24 W
- Suitable for dimmer: Yes
- Product type
LED strip
n.rel.
Documents & Downloads
Datasheet
Datasheet 3549781 Barthelme 50413128T 50413128T LED strip 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3549781 Barthelme 50413128T 50413128T LED strip 1 pc(s)
Description
LED-strips LEDlight Flex 16 8 STANDARD 500 IP 66-MFC 2.0, 24 V DC, 2700 K, IP 66, LED-strips with protection against moisture, Ideal for applications in surroundings with high humidity (e.g. bathrooms and protected outdoor areas), good color reproduction: CRI Ra typ. 90, good efficiency: Up to 117 lm/W at 4000 K, long light lines with only one feed by double layer FCP possible, only one bin per light color according to 3-step Macadam for excellent color fidelity and high reproducibility, current control by IC for constant brightness over the entire light line, with TVS surge protection diode, with high-quality 3M double-sided adhesive tape, roll length: 500 cm (50 segments à 10 cm), width LED strips: 8 mm, W/layout: 0.48 W, life: L70 > 60,000 h @ TC < 80 °C. Please note that the IP protective layer will be damaged during cutting and soldering. To regain complete protection, the cutting and soldering points must be sealed again. We recommend the use of mibenco liquid rubber (art. no.: 63500050).
