Buy Barthelme 52190215 LED bulb White BA15d 24 V DC, 24 V AC 42 lm

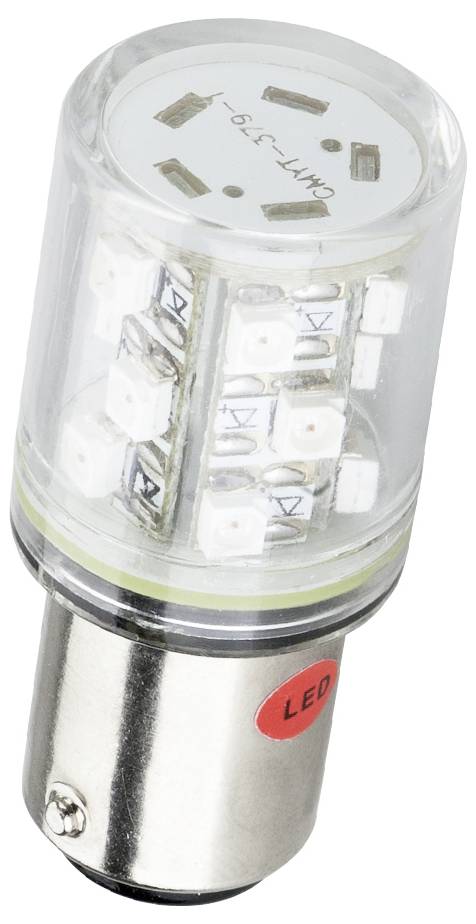

A LED lightbulb in a cylindrical shape with many small light-emitting diodes inside and a metal base at the bottom.

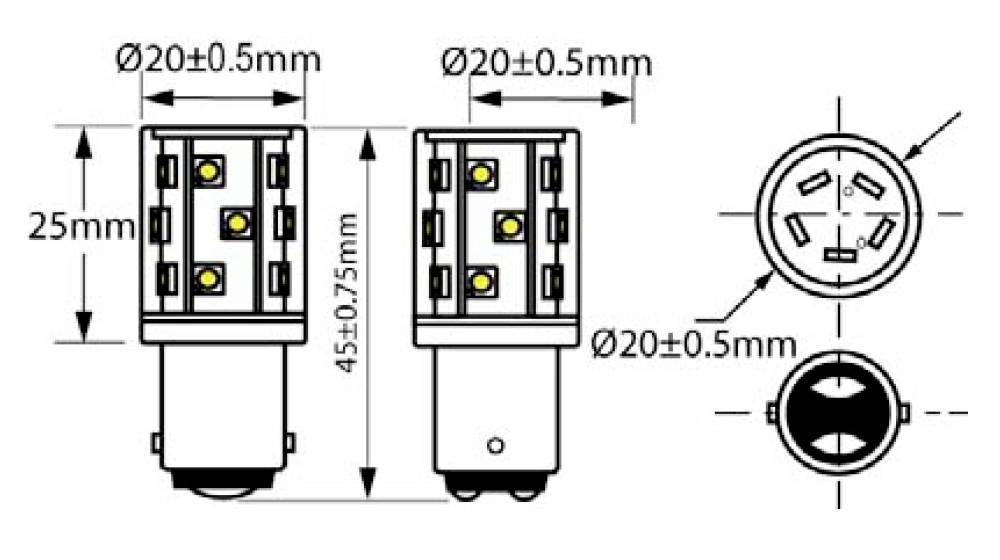

Technical Drawing of an LED Light Bulb with Dimensions: Diameter 20±0.5mm, Height 45±0.75mm. Shows Front, Side, and Top Views.

1/2

Product type

LED bulb

Operating voltage

24 V DC

24 V AC

Base

BA15d

Operating current

42 mA

Type

52190215

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

135 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 32.76 / piece)

€ 32.76

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Barthelme 52190215 LED bulb White BA15d 24 V DC, 24 V AC 42 lm

Our service for you

Technical specifications

Product type: LED bulb

Type: 52190215

Factory colour: White

Operating voltage: 24 V DC
24 V AC

: BA15d

Operating current: 42 mA

Radiation angle: 360°

Dim: (Ø x L) 20 mm x 45 mm

Length: 45 mm

(Ø): 20 mm

Min. temperature: -40 °C

Max. temperature: 50 °C

RoHS-compliant: Yes

Type (LEDs): White

Type: 15 (3 x 5) LEDs

Content: 1 pc(s)

Luminous flux (Φ): 42 lm

Documents & Downloads

Datasheet

Datasheet 182880 Barthelme 52190215 LED bulb White BA15d 24 V DC, 24 V AC 42 lm

User & Safety Instructions

User & Safety Instructions 182880 Barthelme 52190215 LED bulb White BA15d 24 V DC, 24 V AC 42 lm

Description

Lateral emission of 360° by 15 super bright LEDs. Can be used as an indicator/warning light. Extremely long life of approx. 50,000 h associated with shock and vibration insensitivity leads to significant cost savings.

This text is machine translated.
