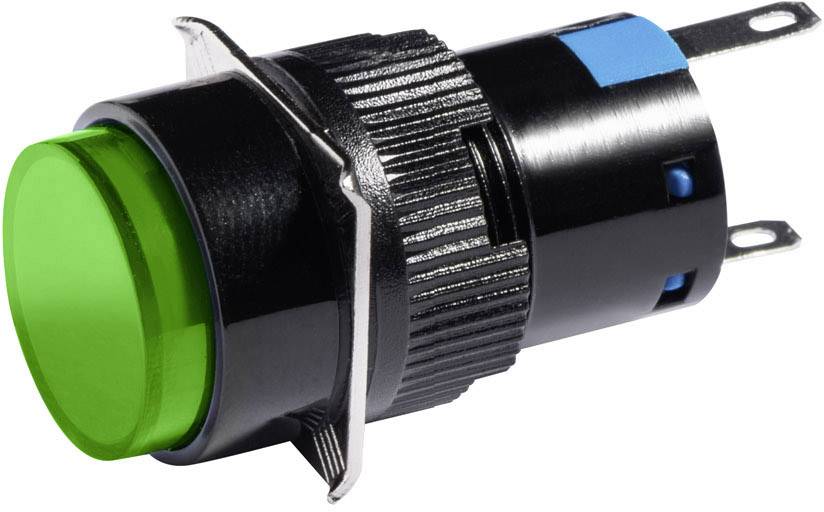

Barthelme 58500313 LED indicator light Green LED 230 V AC
EAN:
Part number:
Item no:
Product type
LED indicator light
Operating voltage
230 V AC
Base
LED
Recess diameter
16 mm
IP rating
IP40
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.29
5
6% = € 0.38
€ 5.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.29 / piece)
€ 6.29
plus VAT.
Only 10 Piece(s) available
Highlights & Details
LED signal lamp round 18 x 39 mm IP40
Our service for you
Technical specifications
- Product type
LED indicator light
- Type
58500313
- Factory colour
Green
- Operating voltage
230 V AC
LED
- Recess diameter
16 mm
- Mounting depth
30 mm
- Head Ø
18 mm
- Head height
14.8 mm
- Front panel thickness
1 - 6 mm
- Case colour
Black
- Mounting type
Screw and union
IP40
- Connection
Solder lug
- Dim
(Ø x L) 18 mm x 39 mm
- Length
39 mm
- (Ø)
18 mm
- Min. temperature
-25 °C
- Max. temperature
+55 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1517243 Barthelme 58500313 LED indicator light Green LED 230 V AC
User & Safety Instructions
User & Safety Instructions 1517243 Barthelme 58500313 LED indicator light Green LED 230 V AC
Description
The LED signal lamps with a built-diameter of 16 mm are suitable for visual display of operating states on machines, equipment, etc. They are fixed with screw thread and lock nut (wall thickness 1 - 6 mm).
