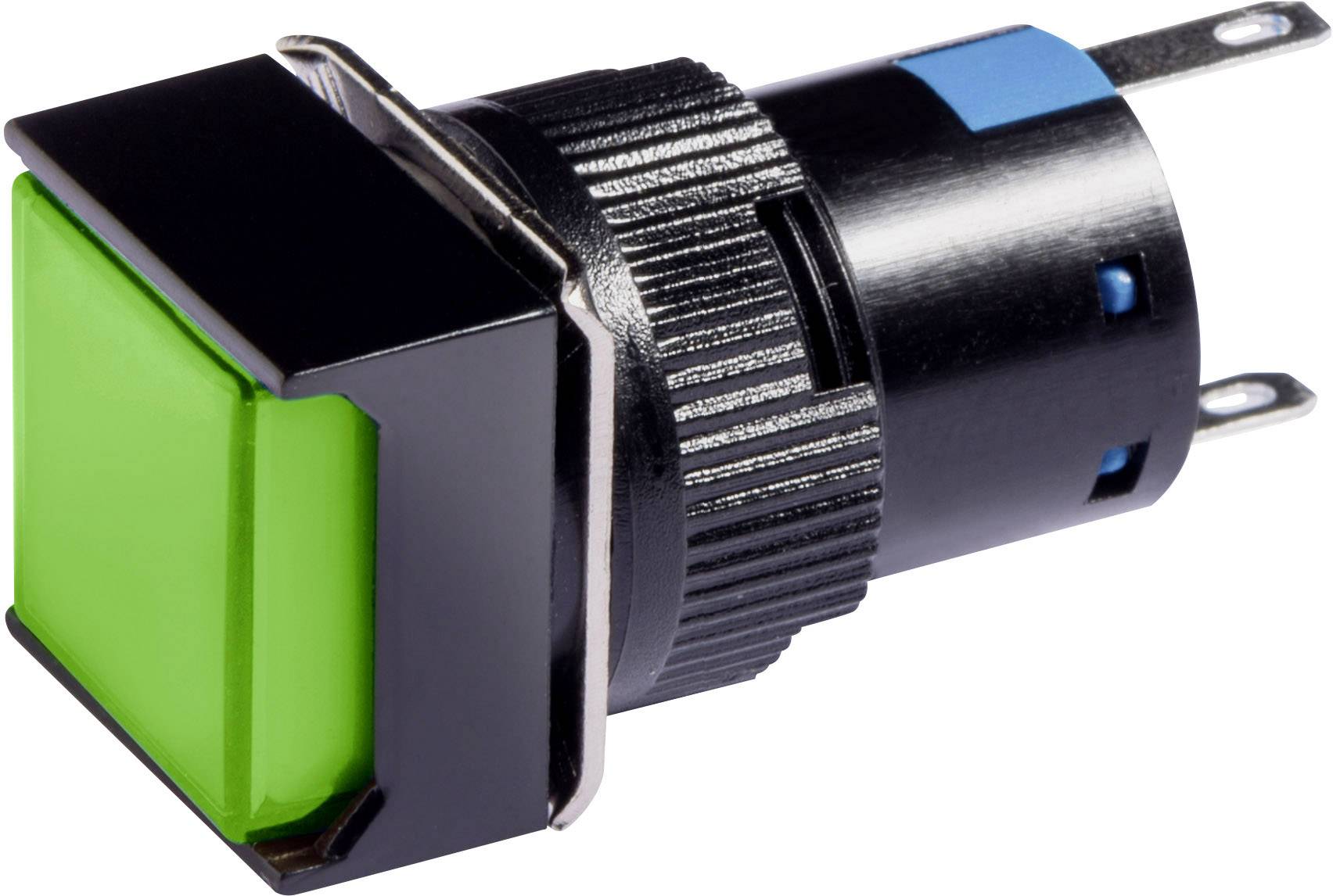

Barthelme 58520113 LED indicator light Green 12 V DC/AC
EAN:
Part number:
Item no:
Product type
LED indicator light
Operating voltage
12 V DC/AC
Recess diameter
16 mm
IP rating
IP40
Connection
Solder lug
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
10
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
Only 9 Piece(s) available
Highlights & Details
LED signal lamp square 18 x 18 mm, IP40
Our service for you
Technical specifications
- Product type
LED indicator light
- Type
31 0113
- Factory colour
Green
- Operating voltage
12 V DC/AC
- Recess diameter
16 mm
- Mounting depth
30 mm
- Head height
9 mm
- Front panel thickness
1 - 6 mm
- Case colour
Black
- Mounting type
Screw and union
IP40
- Connection
Solder lug
- Dim
(L x W x H) 39 x 18 x 18 mm
- Length
39 mm
- Width
18 mm
- Height
18 mm
- Min. temperature
-25 °C
- Max. temperature
+55 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1517218 Barthelme 58520113 LED indicator light Green 12 V DC/AC
Description
The LED signal lamps with a built-diameter of 16 mm are suitable for visual display of operating states on machines, equipment, etc. They are fixed with screw thread and lock nut (wall thickness 1 - 6 mm).
