Barthelme 62393152 62393152 Profile Aluminium (L x W x H) 2000 x 41 x 102 mm Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Profile
Material
Aluminium
Length
2000 mm
Energy efficiency rating
n.rel.
Technical specifications
- Height: 102 mm
- Width 41 mm
- Material: Aluminium
- Colour: Aluminium
- Length: 2000 mm
- Transparent: No.
- Type of accessories/spare parts: Chassis
- Accessories: Yes
- Spare part: No.
- Packaging type
Piece
- Product type
Profile
- Factory colour
Aluminium
- Material
Aluminium
- Material properties
powder-coated
- LED features
tamperproof
- Width
41 mm
- Height
102 mm
- Length
2000 mm
- Dim
(L x W x H) 2000 x 41 x 102 mm
n.rel.
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3545852 Barthelme 62393152 62393152 Profile Aluminium (L x W x H) 2000 x 41 x 102 mm Piece 1 pc(s)
Description

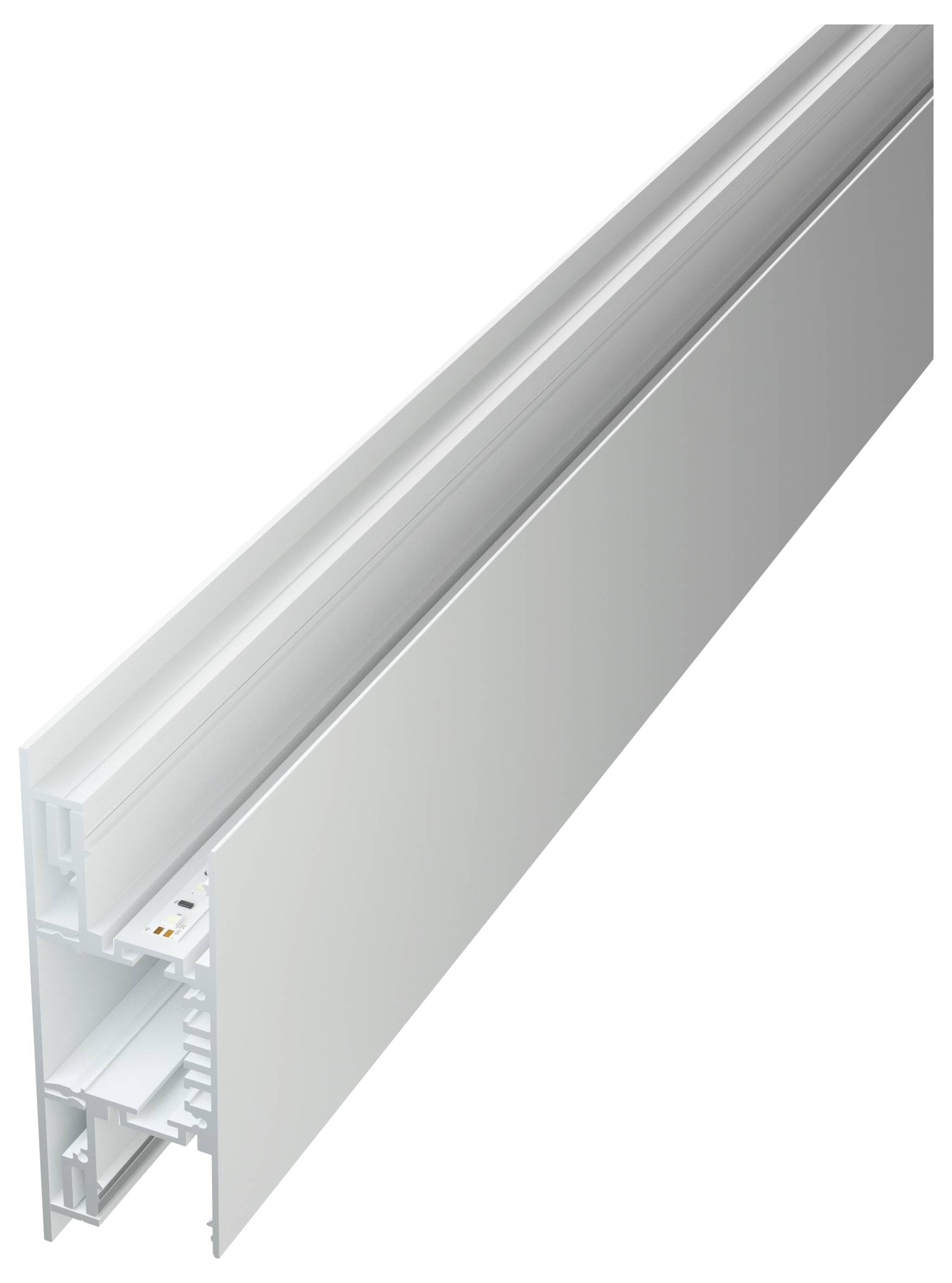

High-quality wall profile made of aluminum, powder-coated, Ideal for indirect lighting via wall reflection, with horizontal mounting alternatively upward and/or downward radiating, with vertical mounting either to the left and/or right radiating, with integrated cable routing, power supplies 66000315 and 66000316 can be integrated, basic profile in RAL 9016 (traffic white), Front panel either in RAL 9016 (traffic white) or RAL 9005 (jet black), suitable for mounting LED-strips of the LEDlight Flex-family or boards according to Zhaga-classes L28W2 and L56W2, mounting surfaces of light sources are not powder-coated for optimum adhesion power of adhesive strips or for optimum heat dissipation, front panel can be screwed optionally vandal-resistant
