Barthelme Controller 66000465 Chromoflex Casambi
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

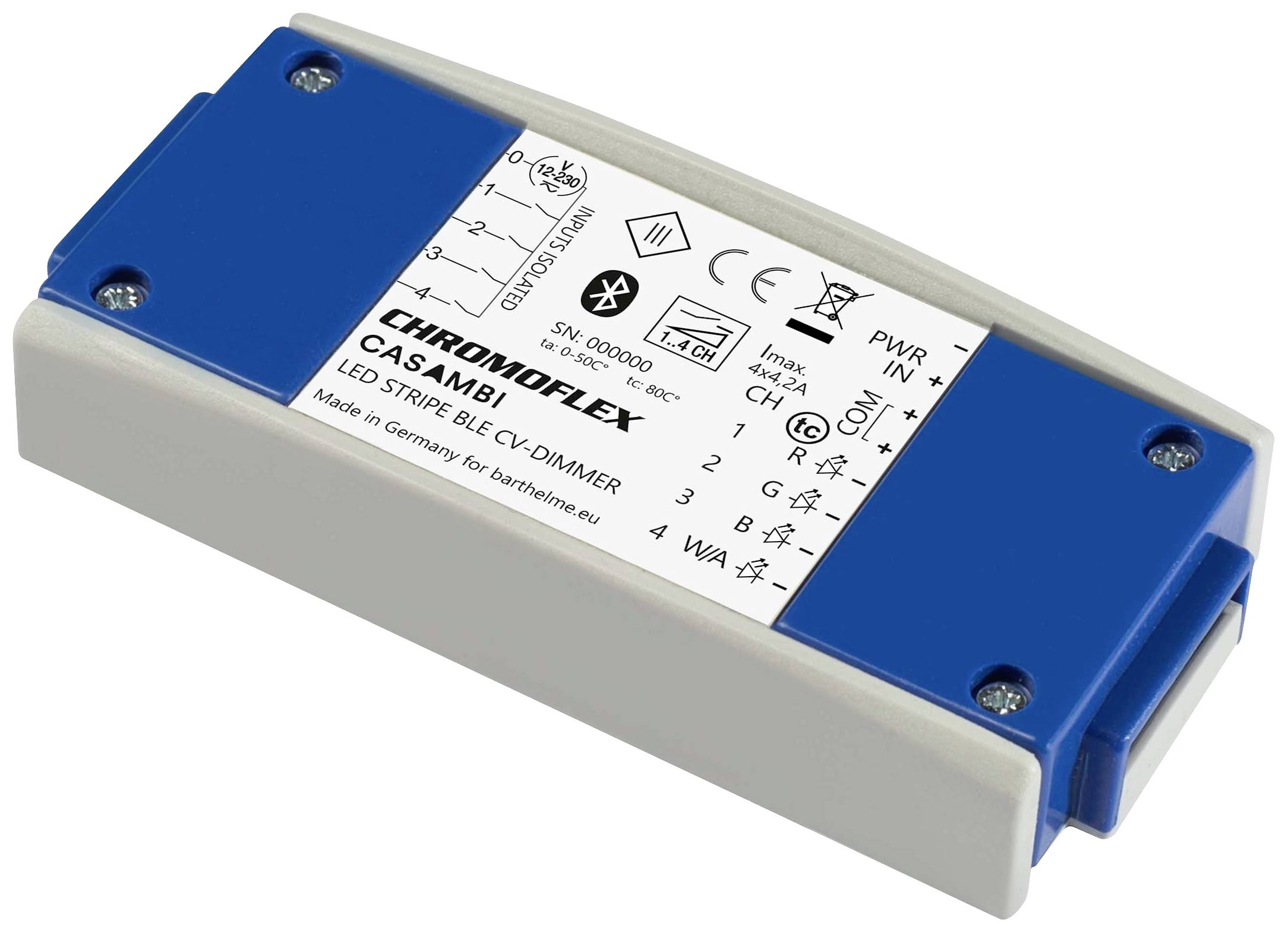

Barthelme controller CHROMOFLEX CASAMBI 4-channel CV
- Chromoflex control unitLight control for controlling LED systems via Bluetooth4 channels
Technical specifications
- Design = electronic light control (LED)Maximum current 6 A.Total power 384 W.4 freely programmable button inputsCasambi compatibility: Classic and Evolution4A per channel @24V; 2A per channel @48V
- Product type
Controller
- Weight
60 g
- Width
116 mm
- Height
21.5 mm
- Length
52 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2749434 Barthelme Controller 66000465 Chromoflex Casambi
User & Safety Instructions
User & Safety Instructions 2749434 Barthelme Controller 66000465 Chromoflex Casambi
Description
Light control for controlling LED systems via Bluetooth via tablet or smartphone, extensive communications standard, compatible with Android and iOS, fully network-compatible with all CASAMBI-compatible devices, 4 controllable channels of monochrome to RGBW/RGBA, freely programmable CASAMBI button inputs, high PWM frequency
This text is machine translated.
This text is machine translated.
Features
- Control lights for LED systems via Bluetooth using a tablet or smartphoneExtensive communications standardSupports Android and iOSCan be fully networked with all CASAMBI-compatible devices4 controllable channels of monochrome up to RGBW/RGBAFreely assignable CASAMBI button inputsHigh PWM frequency
Scope of delivery
- Barthelme controller CHROMOFLEX CASAMBI 4-channel CV 66000465
