Barthelme LED driver EEC A (A - G) 424 W 2.2 A adjustable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

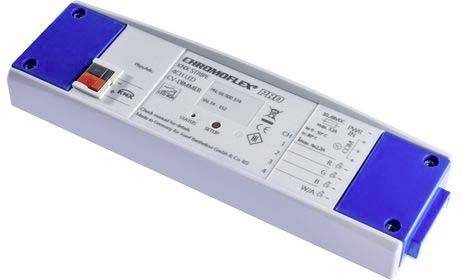

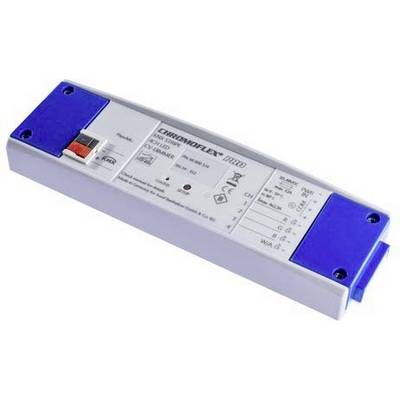

Chromoflex Pro sequence actuator 4-channel KNX LED
- 2.2 A
Technical specifications
- Bus system KNX=yesMounting type=surface-mountedWith bus connection=yesOn site/manual operation=no.With LED display=no.Interface 1-10 V=no.Max. Switching current (resistive load)=2.2 AMax. Switching power = 424 WNumber of outputs=4Protection class (IP)=IP20
- Product type
LED driver
- Dim
(L x W x H) 182 x 52 x 22 mm
- Factory colour
Blue
Grey
- Max. output current
2.2 A
- Output current (max.) - rounded
2.2 A
- Protection class
IP20
- LED driver features
adjustable
- Max. power
424 W
- No. of outputs
4 x
- No. of inputs
1 x
- Input voltage (max.)
48 V
- Min. input voltage
10 V
- Weight
93.6 g
- Power range
424 W (max)
- Type
KNX stripe CV 4-channel
- Width
52 mm
- Height
22 mm
- Length
182 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2749394 Barthelme LED driver EEC A (A - G) 424 W 2.2 A adjustable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2749394 Barthelme LED driver EEC A (A - G) 424 W 2.2 A adjustable 1 pc(s)
Description
Can be controlled via KNX, number of channels adjustable via ETS, com+ common anode, short-circuit proof, compatible with ETS4 and higher
This text is machine translated.
This text is machine translated.
Features
- Can be controlled via KNXNumber of channels adjustable via ETSCom+ common anodeshort circuit resistantCompatible with ETS4 and higher
Scope of delivery
- Barthelme Chromoflex Pro sequence actuator 4-channel KNX LED 66000374
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
