Barthelme Netzteil 24V (CV) LED transformer Constant voltage 24 W 1 A 24 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

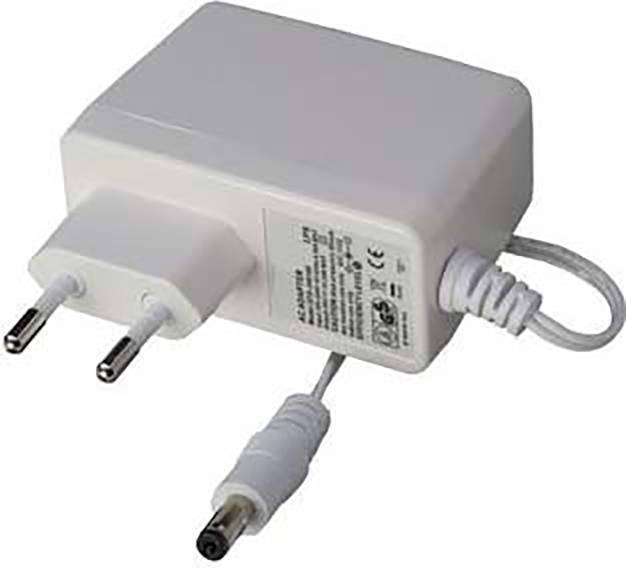

Barthelme plug power supply WS 24V DC 24W 1A AC
- Constant voltage
- 24 V
- 1 A
Technical specifications
- Housing=plastic housingSuitable for constant voltage=yes
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 72 x 34 x 90 mm
- Factory colour
White
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V
- Max. output current
1 A
- Output current (max.) - rounded
1 A
- Operating voltage
230 V
- Protection class
w/o certification
IP40
- Connection
Plug
- Max. power
24 W
- No. of outputs
1 x
- Input voltage (max.)
240 V
- Min. input voltage
100 V
- Power range
24 W (max)
- Width
34 mm
- Height
90 mm
- Length
72 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2749439 Barthelme Netzteil 24V (CV) LED transformer Constant voltage 24 W 1 A 24 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2749439 Barthelme Netzteil 24V (CV) LED transformer Constant voltage 24 W 1 A 24 V 1 pc(s)
Description
Max. Output current: 1A, Cable length: 150cm and Plug, 2.1 mm, Housing color: White
This text is machine translated.
This text is machine translated.
Features
- Max. output current 1ACable length 150 cm and plug2.1mmHousing color: White
Scope of delivery
- Barthelme plug power supply WS 24V DC 24W 1A AC 66000231
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
