Basi 1301-0205 Additional door lock Silver
EAN:
Part number:
Item no:
Highlights & Details

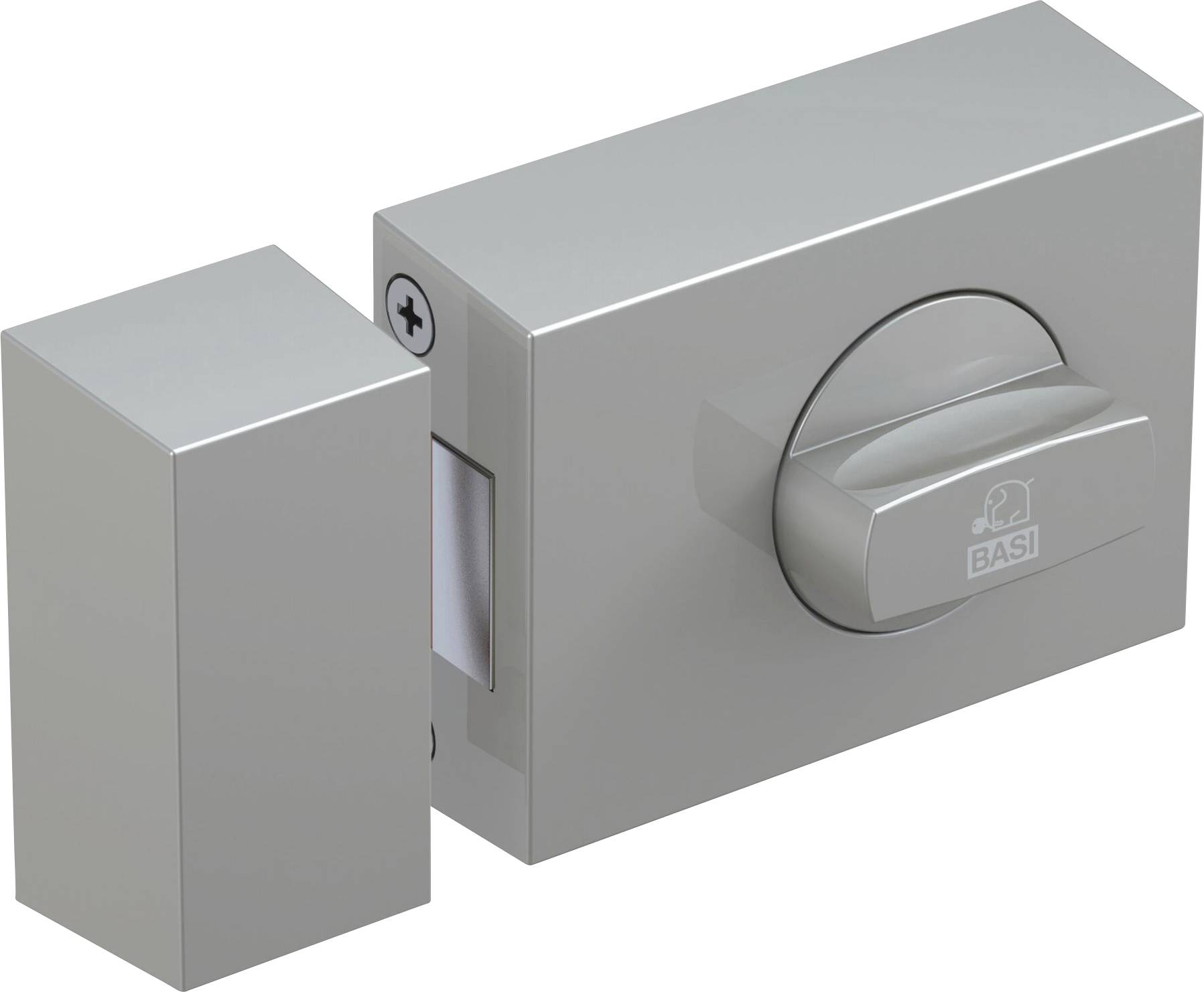

Additional door lock
- BASI additional door lock, effective protection against violent breaking from the outside
- Fitted with a solid bar (2-speed) - DIN left / right usable
- Closure: Rotary knob on the inside / BASI outer cylinder available as an option
- Including frame dowel screws, mounting accessories, drilling template and installation instructions

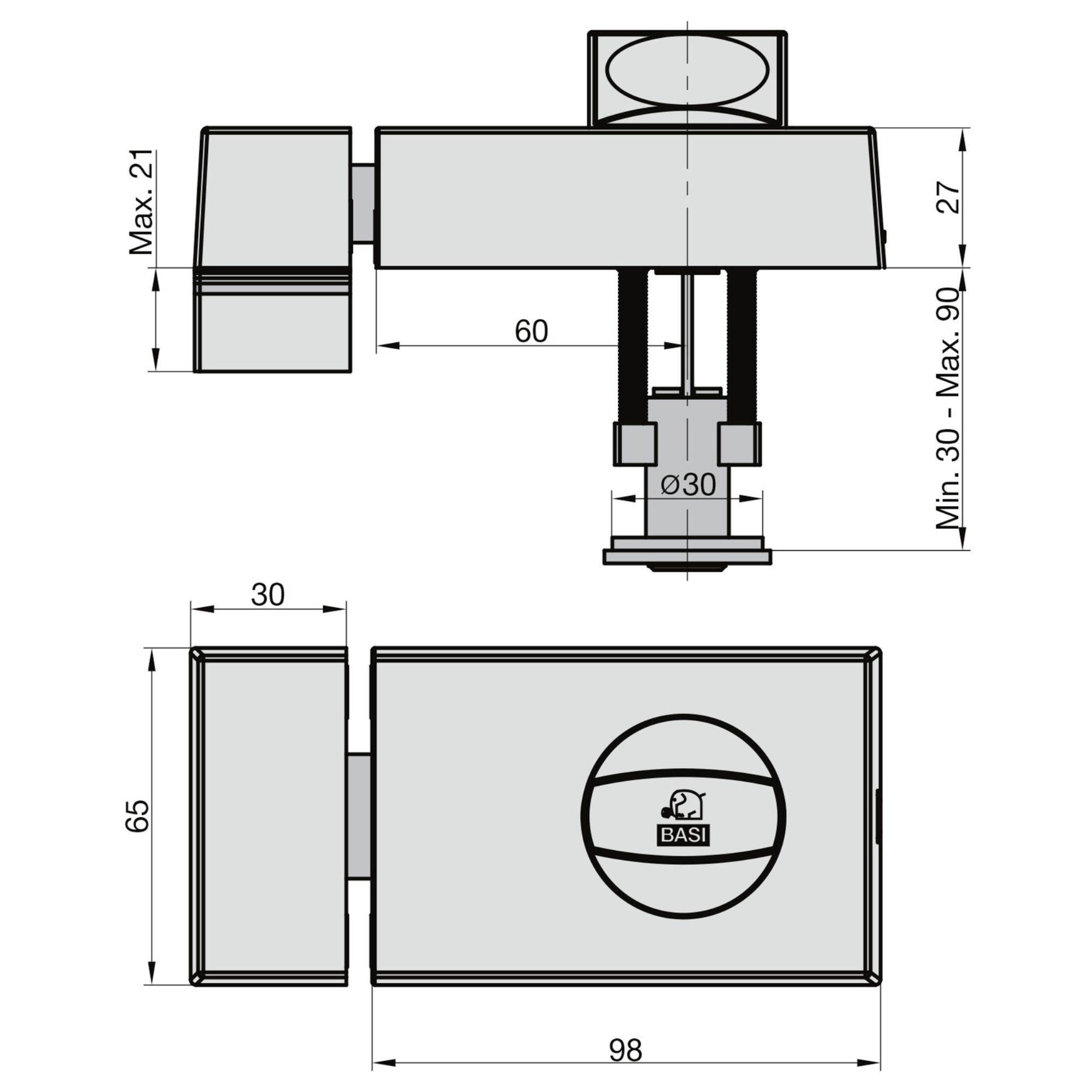

- Lock housing: Käntig / overall width: Approx. 130 mm / mandrel size: 60 mm
Technical specifications
- Product type
Additional door lock
- Dim
(L x W) 131 mm x 65 mm
- Factory colour
Silver
- Width
65 mm
- Length
131 mm
- Depth
45 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1929351 Basi 1301-0205 Additional door lock Silver
Description
The safe and effective additional door protection of the BASI brand is used primarily for front doors or entrance doors. The square additional door lock can be used for all doors that open inwards. In combination with a BASI door cylinder, the door lock offers additional security in your home. Thanks to the rotary knob, the door is quickly unlocked from the inside and thus ensures a fast escape route even in an emergency. The additional lock can be fitted with or without an external cylinder. The additional fuse is fitted to the frame and the door panel. All mounting accessories for mounting are included in the delivery. (Screws, drilling template, assembly instructions) Additional DIN door lock can be used LEFT / right. Lock housing: Käntig / overall width: Approx. 130 mm / mandrel size: 60 mm
Suitable accessories:
BASI Profile outer cylinder Part No.: V5040-0000
Additional spacer plate set Part No.: 1303-0001
This text is machine translated.
Suitable accessories:
BASI Profile outer cylinder Part No.: V5040-0000
Additional spacer plate set Part No.: 1303-0001
This text is machine translated.
Scope of delivery
- Additional door lock
- Frame plug screw
- Fitting Material
