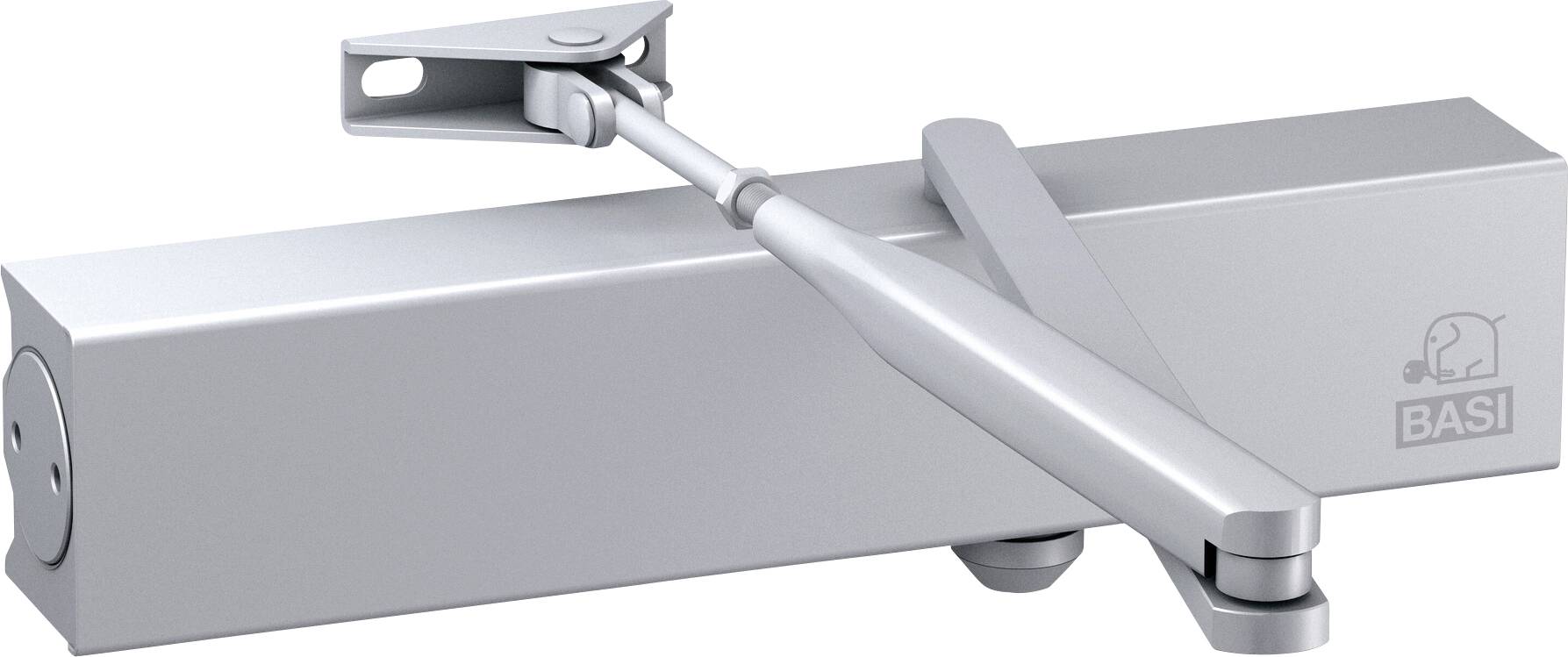

Basi 1480-0102 Door closer Silver
EAN:
Part number:
Item no:
Highlights & Details
Door closer
- BASI Door Closers for front doors, side doors, fire and smoke doors
- DIN left / DIN right suitable, stop doors up to 1250 mm wing width
- Mounting material and installation instructions included in the delivery
- Closing force according to EN 1154 (EN2/4/5)

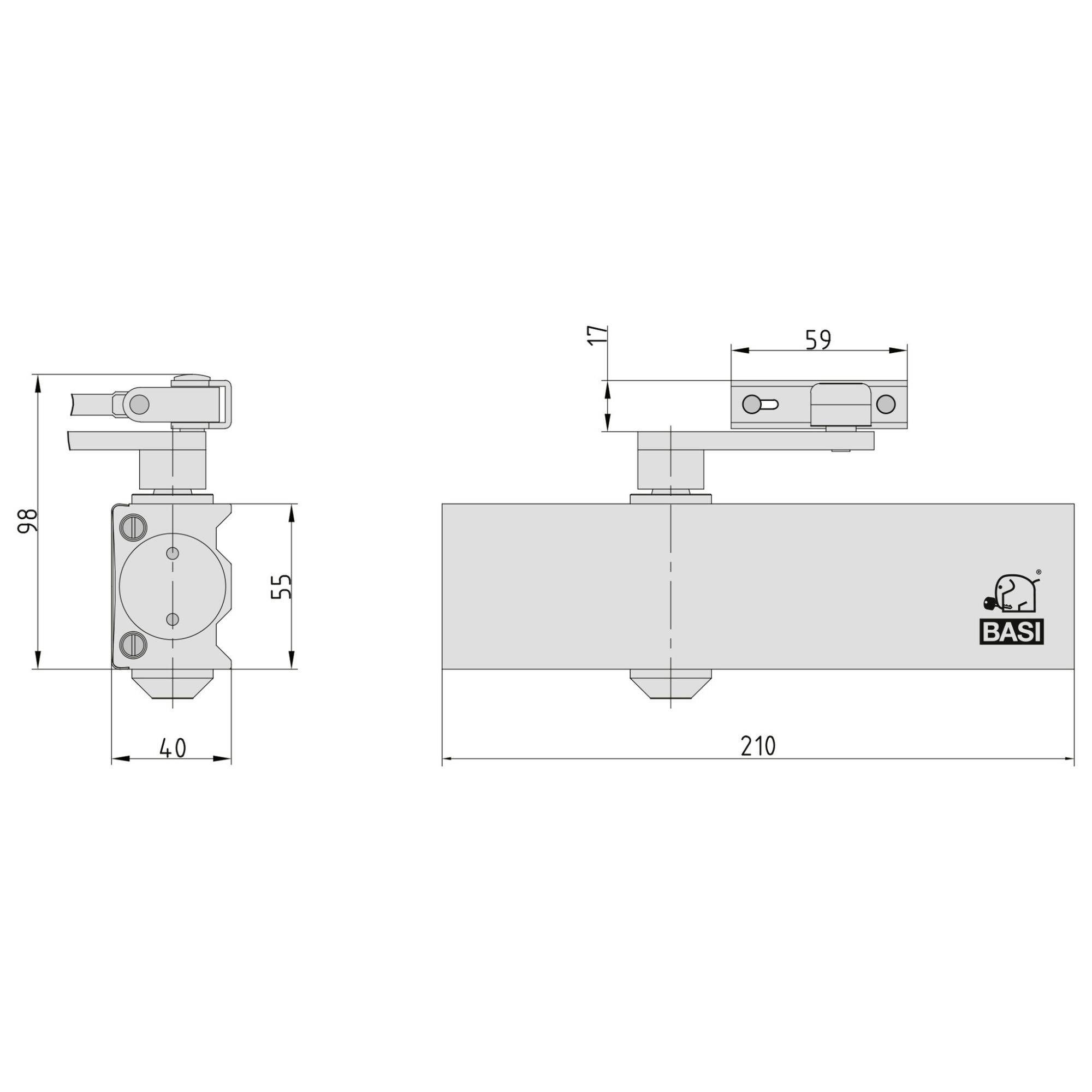

- Dimensions closer 210 x 40 x 50 mm / color. silver
Technical specifications
- Product type
Door closer
- Dim
(L x W) 210 mm x 98 mm
- Factory colour
Silver
- Width
98 mm
- Length
210 mm
- Depth
40 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1929752 Basi 1480-0102 Door closer Silver
Description
The TS 200 door closer manufactured by the BASI brand is ideal for residential, entrance and side entrance doors and is also used for interdoors or corridor doors. The overhead NO contact with linkage is suitable for single-wing stop doors up to 1250 mm. The closing force can be set variably EN 2, 4 or 5. The door closer is suitable for DIN left and right doors. The closing speed can be adjusted from the front. Material and instructions for mounting included - optional mounting plate available separately - size NO 210 x 40 x 50 mm.
