Buy Basi 5020-0000 Half Euro cylinder 10 / 30mm

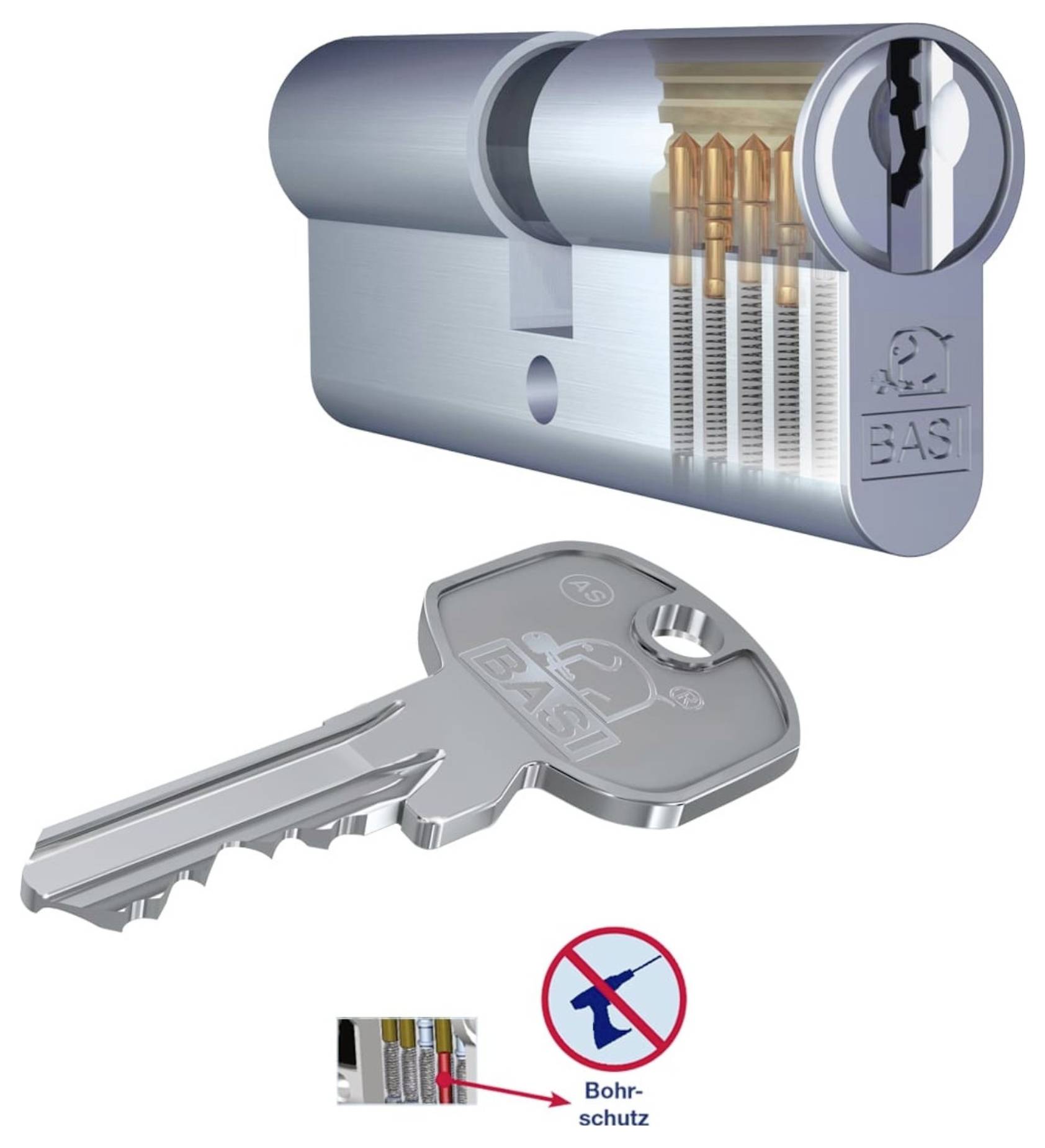

'A lock mechanism with a cutaway showing internal pins and springs. Below is a key designed to operate the lock. A symbol indicates drill protection.'

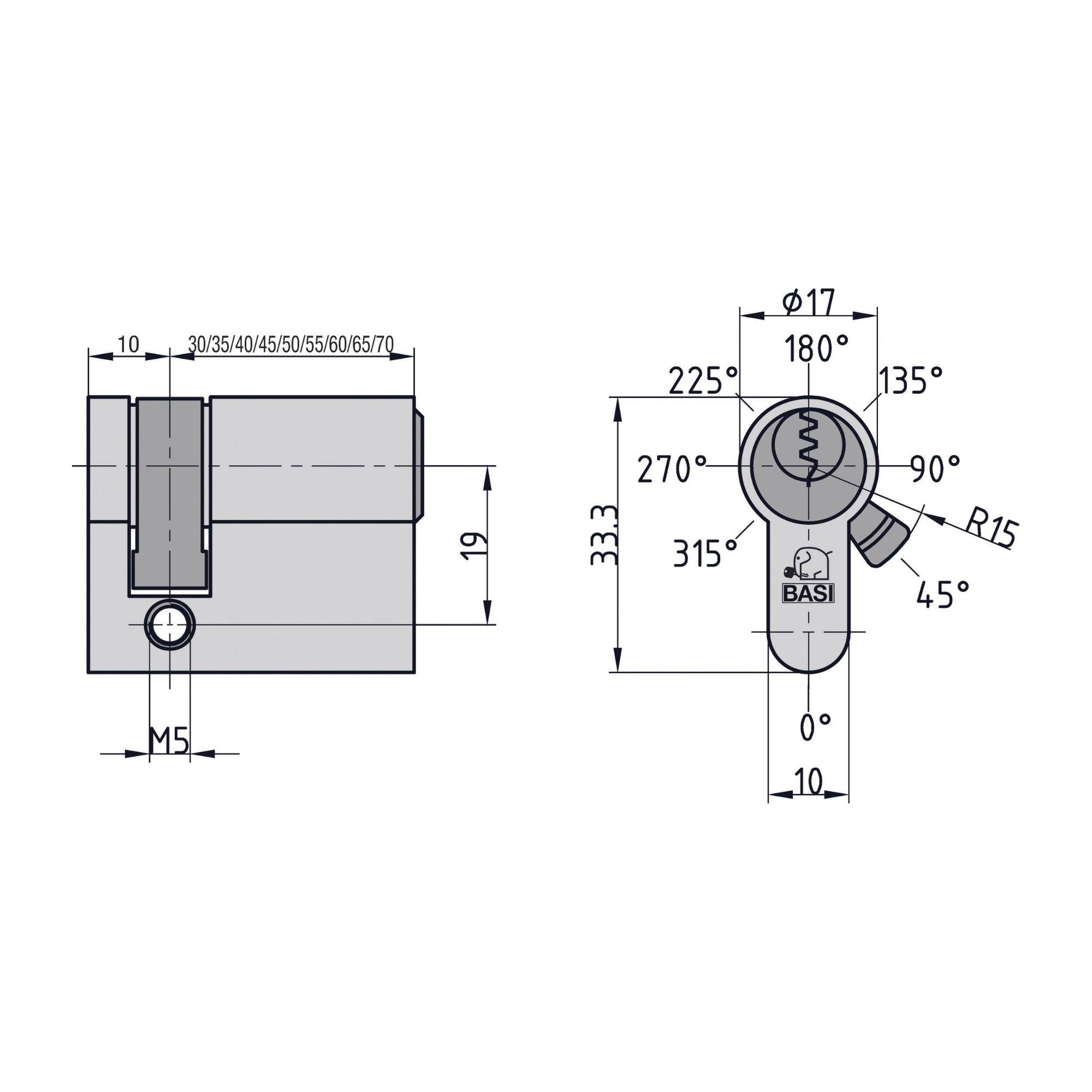

'Technical drawing of a lock cylinder showing dimensions and angles, with measurements and labels for various components.'

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Profile half cylinder

Secure profile half cylinder - for garage doors / curtain locks
With drill-out protection, makes it difficult to break or open the cylinder
Supplied with 3 keys, locking keys
Tested according to DIN 18252:2006-12
Material: Nickel-plated brass

Technical specifications

Product type: Half Euro cylinder

Cylinder dimensions: 10 / 30mm

Cylinder inside diameter: 10 mm

Cylinder (outside diameter): 30 mm

Size: 10/30 mm

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1928499 Basi 5020-0000 Half Euro cylinder 10 / 30mm

User & Safety Instructions

User & Safety Instructions 1928499 Basi 5020-0000 Half Euro cylinder 10 / 30mm

Information

Information 1928499 Basi 5020-0000 Half Euro cylinder 10 / 30mm

Description

BASI's robust and secure AS profile half-cylinder range is suitable for garage doors, switch locks, key switches or curtain locks. The lock cylinder Kern consists of 8 direct locking elements on 2 different levels and thus provides for more safety. The high-quality half cylinder is supplied with 3 keys. Due to the different closing system, only the 3 cylinder keys supplied are suitable. In addition, it is always possible to make replacement keys at the regional key service. The solid brass cylinder comes with a drill-out protection, which prevents / makes it difficult to drill out possible burglars. The BASI cylinders are manufactured with precise attention to quality. The production and testing is done according to DIN standard 18252:2006-12.
