Buy Basi 5030-0000 Euro cylinder with knob 30 / 30mm

A silver double-cylinder lock beside three matching keys, suitable for security doors and doors of various sizes.

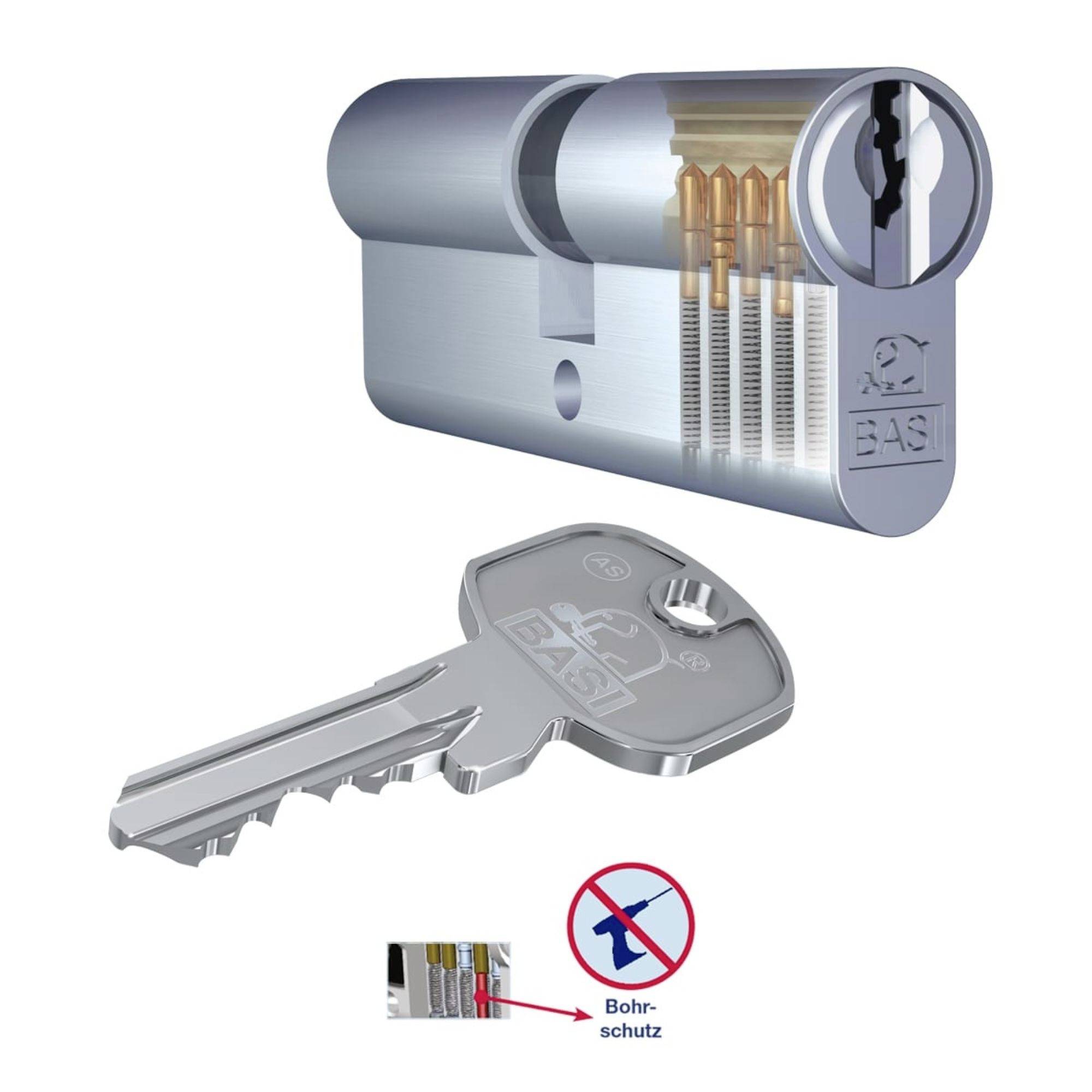

Cylinder with key, demonstrating security features such as drill protection. Primarily manufactured from polished metal.

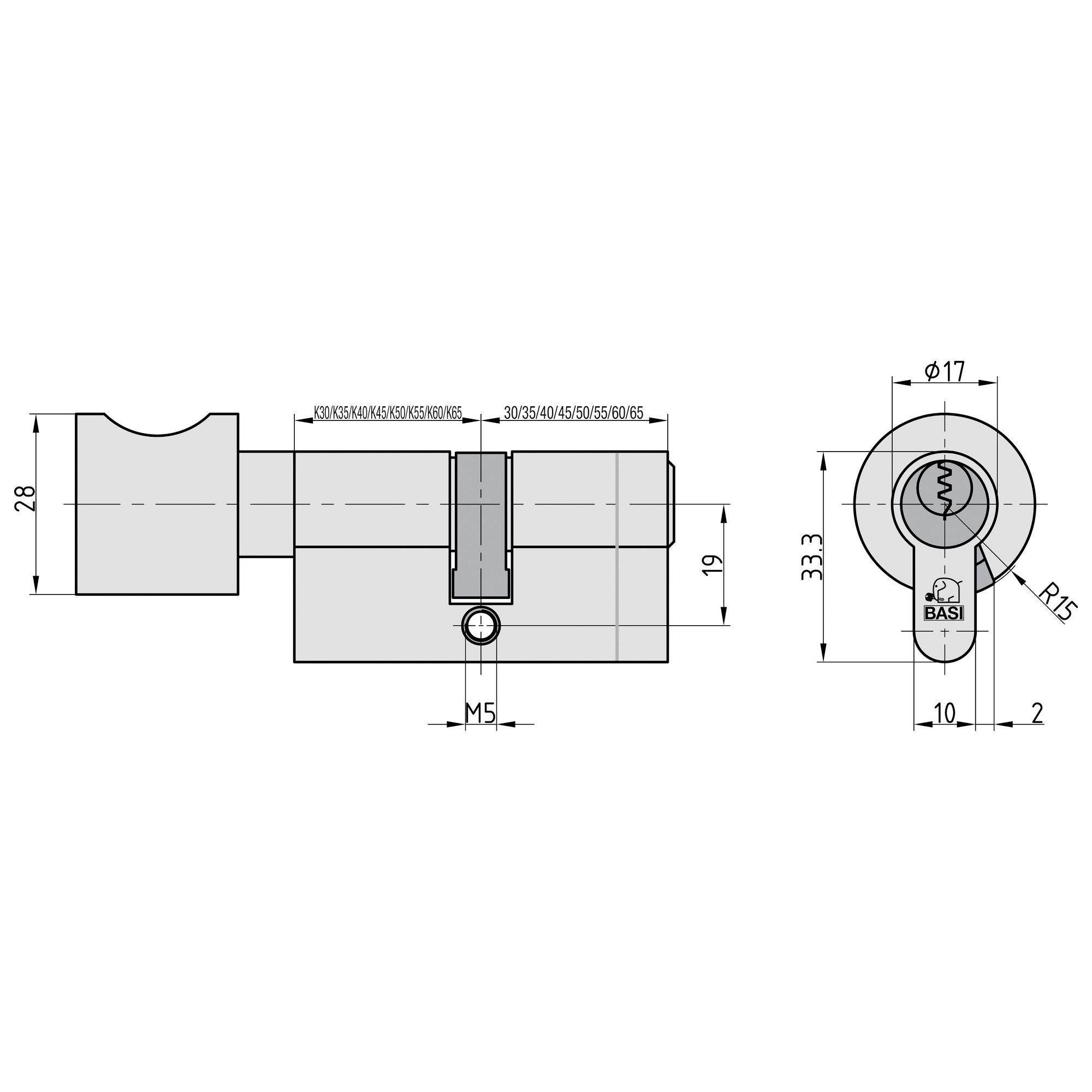

Technical drawing of a cylinder lock with dimensions and cross-sectional view. Shows detailed specifications including diameter and screw positioning.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Profile Knauf cylinder

Profile cylinder - for front doors / entrance doors
With drill-out protection, makes it difficult to break or open the cylinder
Supplied with 3 keys, locking keys
Material: Nickel-plated brass, tested according to DIN 18252:2006-12

Technical specifications

Product type: Euro cylinder with knob

Cylinder dimensions: 30 / 30mm

Cylinder inside diameter: 30 mm

Cylinder (outside diameter): 30 mm

Size: K 30/30 mm

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1928540 Basi 5030-0000 Euro cylinder with knob 30 / 30mm

User & Safety Instructions

User & Safety Instructions 1928540 Basi 5030-0000 Euro cylinder with knob 30 / 30mm

Information

Information 1928540 Basi 5030-0000 Euro cylinder with knob 30 / 30mm

Description

The safe AS cylinder range from BASI. The robust cylinder with knob is supplied with 3 keys. Due to the different closing system, only the 3 supplied keys are suitable. Of course, there is always the possibility of having the regional key service produce replacement keys. The AS cylinder can be used as an ideal lock for the entrance to the house. It is suitable as a lock for front doors or entrance doors. The door can be opened and closed at any time without a key by its one-sided rotating knob. The solid cylinder made of matt nickel-plated brass also comes with a drill-out protection, which prevents/makes it difficult to drill out possible burglars. The BASI cylinders are manufactured with the highest quality being precisely observed. Production and testing is carried out in accordance with DIN standard 18252:2006-12.

This text is machine translated.
