Buy Basi 5200-1545 Euro profile cylinder 45 / 75mm

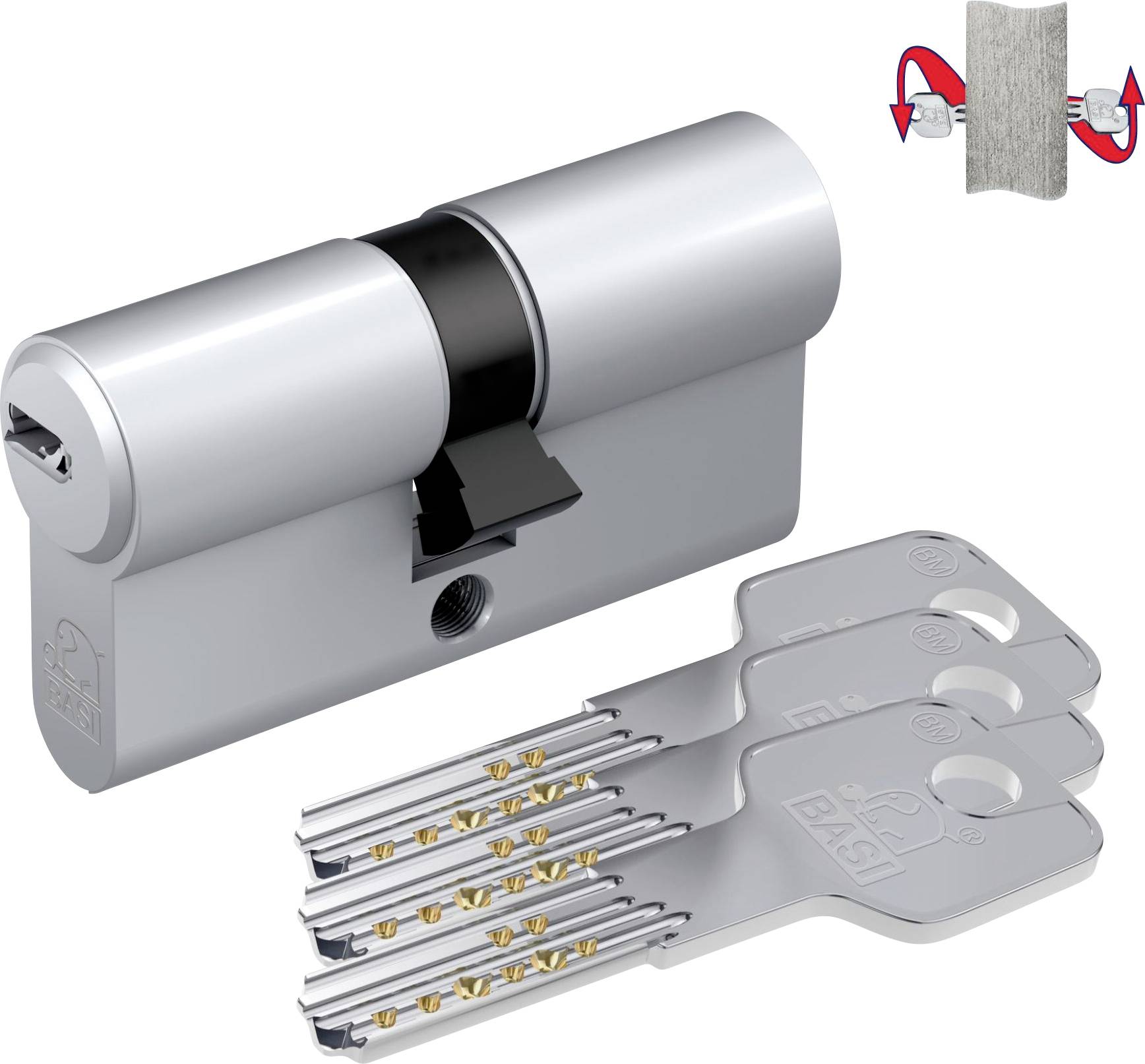

A silver cylinder lock with a black stripe is shown alongside three identical keys. An inset diagram displays the lock's rotational function.

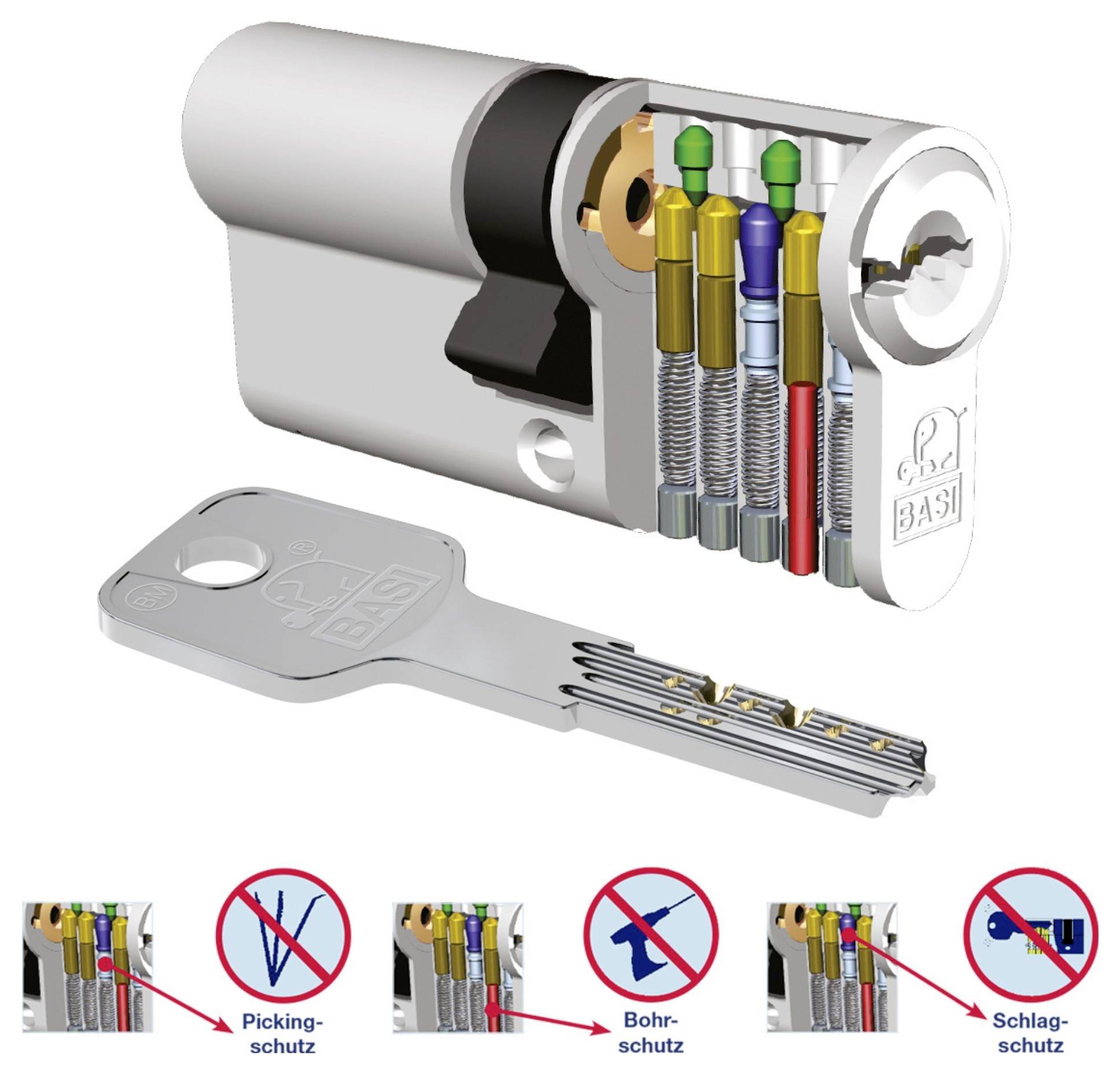

'Cross-sectioned cylinder lock showing internal mechanism with a compatible key. Bottom illustrations indicate picking and drilling resistance.'

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Profile Double cylinder

Secure profile double cylinder - for front doors / entrance doors
With drill-out protection, makes it difficult to break or open the cylinder
Supplied with 3 keys, locking keys
With emergency and hazard features.
Material: Nickel-plated brass, tested according to DIN 18252:2006-12

Technical specifications

Product type: Euro profile cylinder

Cylinder dimensions: 45 / 75mm

Cylinder inside diameter: 45 mm

Cylinder (outside diameter): 75 mm

Size: 45/75 mm

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1928741 Basi 5200-1545 Euro profile cylinder 45 / 75mm

User & Safety Instructions

User & Safety Instructions 1928741 Basi 5200-1545 Euro profile cylinder 45 / 75mm

Information

Information 1928741 Basi 5200-1545 Euro profile cylinder 45 / 75mm

Description

The safe AS profile cylinder series with emergency and danger function from BASI. The robust double cylinder is supplied with 3 keys. Due to the different closing system, only the 3 supplied keys are suitable. Of course, there is always the possibility of having the regional key service produce replacement keys. The AS double cylinder can be used as an ideal lock for the entrance to the house. It is suitable as a cylinder for front doors or entrance doors. The solid brass profile cylinder comes with a drill-out protection, which prevents / makes it difficult to drill on possible burglars. The core of the cylinder contains 5 pin feeds. The BASI cylinders are manufactured with the highest quality being precisely observed. The production and testing is done according to DIN standard 18252:2006-12.

This text is machine translated.
