Buy Basi 7529-0501 Handle door furniture

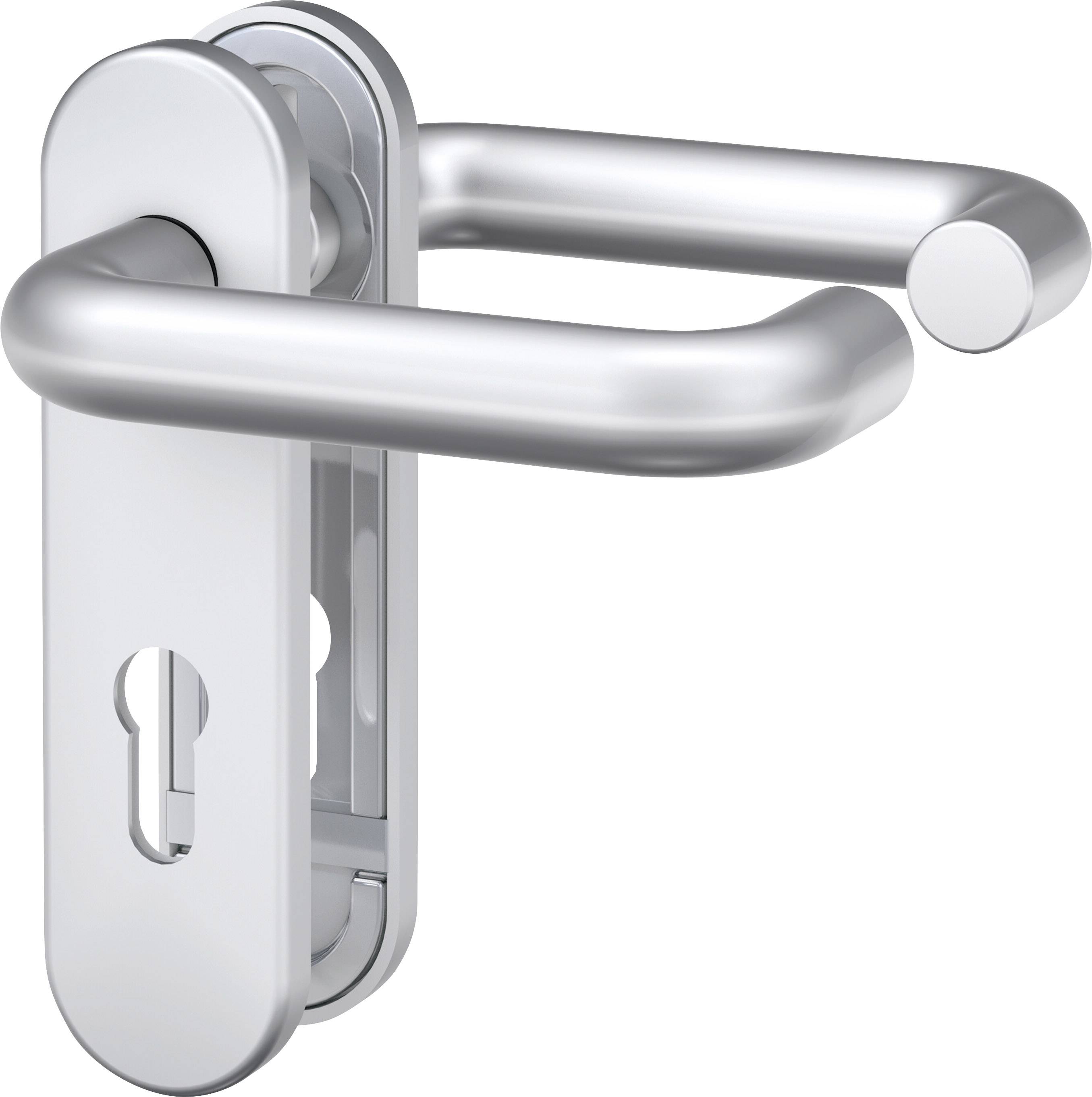

Silver door handle set with cylinder hole, consisting of two rounded handles and an oval rose plate.

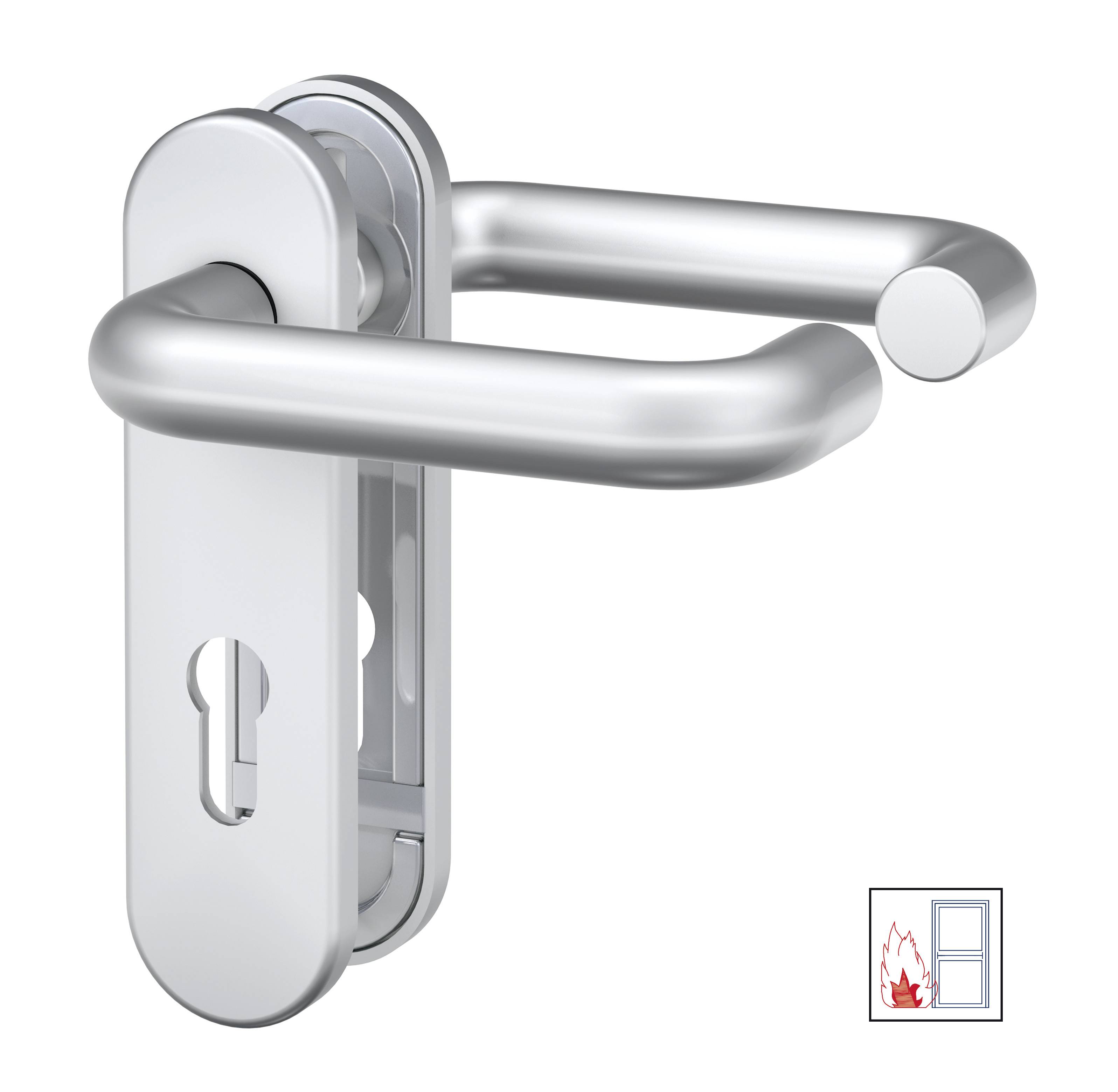

Door handle set in silver, suitable for fire and smoke-resistant doors, with integrated lock cylinder.

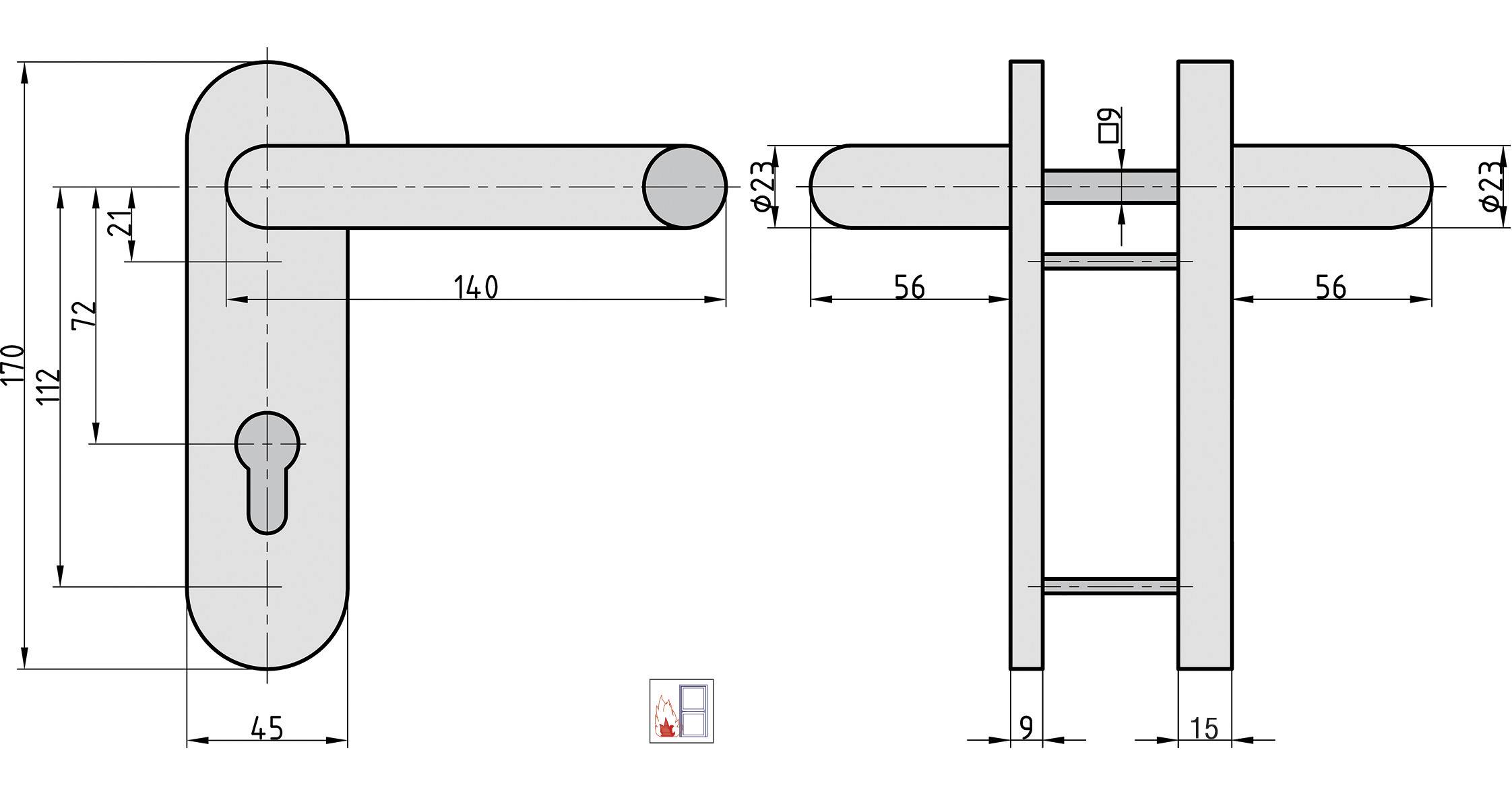

Technical drawing of a door handle with precise dimensions. Shows front and side view. Key dimensions are 170x45 mm, handle diameter 23 mm.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

SB/FS 2200K - ES1 FS-push-button protective fitting

Door fitting / fire protective fitting - door fitting
For fire doors, cellar doors, room doors and fire doors
Round short plate and steel core in the push-button, melting point at over 1000° C.
Push-button fittings - U-shaped jacks, tested according to DIN 18257
Door thicknesses 44-66 mm, distance 72 mm, square pin 9 mm

Technical specifications

Product type: Handle door furniture

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2315213 Basi 7529-0501 Handle door furniture

Description

The BASI brand classic and timeless fire protection fitting is suitable for all common fire doors, cellar doors, fire doors or also room doors with a door thickness of 44-66mm. The fitting is a U-shaped push-button fitting. The round short sign provides for a modern and unobtrusive look. Due to its steel substructure, the melting point of the individual parts is above 1000°C, which makes the fitting particularly resistant. The BASI fire protection cover can cope with daily loads without any problems. Everything is included in the delivery for a simple and precise mounting for the DIY enthusiast. The installation is child's play thanks to the accompanying instructions and mounting set. Material: Can be used optionally from aluminum F1 or stainless steel, DIN left / right, distance 72 mm, steel core in the push-button, no visible screwing.

This text is machine translated.
