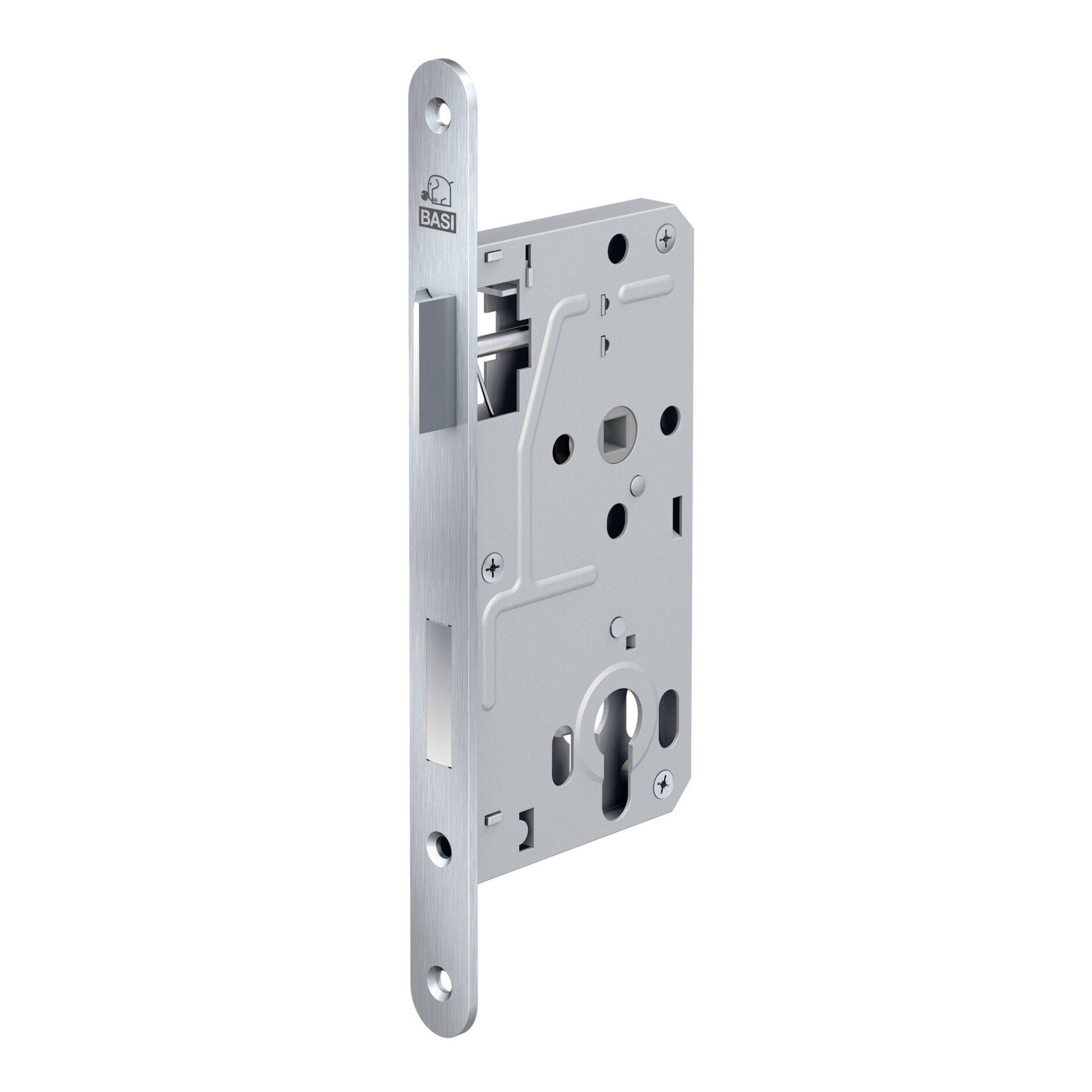

Basi 9280-5510 Room door lock Stainless steel, Aluminium
EAN:
Part number:
Item no:
Highlights & Details
Basi - room door lock - ES 928 PZW - DIN right/left - Round cuff 20 mm - stainless steel - latch/latch aluminum - tested according to EN 12209:2016-10 - 9280-5510
- Insert lock for interior doors with profile cylinders – Ideal for lockable rooms such as offices or private areas ensures greater security and privacy in everyday life

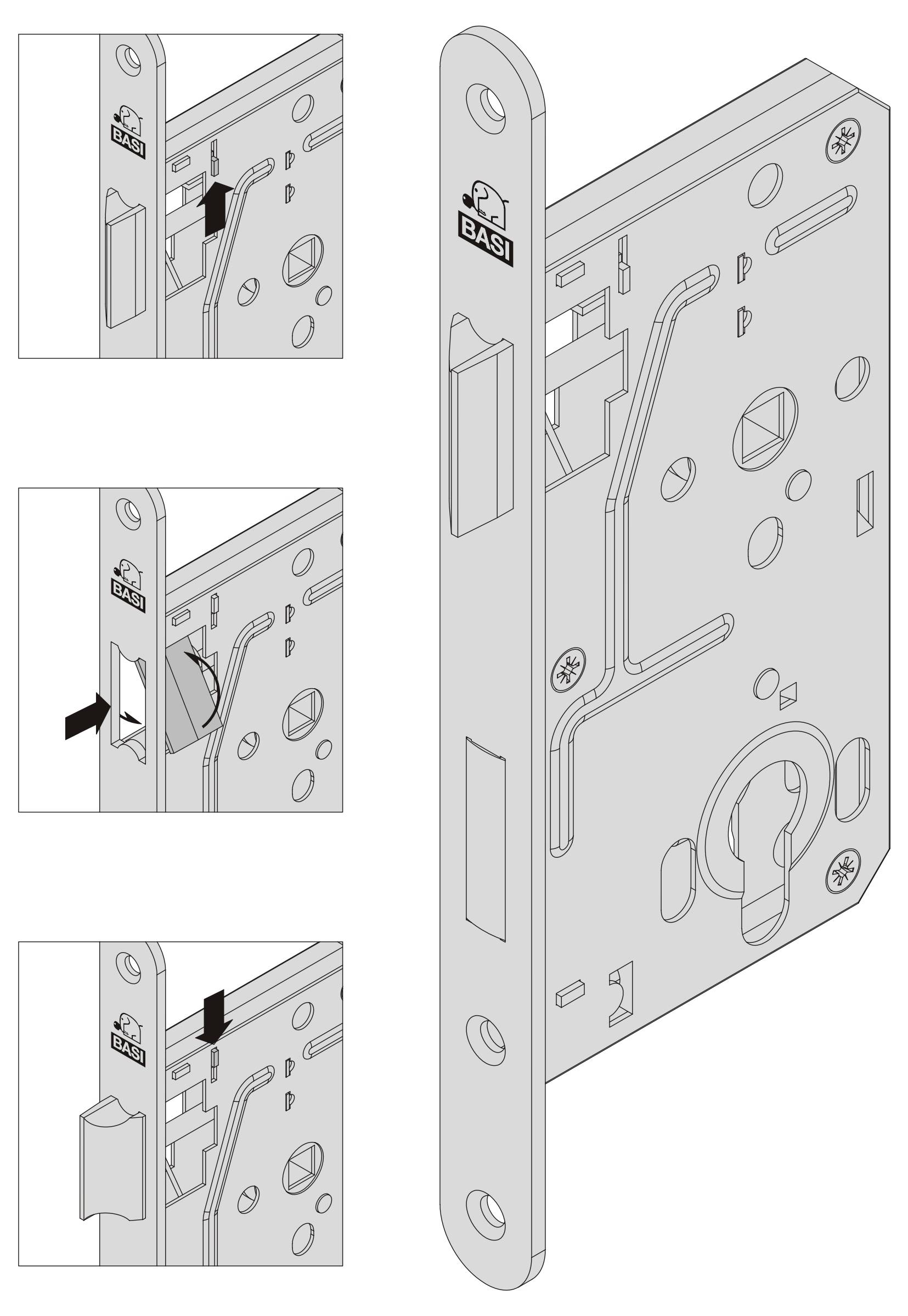

- DIN left & right can be used thanks to reversible trap. Flexible use for almost all room doors, easy and fast installation without any additional adjustments
- High quality round cuff made of stainless steel (20 mm) - durable, robust and visually appealing, fits harmoniously into modern and classic doors
- Pin dimension 55 mm, distance 72 mm, square 8 mm – suitable for many common doors, Ideal for replacement or new installation

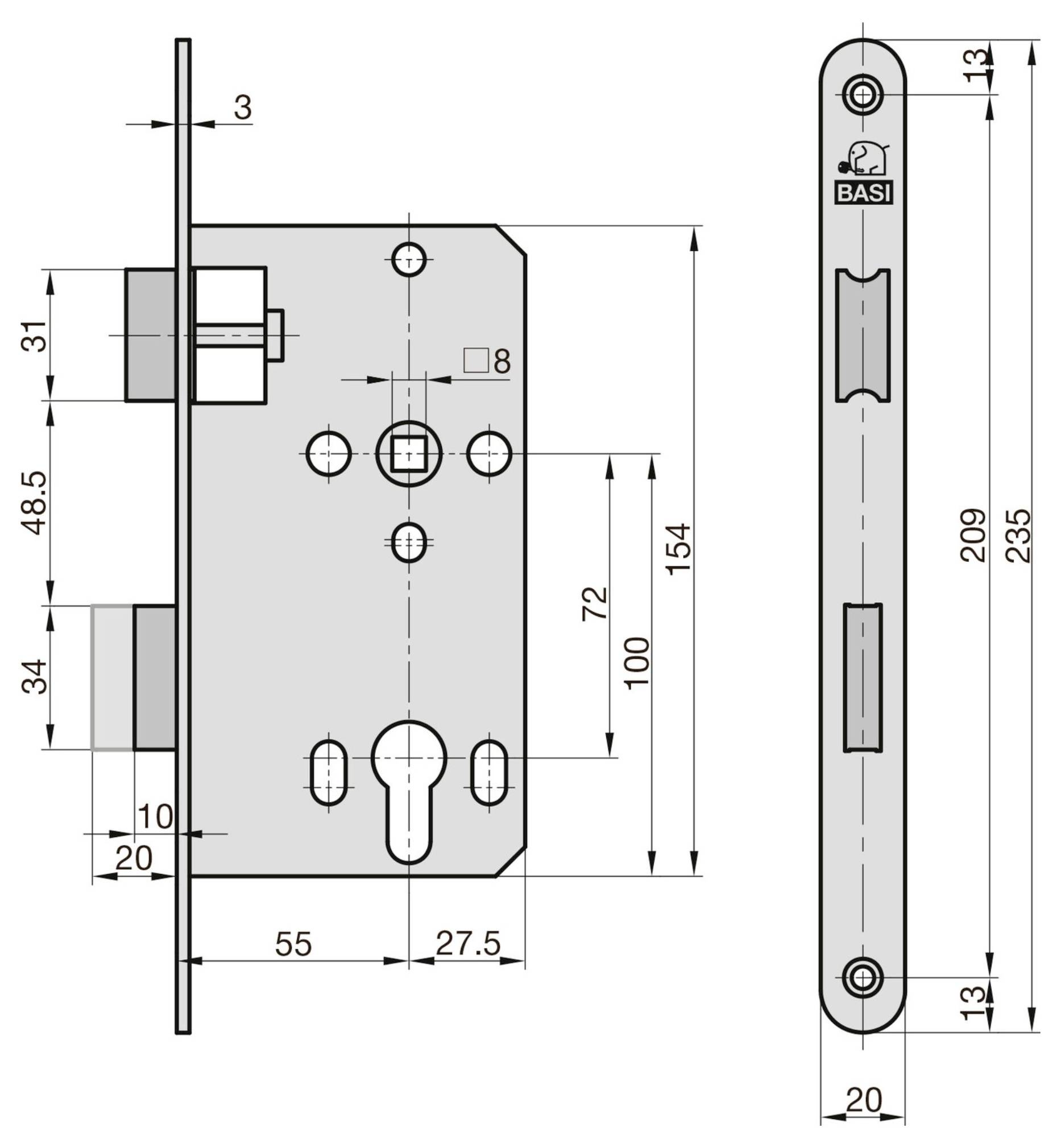

Technical specifications
- Profile cylinder punching
- Round tip 20 mm
- Material: Stainless steel
- Material trap/latch: Aluminium
- Mandrel size 55 mm
- Distance 72 mm
- Square socket 8 mm
- Product type
Room door lock
- Weight
440 g
- Factory colour
Stainless steel
Aluminium
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3804361 Basi 9280-5510 Room door lock Stainless steel, Aluminium
Description
The slide-in lock is the reliable solution for locked indoor doors.
It was developed especially for use with profile cylinders and is suitable Ideal for rooms where privacy and additional security are required - such as offices, study or private living areas. Thanks to the practical DIN left/right usability through the folding head the lock can be flexibly inserted in almost every door. The assembly is uncomplicated and ideal for both new buildings and renovations. The high-quality round cuff from stainless steel with 20 mm width provides not only an attractive appearance, but also for a long-lasting and robust use. With standardized dimensions (internal dimensions 55 mm, distance 72 mm, square 8 mm) the plug-in lock has versatile uses and is compatible with many common doors. The tested quality according to EN12209:2016 underlines the reliability in daily use.
This text is machine translated.
It was developed especially for use with profile cylinders and is suitable Ideal for rooms where privacy and additional security are required - such as offices, study or private living areas. Thanks to the practical DIN left/right usability through the folding head the lock can be flexibly inserted in almost every door. The assembly is uncomplicated and ideal for both new buildings and renovations. The high-quality round cuff from stainless steel with 20 mm width provides not only an attractive appearance, but also for a long-lasting and robust use. With standardized dimensions (internal dimensions 55 mm, distance 72 mm, square 8 mm) the plug-in lock has versatile uses and is compatible with many common doors. The tested quality according to EN12209:2016 underlines the reliability in daily use.
This text is machine translated.
