Basi 9280-5518 Room door lock Stainless steel, Aluminium
EAN:
Part number:
Item no:
Highlights & Details
Basi - room door lock - ES 928 PZW - DIN right - round cuff 20 mm - stainless steel - trap plastic - latch aluminum - tested according to EN 12209:2016-10 - 9280-5518
- Universal insert lock for room doors. Suitable for DIN left & right through reversible trap
- High quality 20 mm round cuff from stainless steel ensures modern look and accurate installation in internal doors – Ideal for renovation and new building
- Robust design with aluminum latch and latch for long-lasting, easy use in everyday life

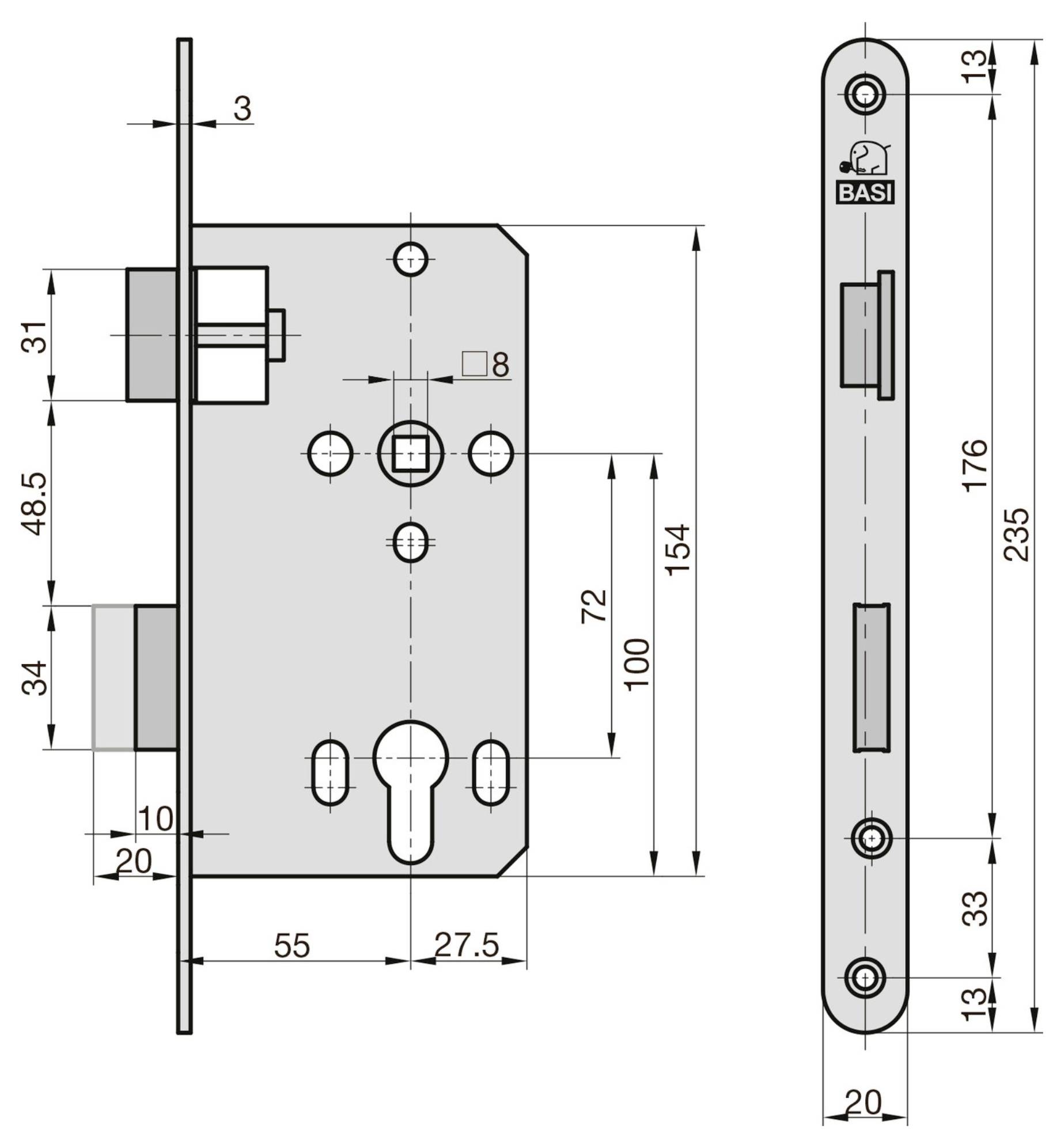

- Marking size 55 mm, distance 72 mm, square 8 mm. Suitable for common room doors and simple replacement of existing locks
- Tested quality according to EN12209:2016 including 1 keys - reliable function and safe application indoors
Technical specifications
- Profile cylinder punching
- Round cuff 20 mm, stainless steel
- Material trap: Plastic/material
- Range: Aluminium
- Mandrel size 55 mm
- Distance 72 mm
- Square socket 8 mm
- Product type
Room door lock
- Weight
432 g
- Factory colour
Stainless steel
Aluminium
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3804359 Basi 9280-5518 Room door lock Stainless steel, Aluminium
Description
The slide-in lock is a reliable and versatile solution for all common indoor doors.
Because of its well thought-out design and the use of durable materials, the Ideal lock is suitable for daily use in living rooms, offices or commercial objects. A special feature is the universal applicability. Thanks to the folding head, the lock can be used both for doors attached to DIN right as well as DIN left. This simplifies not only the selection but also the mounting considerably.
The high-quality round tulip made of stainless steel with a width of 20 mm provides a modern look and enables a clean integration into the door. At the same time, aluminum traps and bars ensure reliable and smooth-running function. With its standardized dimensions – 55 mm pitch, 72 mm distance and 8 mm square – the lock is perfectly suited to standard room doors and can be easily replaced or retrofitted. The slide-in lock is delivered including key and is immediately ready for use.
This text is machine translated.
Because of its well thought-out design and the use of durable materials, the Ideal lock is suitable for daily use in living rooms, offices or commercial objects. A special feature is the universal applicability. Thanks to the folding head, the lock can be used both for doors attached to DIN right as well as DIN left. This simplifies not only the selection but also the mounting considerably.
The high-quality round tulip made of stainless steel with a width of 20 mm provides a modern look and enables a clean integration into the door. At the same time, aluminum traps and bars ensure reliable and smooth-running function. With its standardized dimensions – 55 mm pitch, 72 mm distance and 8 mm square – the lock is perfectly suited to standard room doors and can be easily replaced or retrofitted. The slide-in lock is delivered including key and is immediately ready for use.
This text is machine translated.
Features
- DIN right
