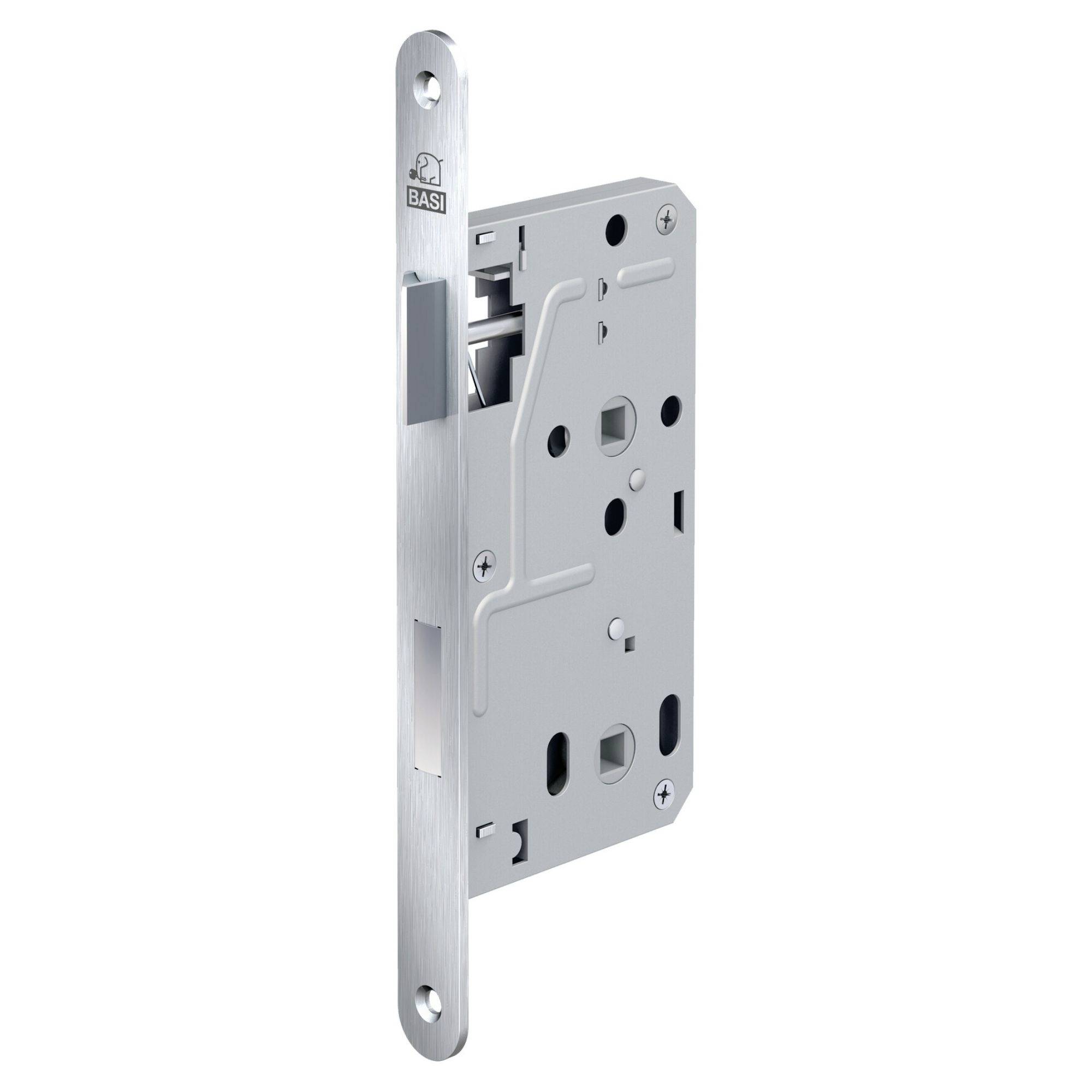

Basi 9290-5510 Room door lock Stainless steel, Aluminium
EAN:
Part number:
Item no:
Highlights & Details
Basi - Room door lock - ES 929 BATHROOM - DIN right/left - Round cuff 20 mm - Stainless steel - Trap/latch aluminum - tested according to EN 12209:2016-10 - 9290-5510
- Ideal for indoor and bathroom doors - Insert lock with BATHROOM hole, perfect for WC and bathroom doors in private or commercial premises
- Flexible use - Suitable for DIN left and right thanks to folding head - quick mounting without modification or additional parts
- High-quality stainless steel round cuff: 20 mm round tulip ensures modern look, clean installation and high durability in daily use
- Reliable mechanism: Closed lock box protects against dust and dirt and provides for a permanent smooth function
Technical specifications
- BATH hole
- Round cuff 20 mm, stainless steel
- Material trap/latch: Aluminium
- Mandrel size 55 mm
- Distance 78 mm
- Square socket 8 mm
- Product type
Room door lock
- Weight
452 g
- Factory colour
Stainless steel
Aluminium
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3804364 Basi 9290-5510 Room door lock Stainless steel, Aluminium
Description
The slide in lock is the practical and reliable solution for interior and bathroom doors.
Thanks to the special BATHROOM perforation, it is suited for WC and room doors and offers a secure and comfortable locking in everyday life. The high-quality round cuff from stainless steel (20 mm) gives the lock a modern look and enables a clean integration in different door designs.

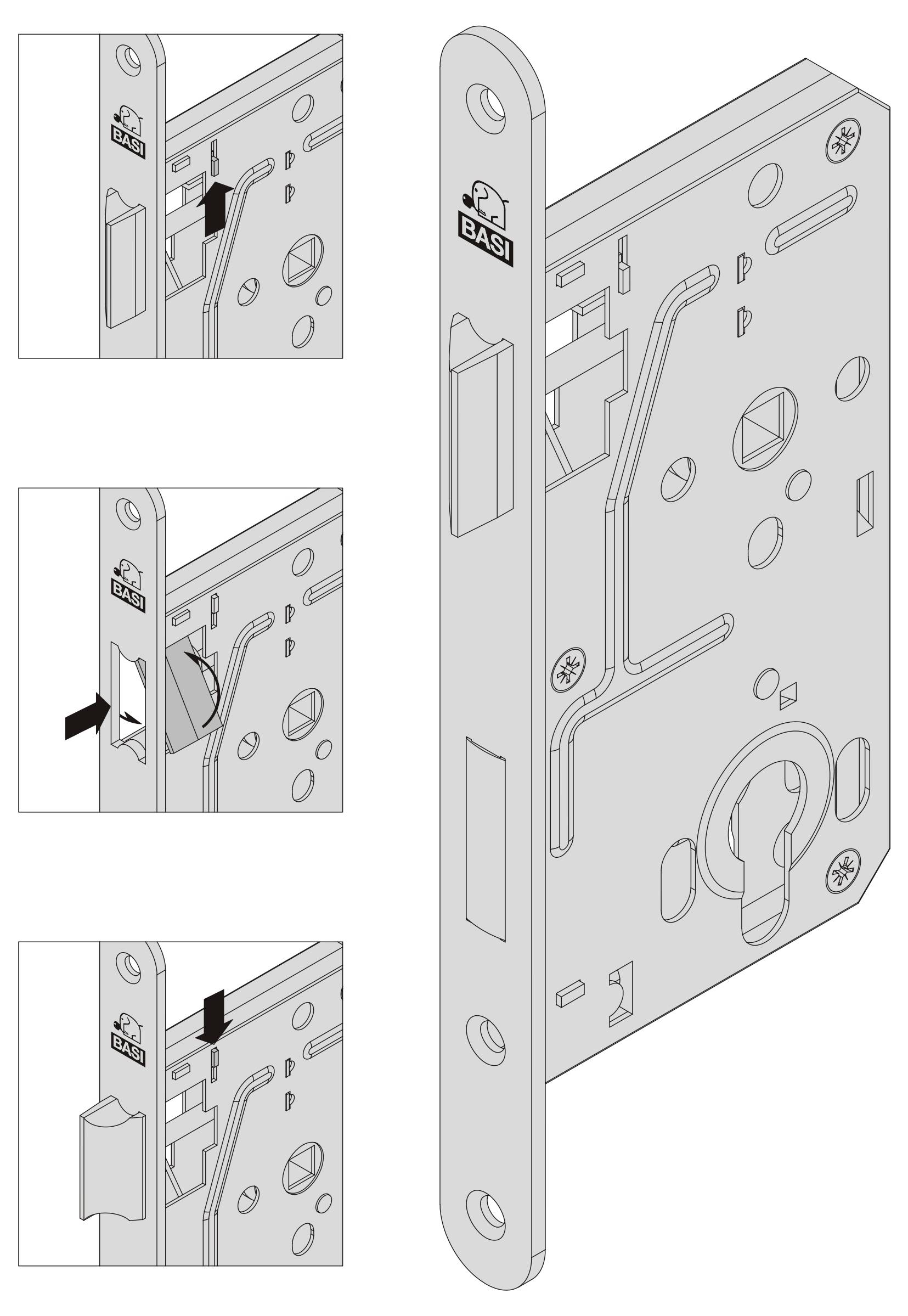

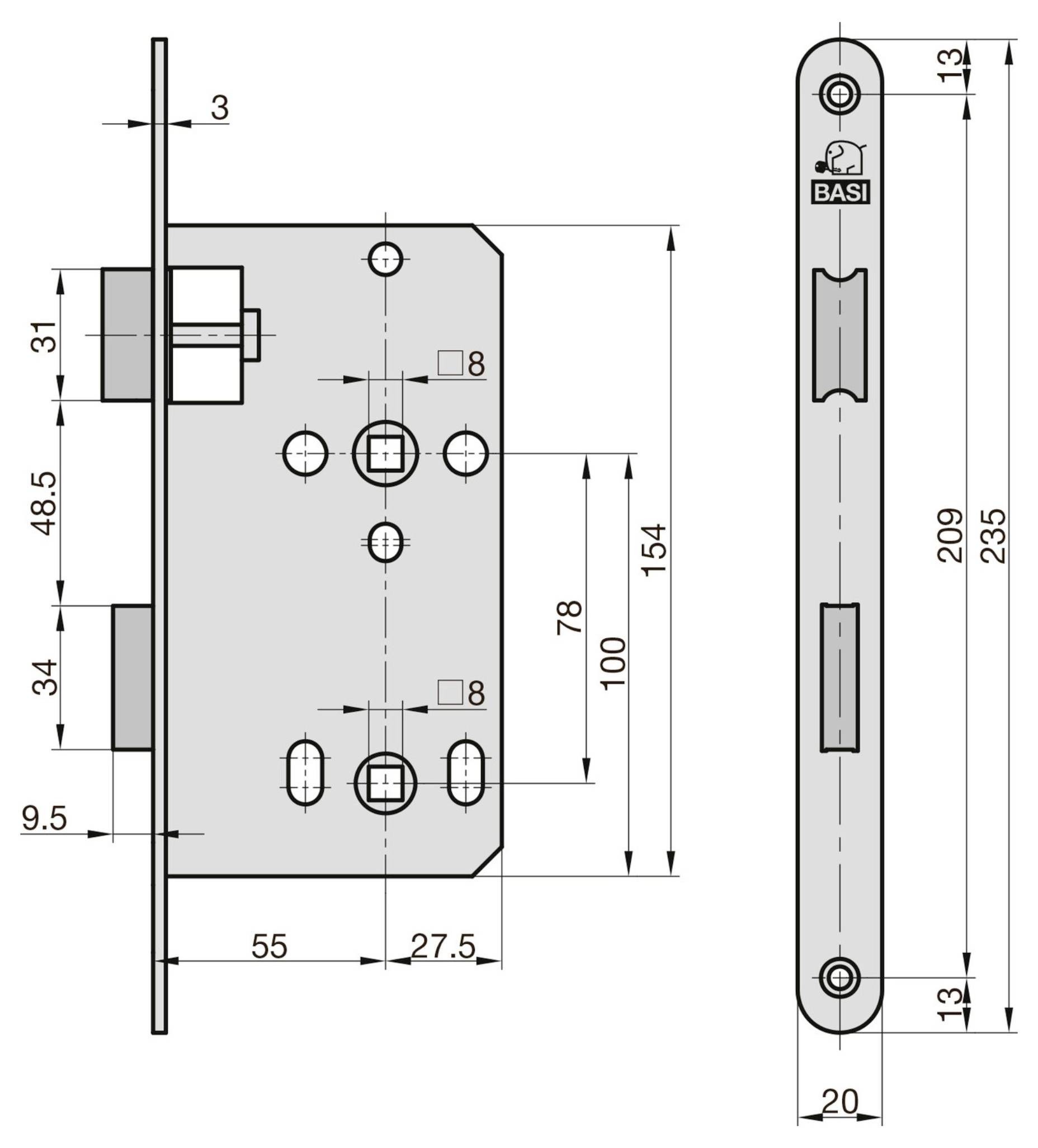

At the same time, the robust structure provides for a long life. By the turnable fall head, the lock can be used flexibly for DIN left and right. This considerably simplifies the installation and makes it versatile – Ideal for renovations or new buildings. With dimensions according to the standard (center hole 55 mm, distance 78 mm, square 8 mm) the lock fits into many standard room doors. In addition, it is tested according to EN12209:2016 and stands for tested quality and reliability.
This text is machine translated.
