Basi 9350-5530 Room door lock Silver
EAN:
Part number:
Item no:
Highlights & Details

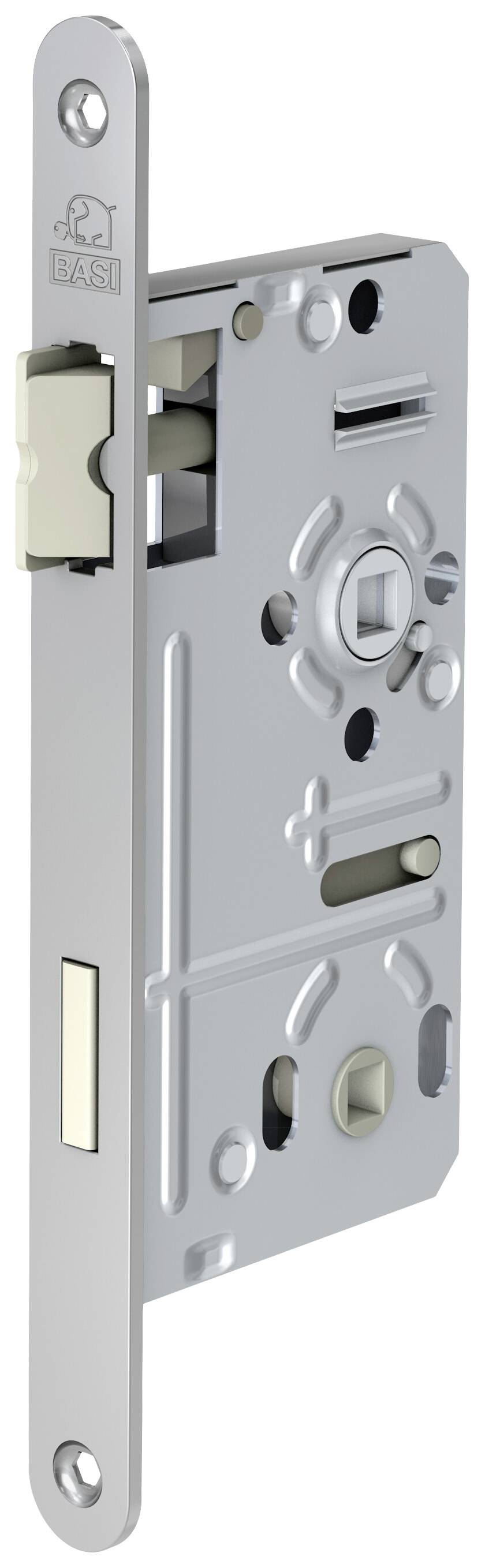

Basi ES 935 R/L Bathroom- insert lock DIN right/left Room door lock 9350-5530
- Room door lock BATHROOM with rotating/folding trap
- DIN right and DIN left can be used

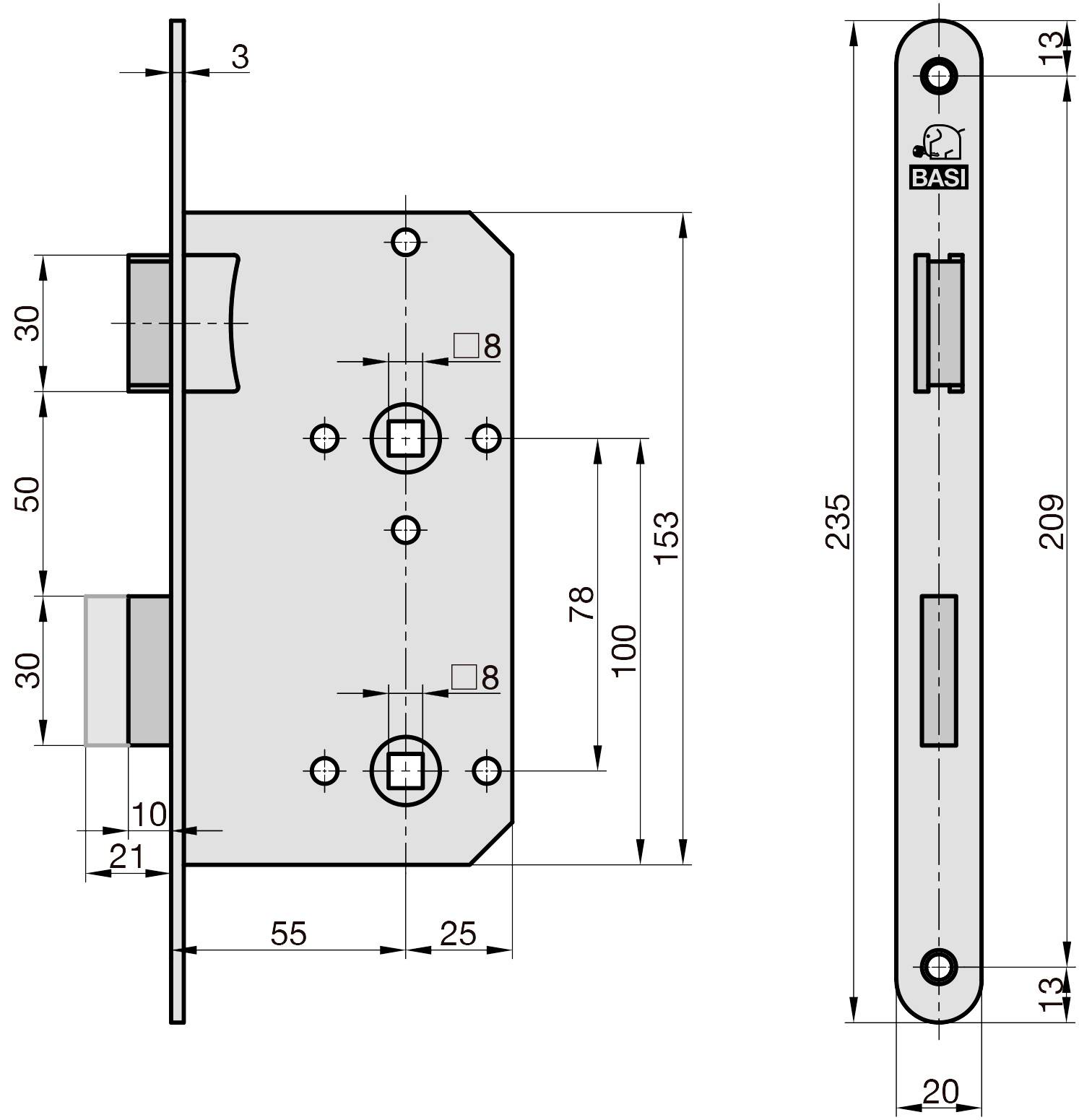

- 55 mm punch length, distance: 78 mm, square hole inside: 8 mm, cuff: 20 x 235 mm
- Metal latch and latch ensure longevity, metal cuff painted in nickel silver
Technical specifications
- Product type
Room door lock
- Weight
364 g
- Dim
(L x W) 235 mm x 80 mm
- Factory colour
Silver
- Width
80 mm
- Length
235 mm
- Depth
20 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3028845 Basi 9350-5530 Room door lock Silver
Description
The Basi brand room door lock is suitable for all common interior doors (wooden doors) that are to be fitted with a toilet lock.
A particular highlight is the rotating latch, with which you can change the direction of the stopper in a jiffy. The plug-in lock has a pin width of 55 mm and a distance of 78 mm. The diameter of the square socket is 8 mm. Trap, latch and cuff are made of metal and then provide the installed materials for a long durability.
About rotating the trap: To turn the trap, simply turn the lock upside down so that the safety lever does not block the trap any longer. Afterwards, simply slide the latch back and turn it 180° degrees. The castle trap jumps out and the conversion is complete.
This text is machine translated.
A particular highlight is the rotating latch, with which you can change the direction of the stopper in a jiffy. The plug-in lock has a pin width of 55 mm and a distance of 78 mm. The diameter of the square socket is 8 mm. Trap, latch and cuff are made of metal and then provide the installed materials for a long durability.
About rotating the trap: To turn the trap, simply turn the lock upside down so that the safety lever does not block the trap any longer. Afterwards, simply slide the latch back and turn it 180° degrees. The castle trap jumps out and the conversion is complete.
This text is machine translated.
Features
- Trap / bar metal
- Nickel-silver paint
