Basi 9509-0001 Elbow lock bracket
EAN:
Part number:
Item no:
Highlights & Details
Basi repair angle closing plate RWS 300 - 40 mm
- Safety cover plate for doors that have fallen overCovered damage to the door frameEight screw holesCan be used for DIN right/left
Technical specifications
- Material: Steel, galvanized surface
- Product type
Elbow lock bracket
- Dim
(L x W) 300 mm x 40 mm
- Width
40 mm
- Length
300 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2792978 Basi 9509-0001 Elbow lock bracket
Description

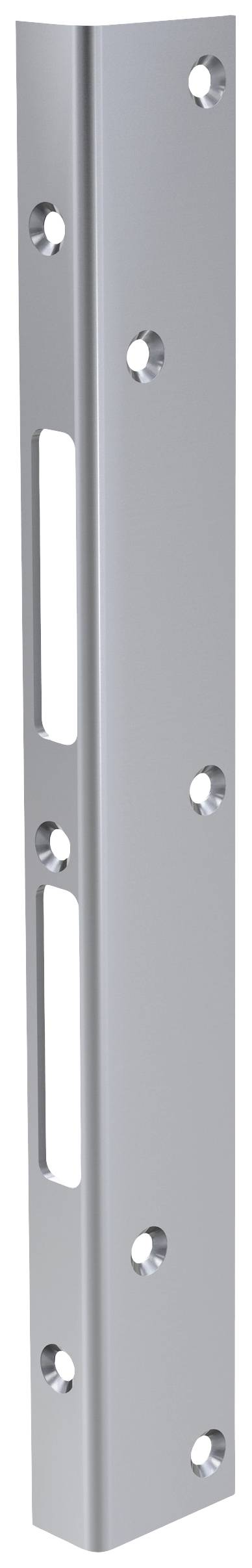

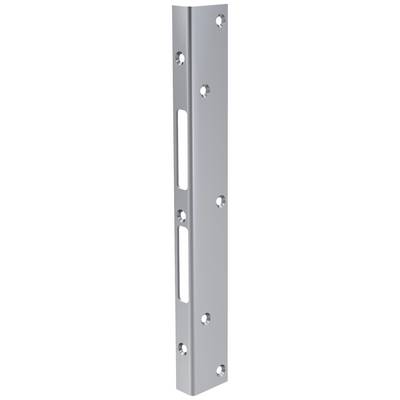

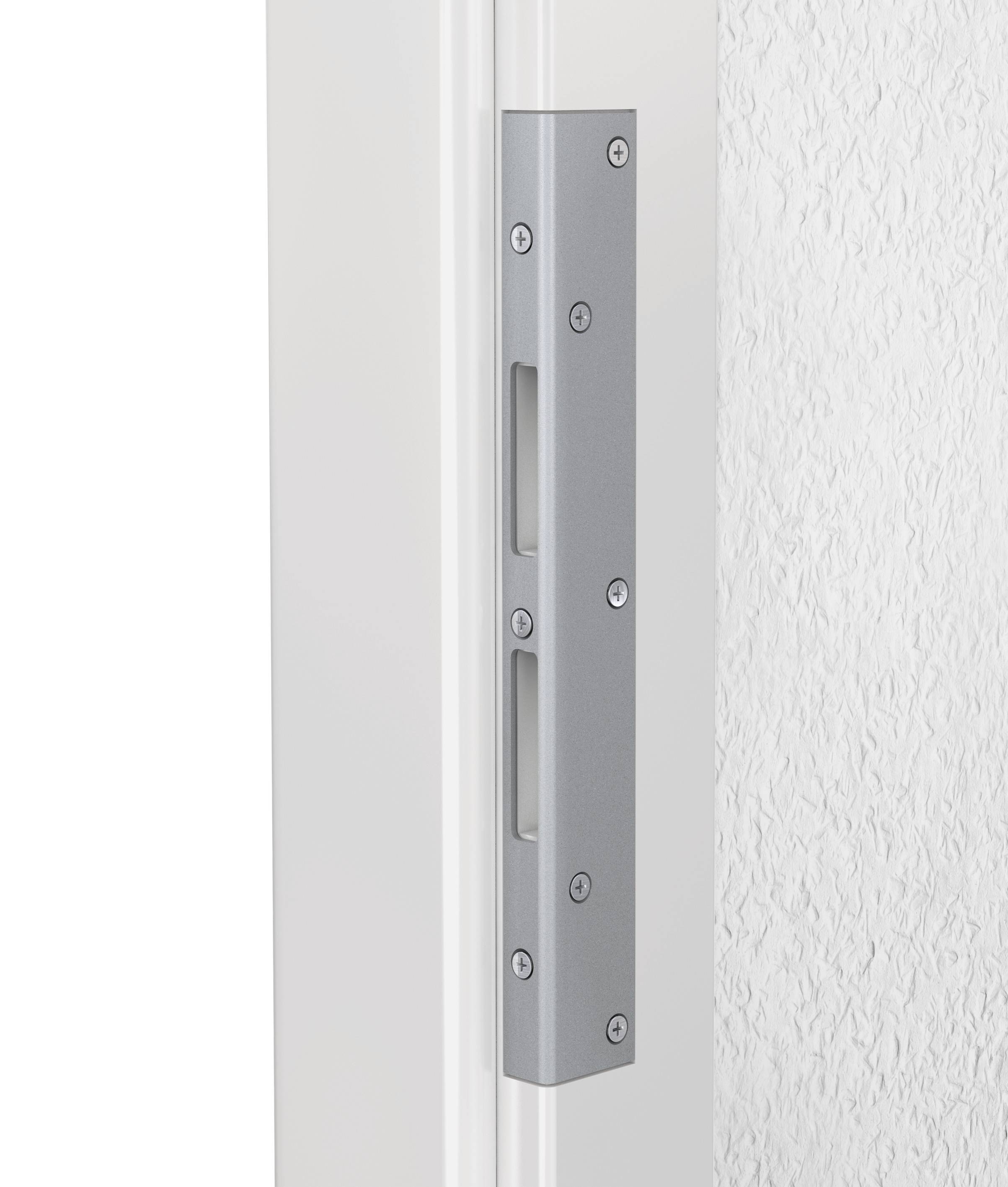

The repair angle lock plate of the brand Basi is the ideal solution, in order to cover the resulting damages on overfolded doors. Damage caused by re-equipping on the wooden door can be easily covered by the angle locking plate. The repair of safety lock plate is made of galvanized steel and comes in angular/angular design. It can be used universally on DIN right as well as DIN left-hand door frames. Thanks to the many screw-joints, the repair closure plate holds tightly to your frame and at the same time offers a very long life.
This text is machine translated.
This text is machine translated.
Features

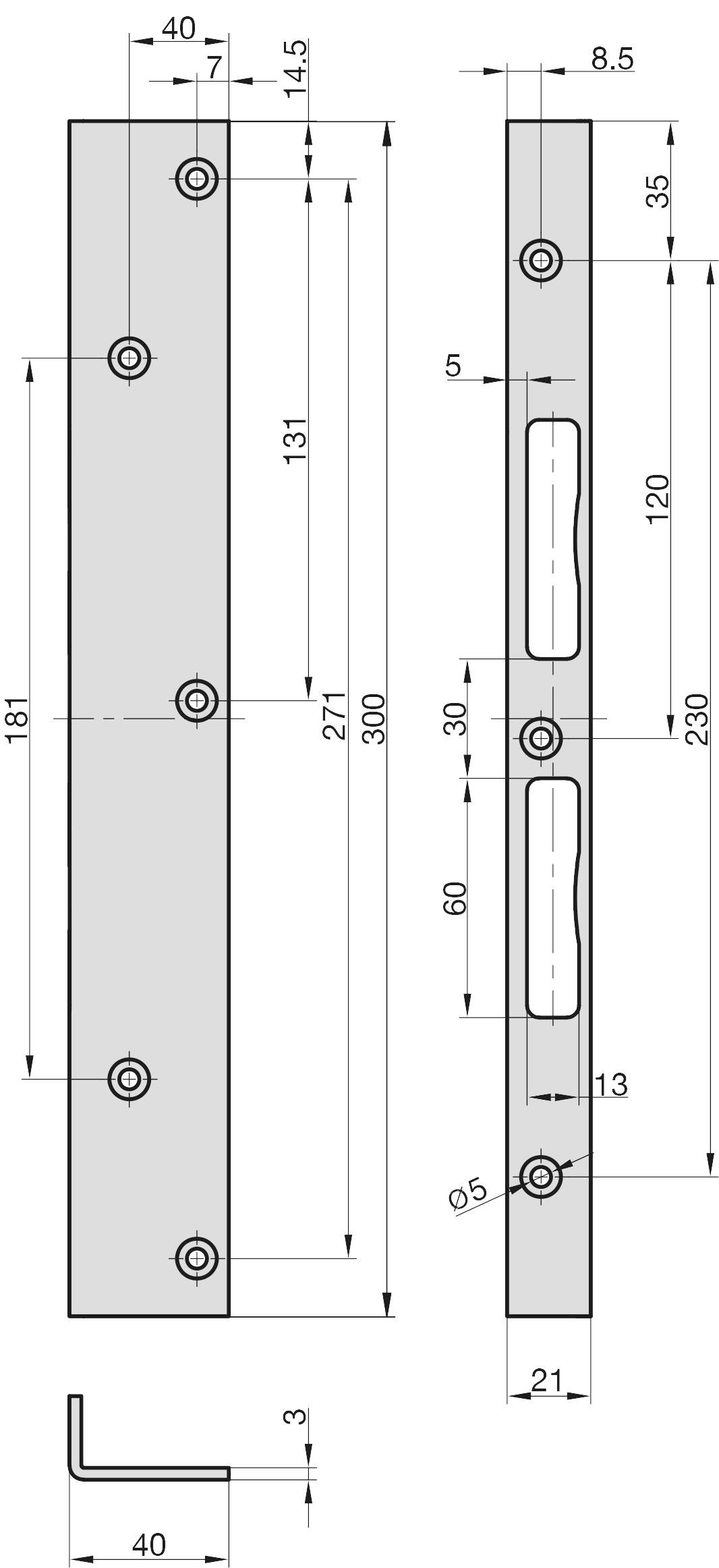

- Dimensions: 300 x 40 x 21 x 3 mm = total length 300 mm, width 40 mm, closing side 21 mm, sheet thickness 3 mmThanks to the eight screw-holes, it is very stable and at the same time has a very long lifeDelivery: Without anchoring or screws.
Scope of delivery
- 1 x angled safety lock plate without mounting screws.
