Basi 9585-3016 Glass door lock Silver
EAN:
Part number:
Item no:
Highlights & Details
Plug-in pipe frame lock
- Push-in lock with for profile doors / tubular frame doors

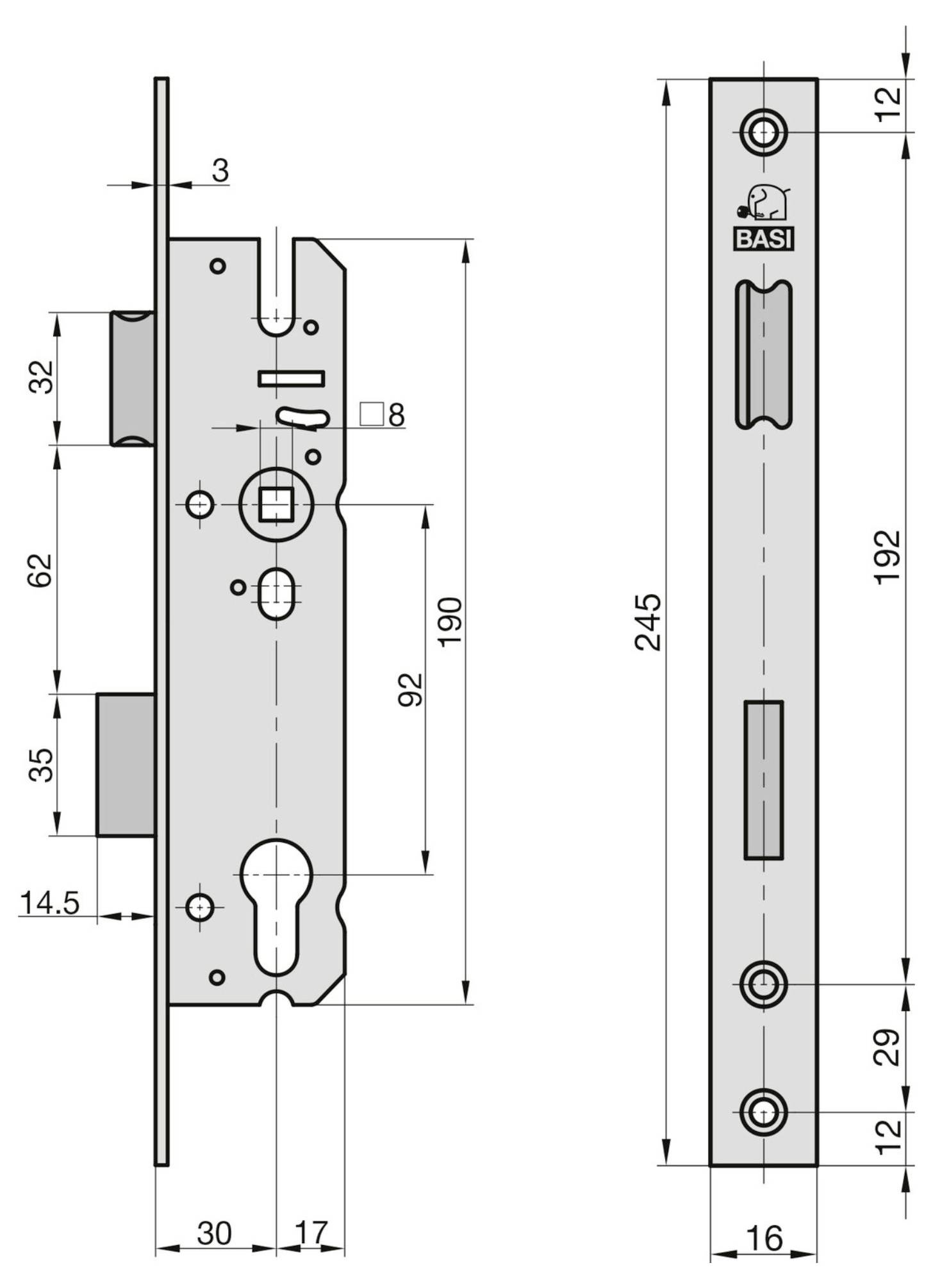

- Distance: 92 mm, square: 8 mm - cuff in 16mm or 24 mm mandrel dimension of 25 -40 mm

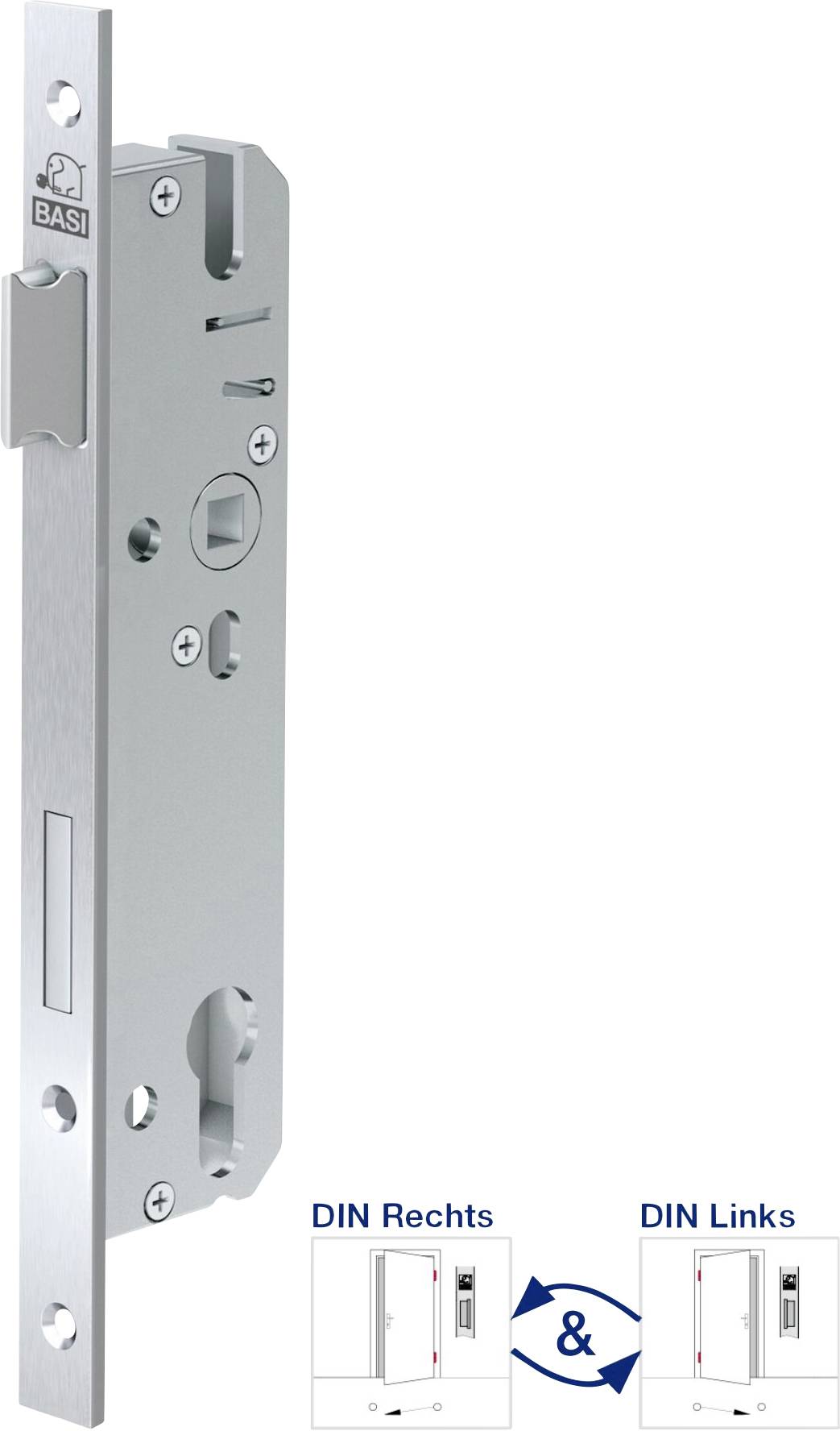

- DIN left / right can be used, bar 1-speed
- Material: Stainless steel stem, nickel-plated trap/latch
- Tested according to DIN 18251-2, class 1
Technical specifications
- Product type
Glass door lock
- Dim
(L x W) 240 mm x 45 mm
- Factory colour
Silver
- Width
45 mm
- Length
240 mm
- Depth
24 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1929512 Basi 9585-3016 Glass door lock Silver
Information
Information 1929512 Basi 9585-3016 Glass door lock Silver
Description
The high-quality push-in pipe frame lock with kitted stem can be installed in profile and frame doors made of metal, plastic or with glass insert. The lock is suitable for DIN left / right opening doors. The plug-in lock is characterized by its high-quality stem made of stainless steel and the simple mounting by standardized lock holes according to DIN 18251. Further details: Mandrel size: Available from 25 to 40 mm, distance: 92 mm, square: 8 mm, cuff 16 /24 mm angular design.
This text is machine translated.
This text is machine translated.
Features
- Stainless steel
