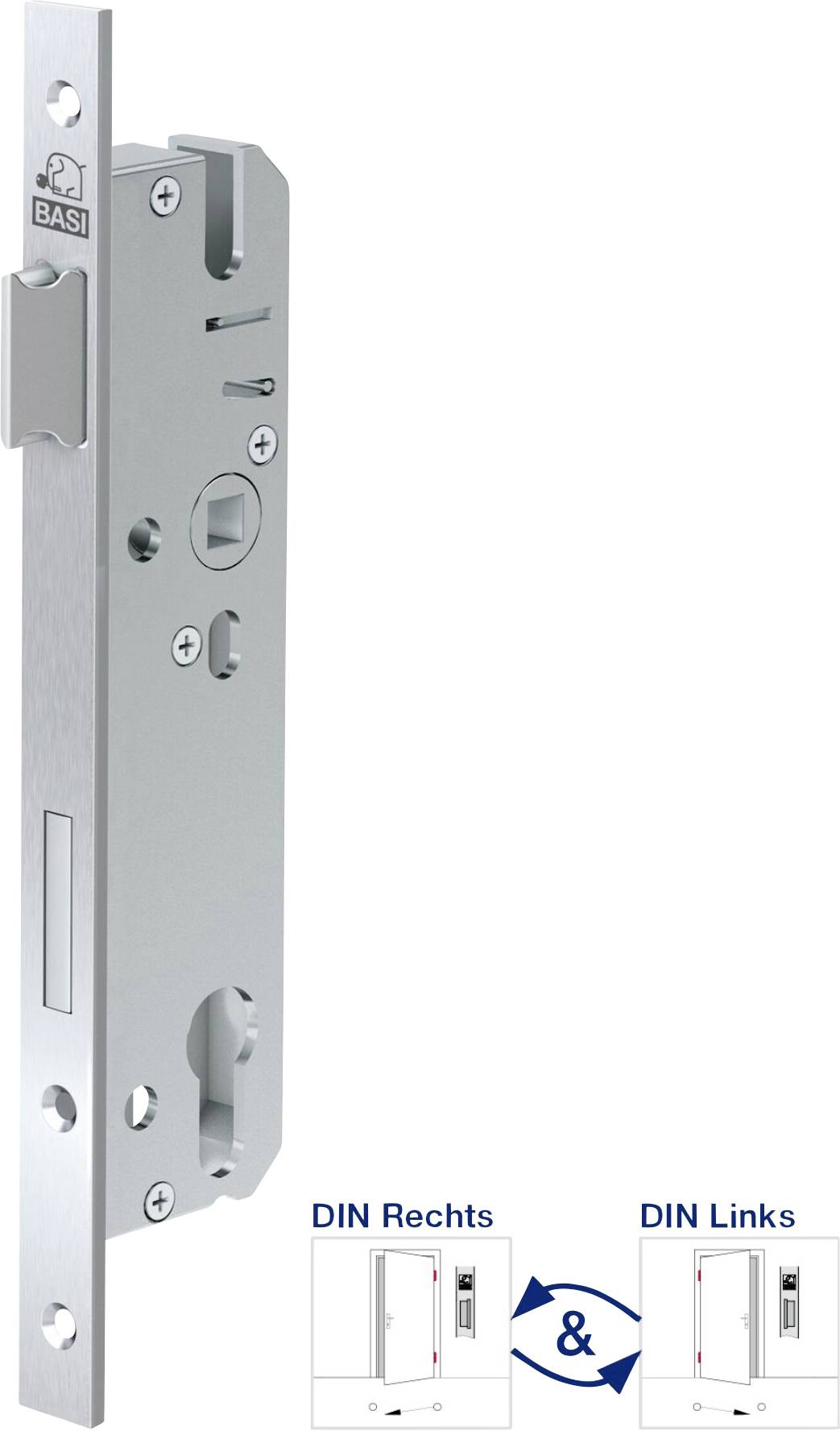

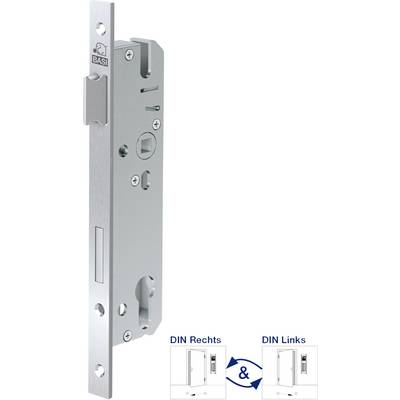

'BASI door lock diagram showing installation options for right and left door handing, with indicators for DIN Rechtes and DIN Linkes.'

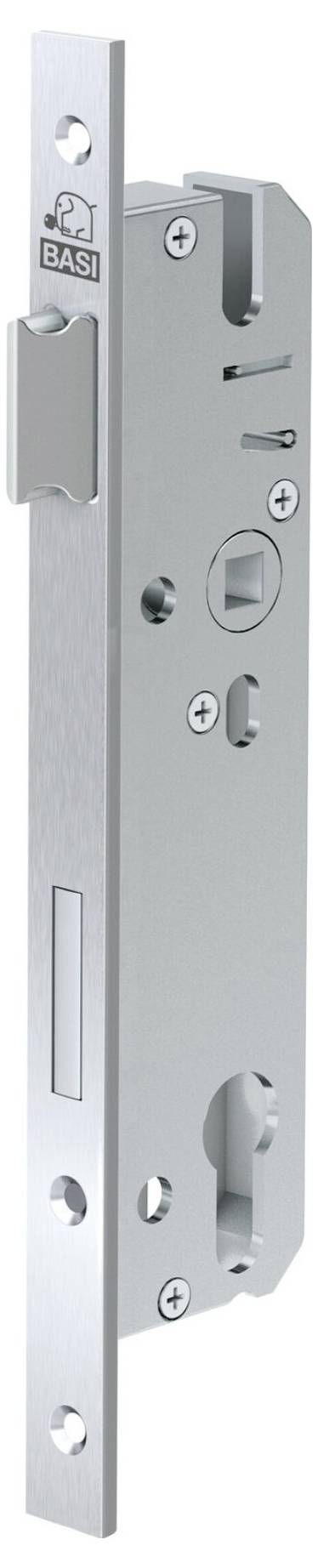

Silver door lock mechanism with a rectangular bolt, multiple screw holes, and markings. Designed for installation in door frames.

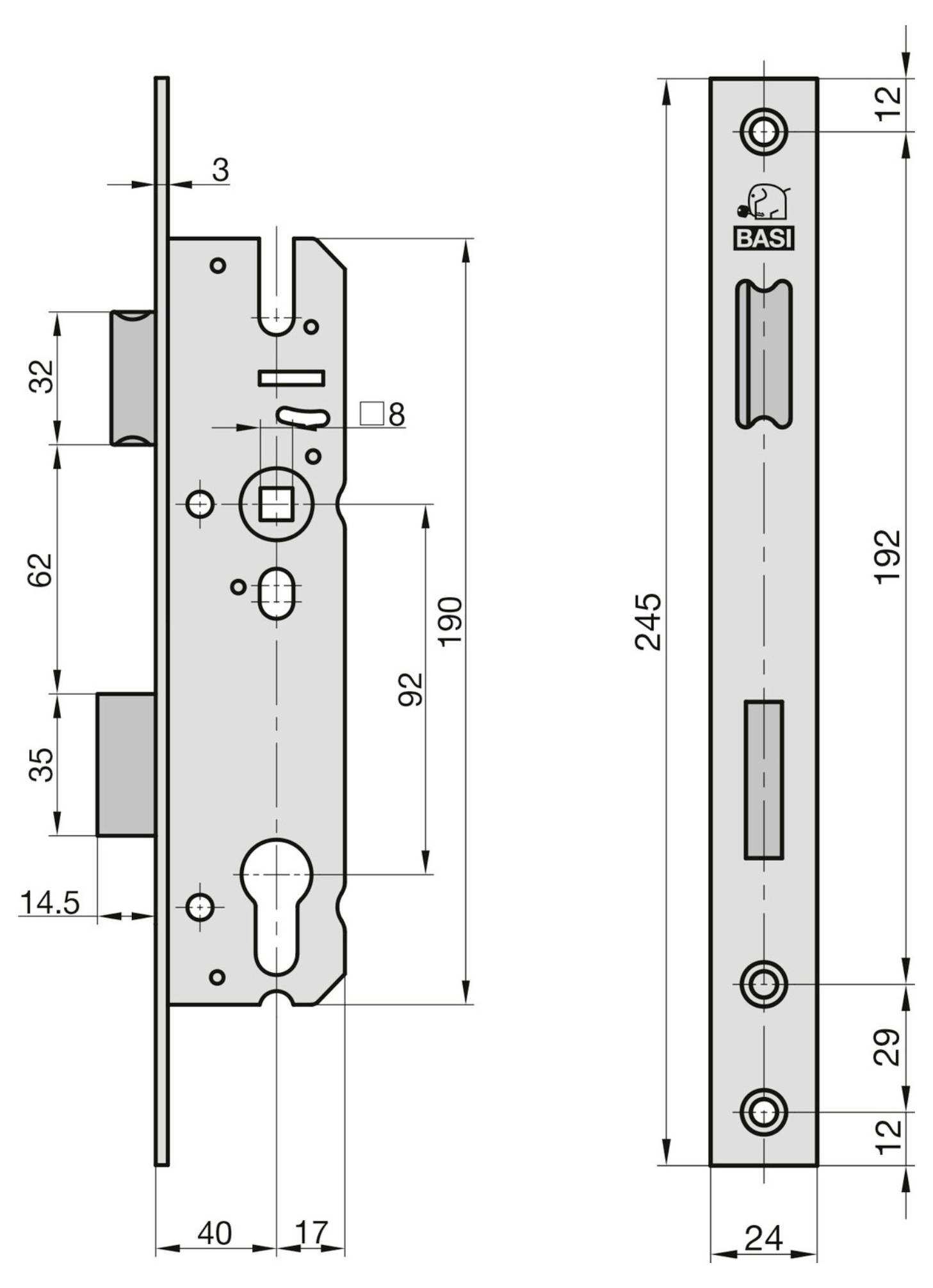

Technical drawing of a door lock mechanism showing dimensions and measurements in millimeters for installation purposes.

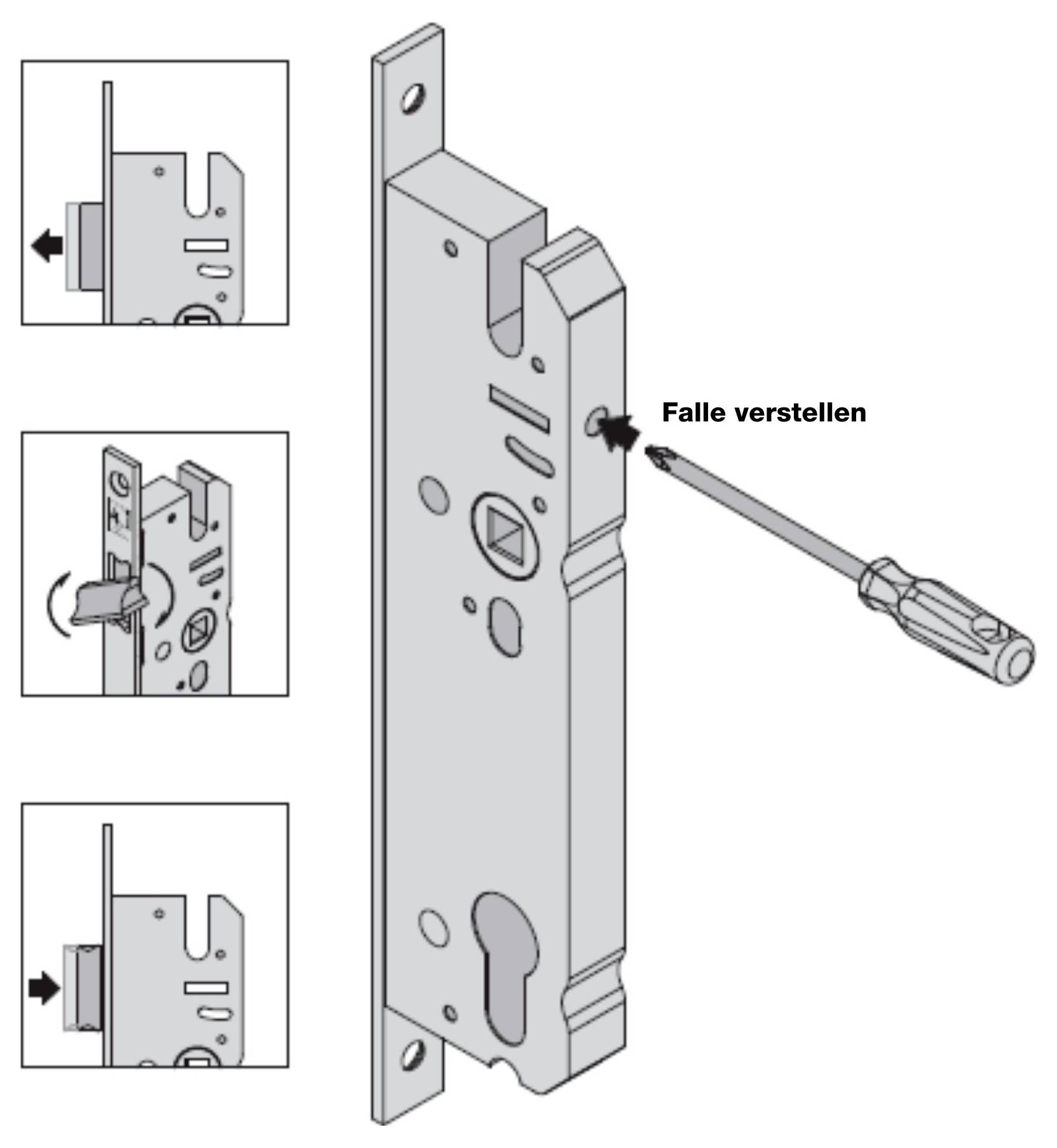

'Image showing instructions for adjusting a lock latch with a screwdriver. Arrows indicate the direction to push the latch for adjustment.'

1/4

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Plug-in pipe frame lock

Push-in lock with 24 mm känge cuff for profile doors / pipe-frame doors
Mandrel dimension: 40 mm, distance: 92 mm, square: 8 mm
DIN LEFT / right can be used, bar 1-speed
Material: Stainless steel stem, nickel-plated trap/latch
Tested according to DIN 18251-2, class 1

Technical specifications

Product type: Glass door lock

Dim: (L x W) 240 mm x 55 mm

Factory colour: Silver

Width: 55 mm

Length: 240 mm

Depth: 24 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1929521 Basi 9585-4020 Glass door lock Silver

Information

Information 1929521 Basi 9585-4020 Glass door lock Silver

Description

BASI Push-in lock - ES 958 - the high-quality pipe frame plug-in lock with a kitted stem can be installed in profile and frame doors made of metal, plastic or with glass insert. The lock is suitable for DIN LEFT / right opening doors. The plug-in lock is characterized by its high-quality material made of stainless steel and the simple mounting by standardized lock holes. The pipe frame lock has a device for profile cylinders. The door can be closed by the use of the door cylinder. Further details: Mandrel size: 40 mm, distance: 92 mm, square: 8 mm, cuff 24 mm, bar 1-speed, Känge design.
