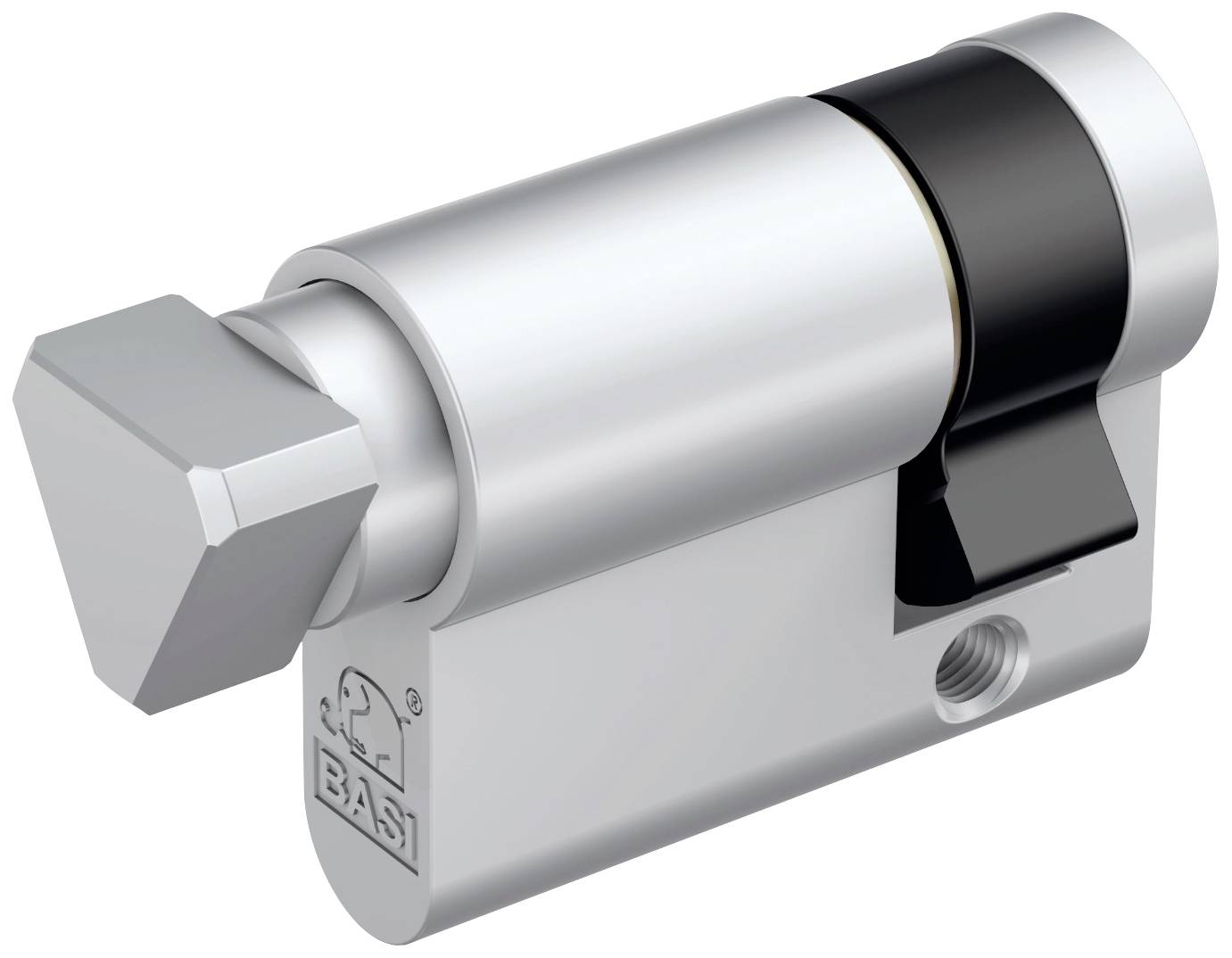

Basi DM5020-0000-DA17 TA half Euro cylinder 30 / 10mm
EAN:
Part number:
Item no:
Highlights & Details
BASI profile half cylinder with triangular attachment 10/30 mm external
- Fire-brigade triangular semi-cylinder 10/30 mm with 17 mm triangular external lyingWithout closing – cylinder can be opened with a socket wrench / three-square socket wrenchFor use in stoppostsMaterial: Nickel-plated brass, triangular actuator in accordance with DIN 3223
Technical specifications
- Triangular attachment: On the outside
- Product type
TA half Euro cylinder

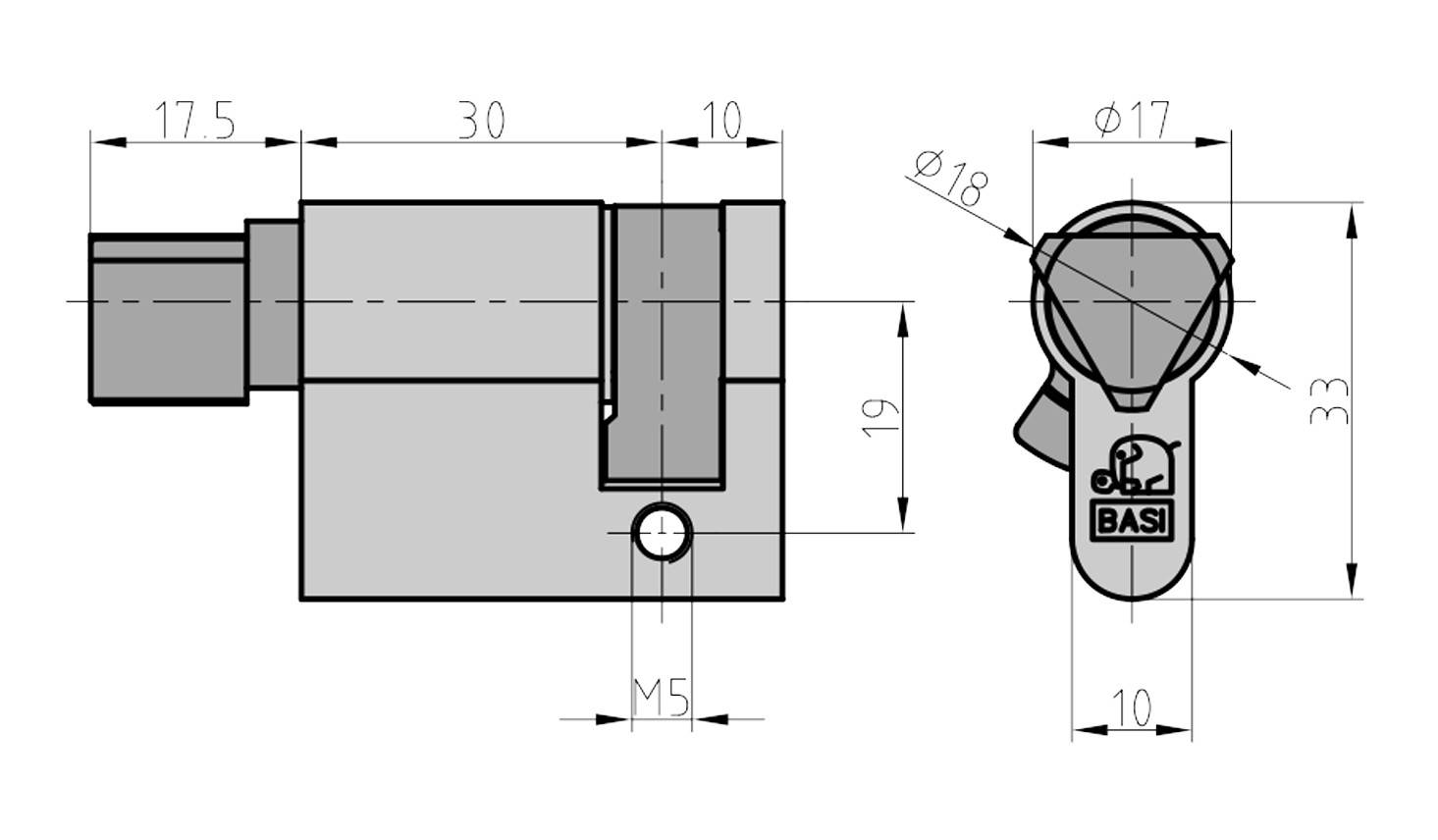

- Cylinder dimensions
30 / 10mm
- Cylinder inside diameter
30 mm
- Cylinder (outside diameter)
10 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2622929 Basi DM5020-0000-DA17 TA half Euro cylinder 30 / 10mm
Description
BASI's half-cylinder profile with triangular attachment is often used in locking posts so that they can be opened by fire or rescue services in the event of a rescue. The triangular half-cylinder has a standard length of 10/30 mm (total length 40 mm). The external 17 mm triangular can be opened with a three-square key / post key. The cylinder does not contain any closure / housing ventilation and can be integrated into all systems.
