Basi Ö9210-0002 Room door lock Silver
EAN:
Part number:
Item no:
Highlights & Details

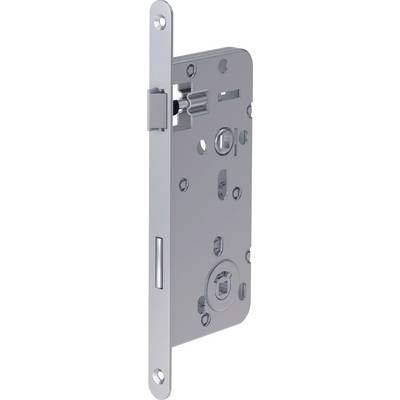

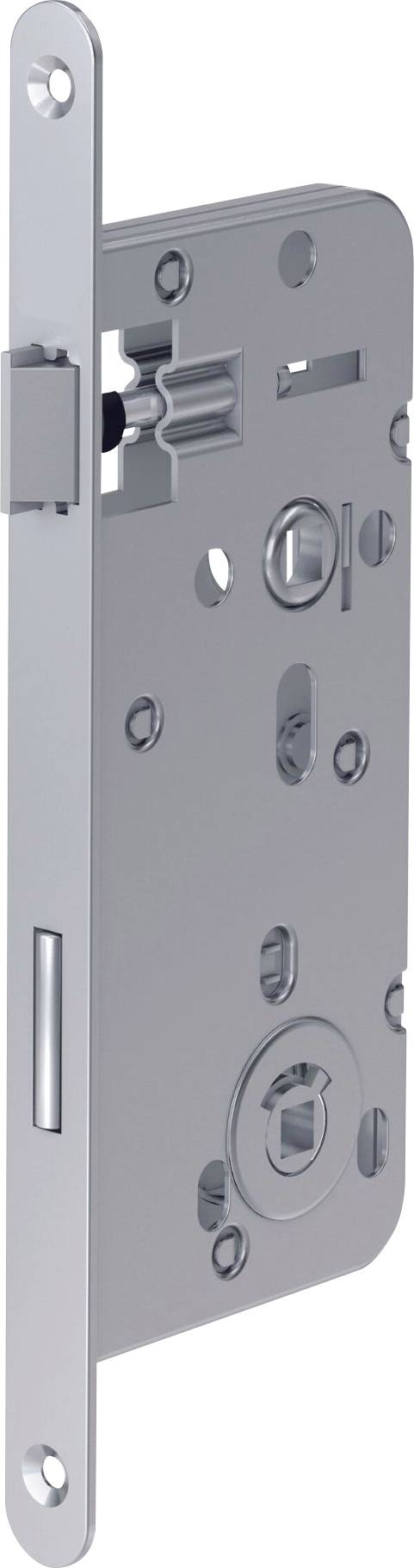

Plug-in-room door lock
- Push-in lock with NC standard for installation in toilet doors
- Cuff is 18 mm rounded
- Material trap/latch: Metal

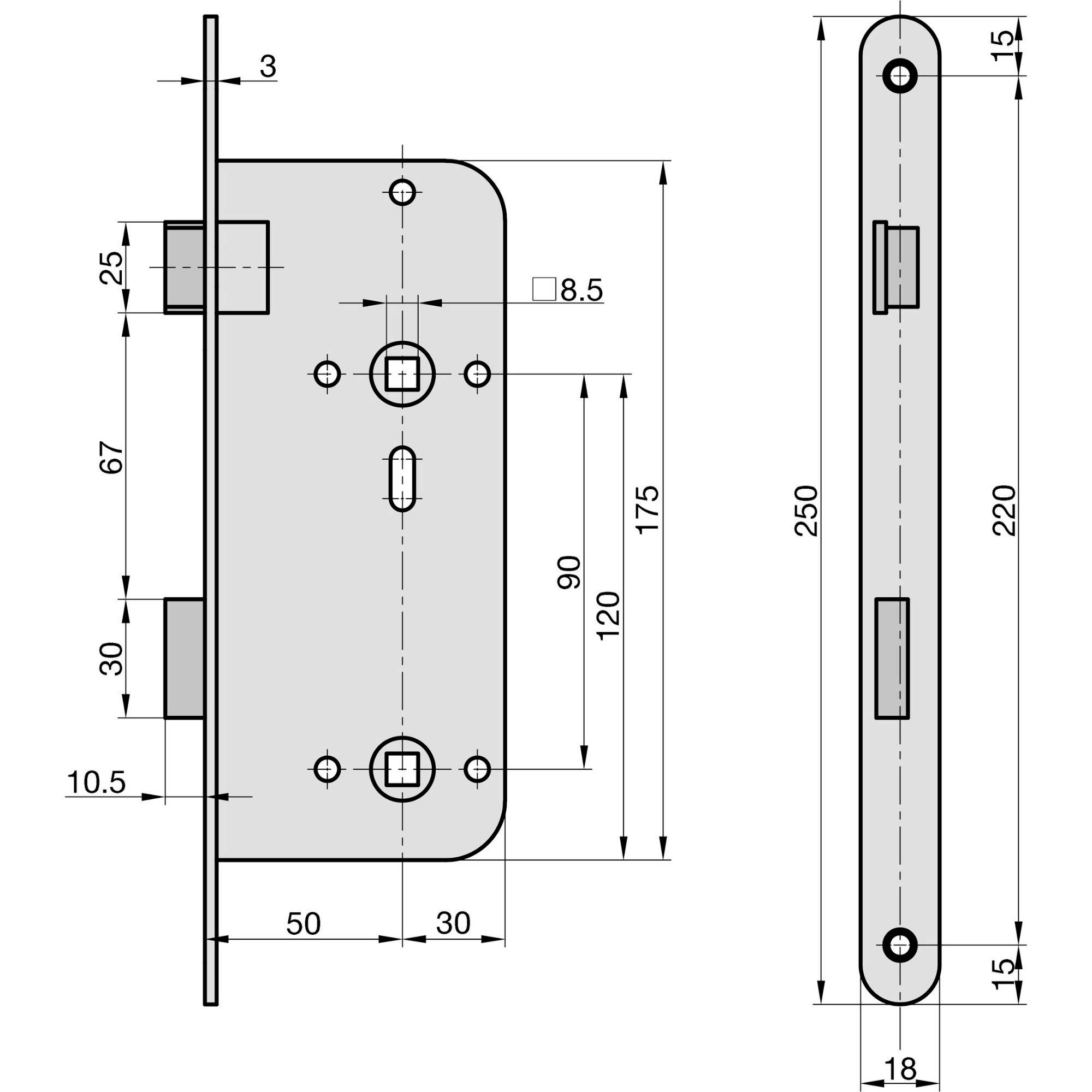

- Mandrel dimension: 50 mm, distance: 90 mm, square: 8.5 mm

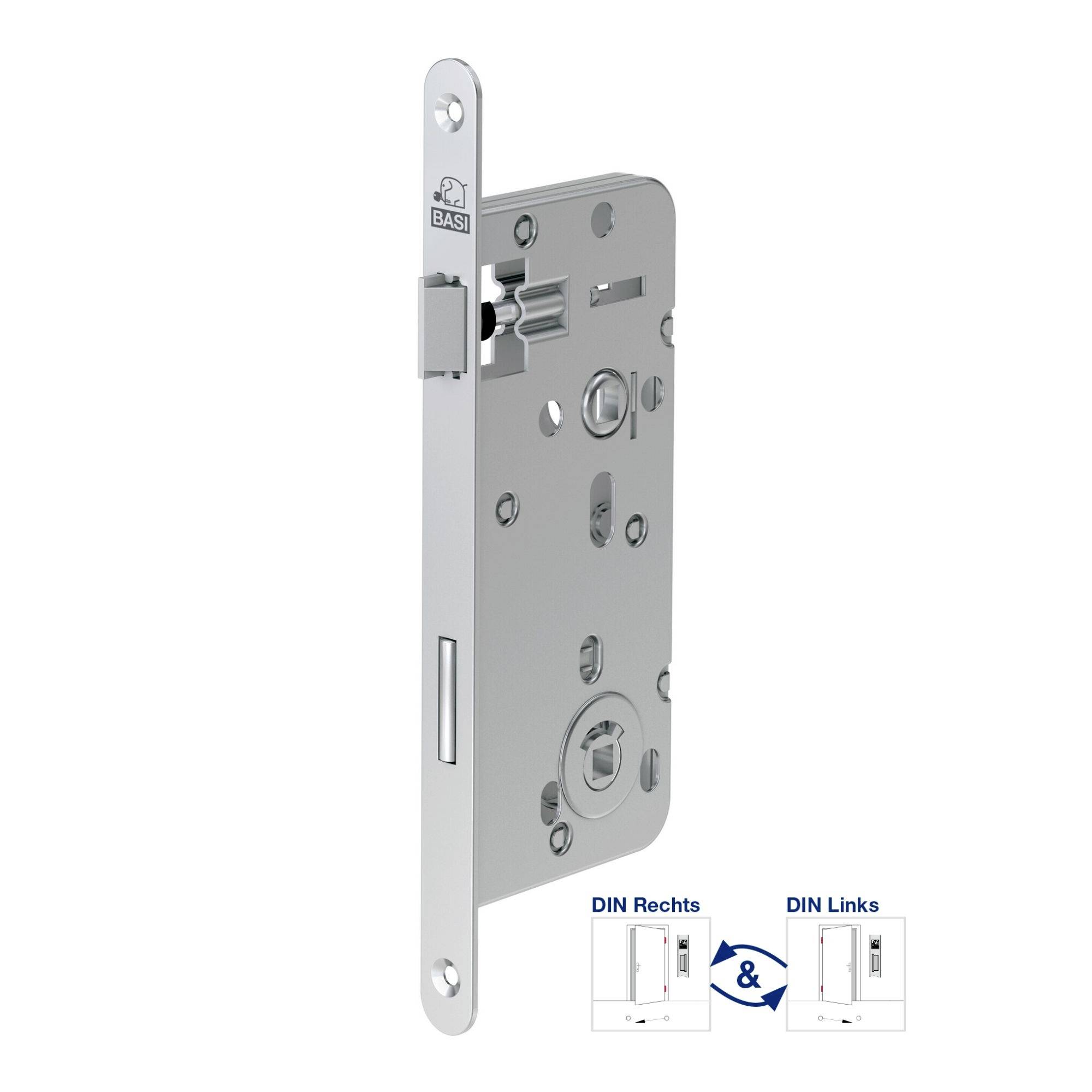

- DIN left / DIN right can be used
Technical specifications
- Product type
Room door lock
- Dim
(L x W) 250 mm x 80 mm
- Factory colour
Silver
- Width
80 mm
- Length
250 mm
- Depth
18 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1929510 Basi Ö9210-0002 Room door lock Silver
Information
Information 1929510 Basi Ö9210-0002 Room door lock Silver
Description
BASI push-in lock - ES 924 NC standard - ideal for use in bathrooms / WC doors. The lock has a rounded cuff with 18 mm width. The trap is made of metal and suitable for DIN left / DIN right doors. Tested according to NC standard B 5350 - mandrel dimension: 50 mm, distance: 90 mm, square: 8.5 mm
This text is machine translated.
This text is machine translated.
Features
- Case/latch metal
