Basi V5010-2727 Euro profile cylinder (short) 27 / 27mm
EAN:
Part number:
Item no:
Highlights & Details
v50 - 27/27 mm profile short cylinder, VS
- v50 profile short cylinder with best quality and maximum flexibility
- ideal for thin doors, glass doors or metal doors
- Moving system

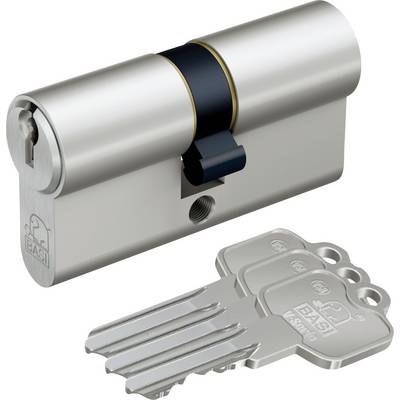

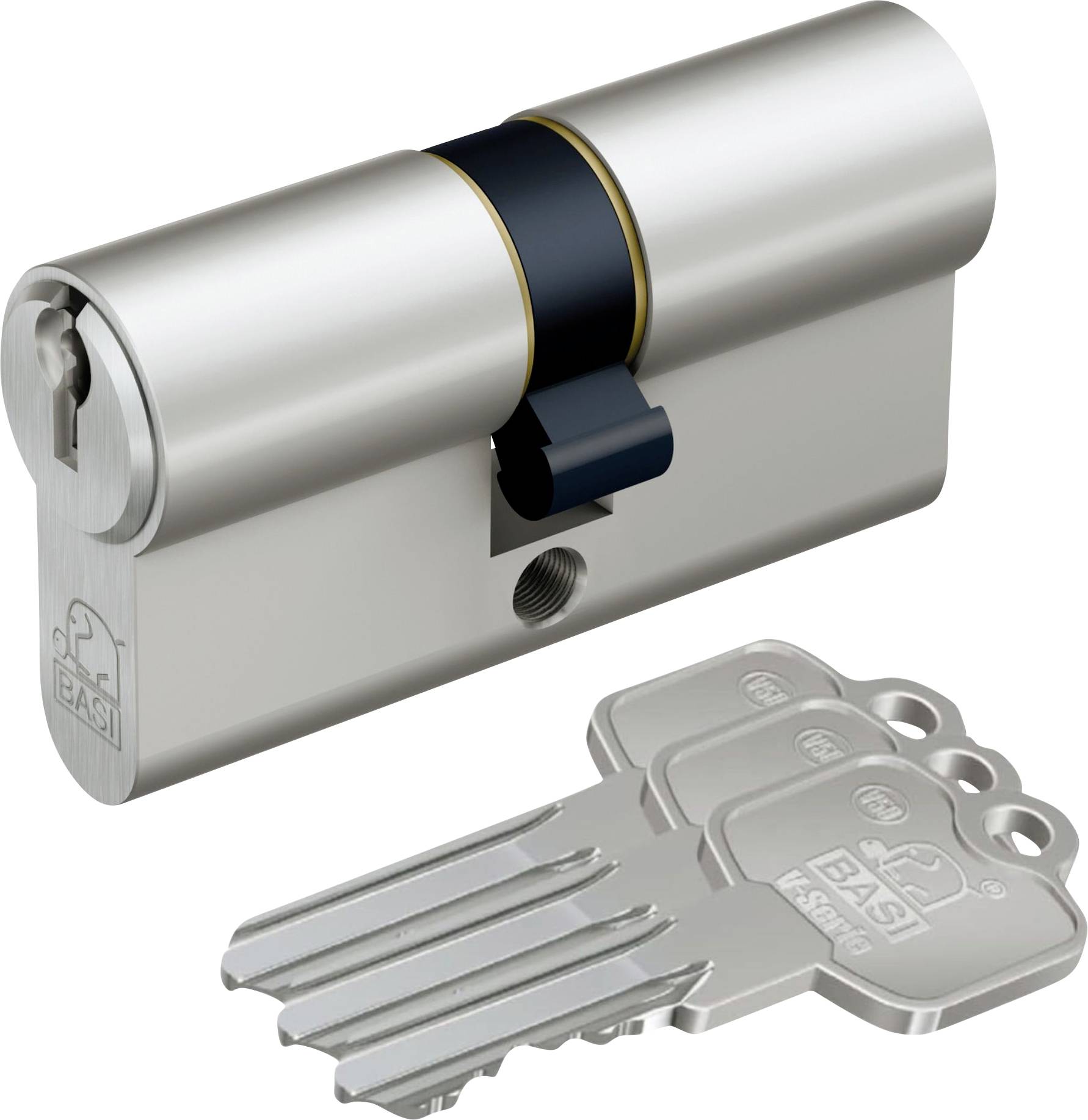

- Including 3 matching cylinder keys
- Material: Brass, matt nickel-plated
Technical specifications
- Product type
Euro profile cylinder (short)

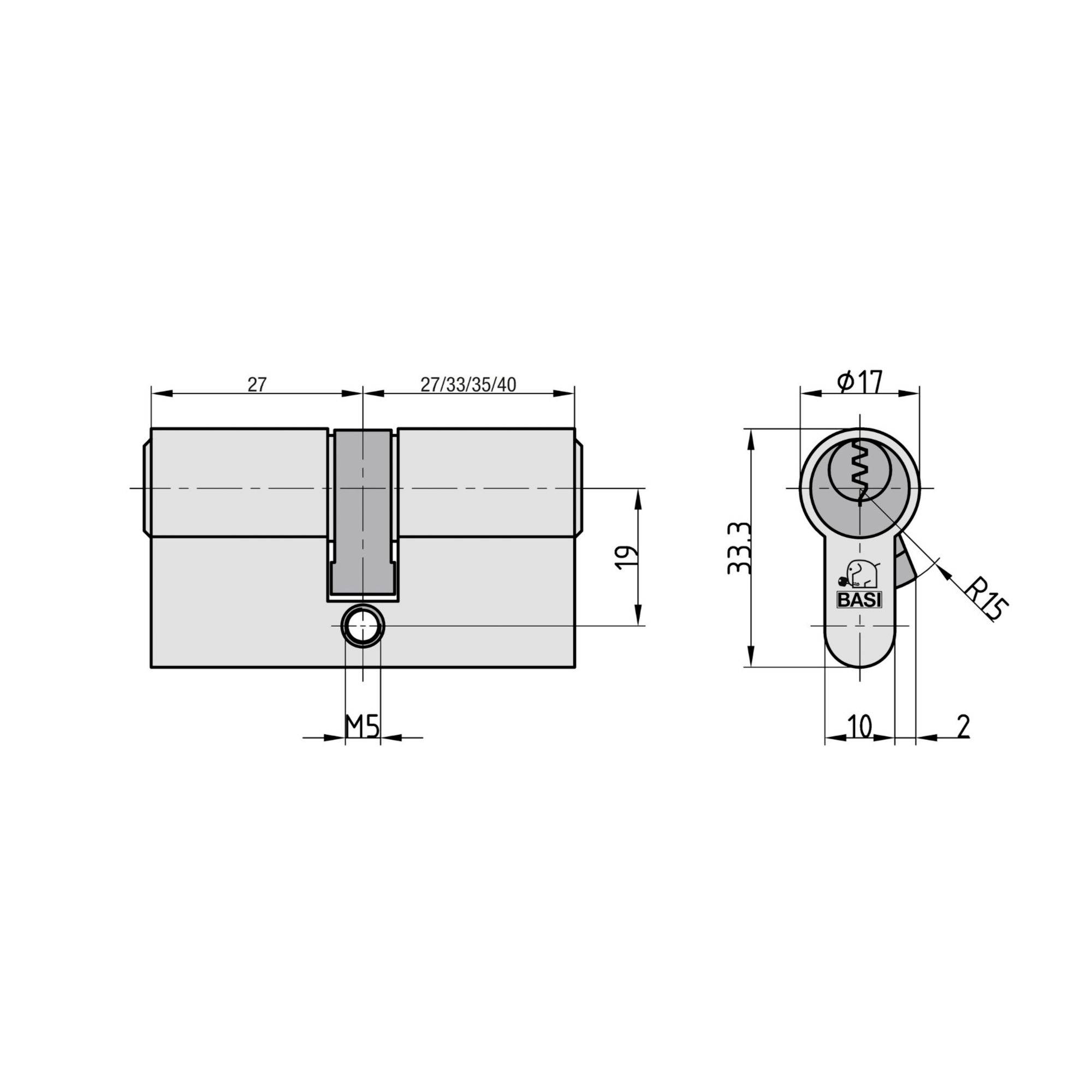

- Cylinder dimensions
27 / 27mm
- Cylinder inside diameter
27 mm
- Cylinder (outside diameter)
27 mm
- Size
27/27 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2350076 Basi V5010-2727 Euro profile cylinder (short) 27 / 27mm
Description

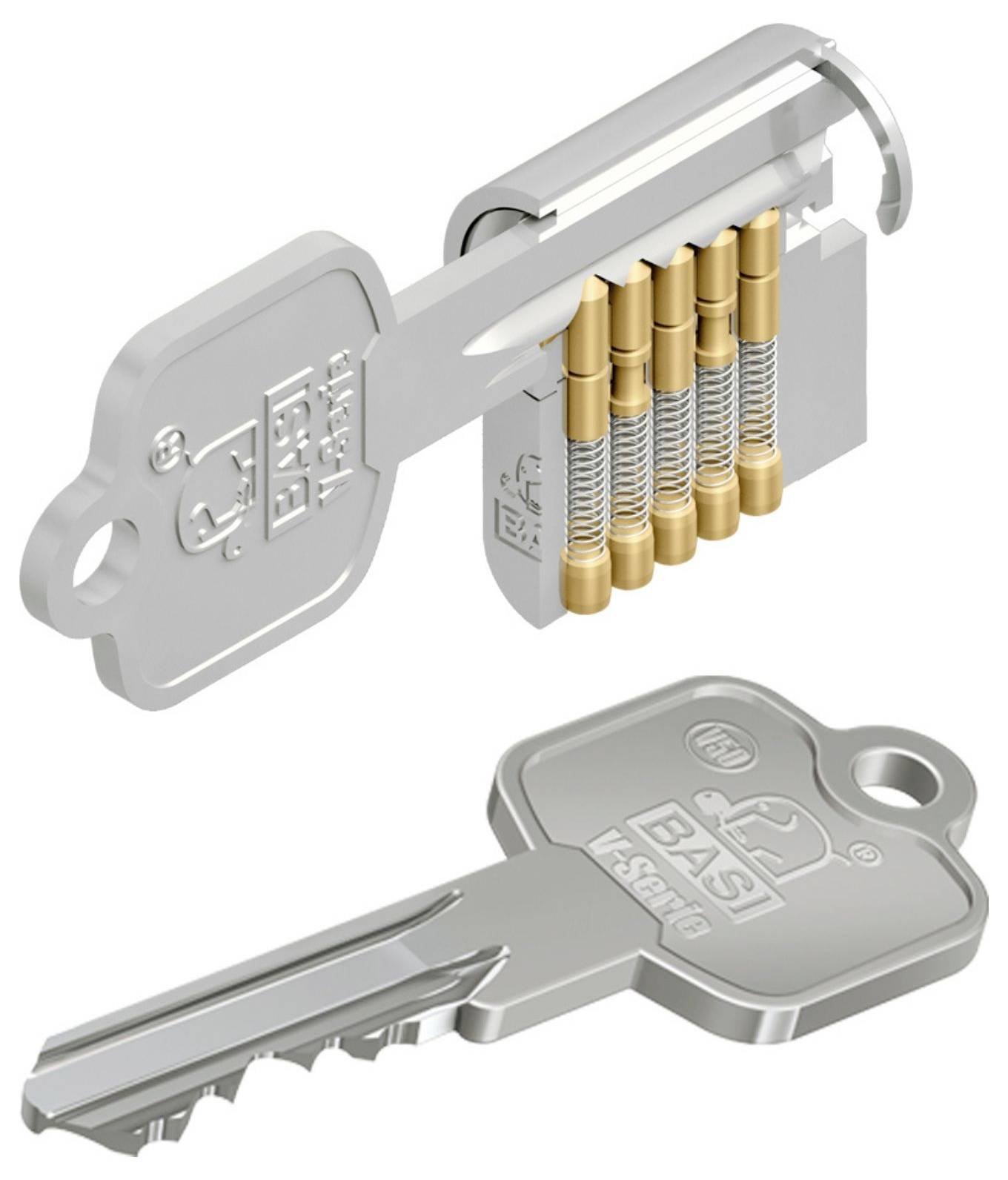

The safe V50 short cylinder range from BASI. Short cylinders can be operated from two sides like double profile cylinders. However, due to their short length, they are suitable for thin doors, glass doors or metal doors. The V50 is made of high-quality materials, which ensure a long service life and high wear resistance. The robust cylinder is supplied with 3 keys. The keys have a large head and thus ensure a high grip. The double cylinder is equipped with a different closing system. This means that only the 3 supplied keys are suitable. The core of the cylinder contains 5 pin feeds. The BASI cylinders are manufactured with the highest quality being precisely observed. The production and testing is done according to DIN standard 1303:2015.
