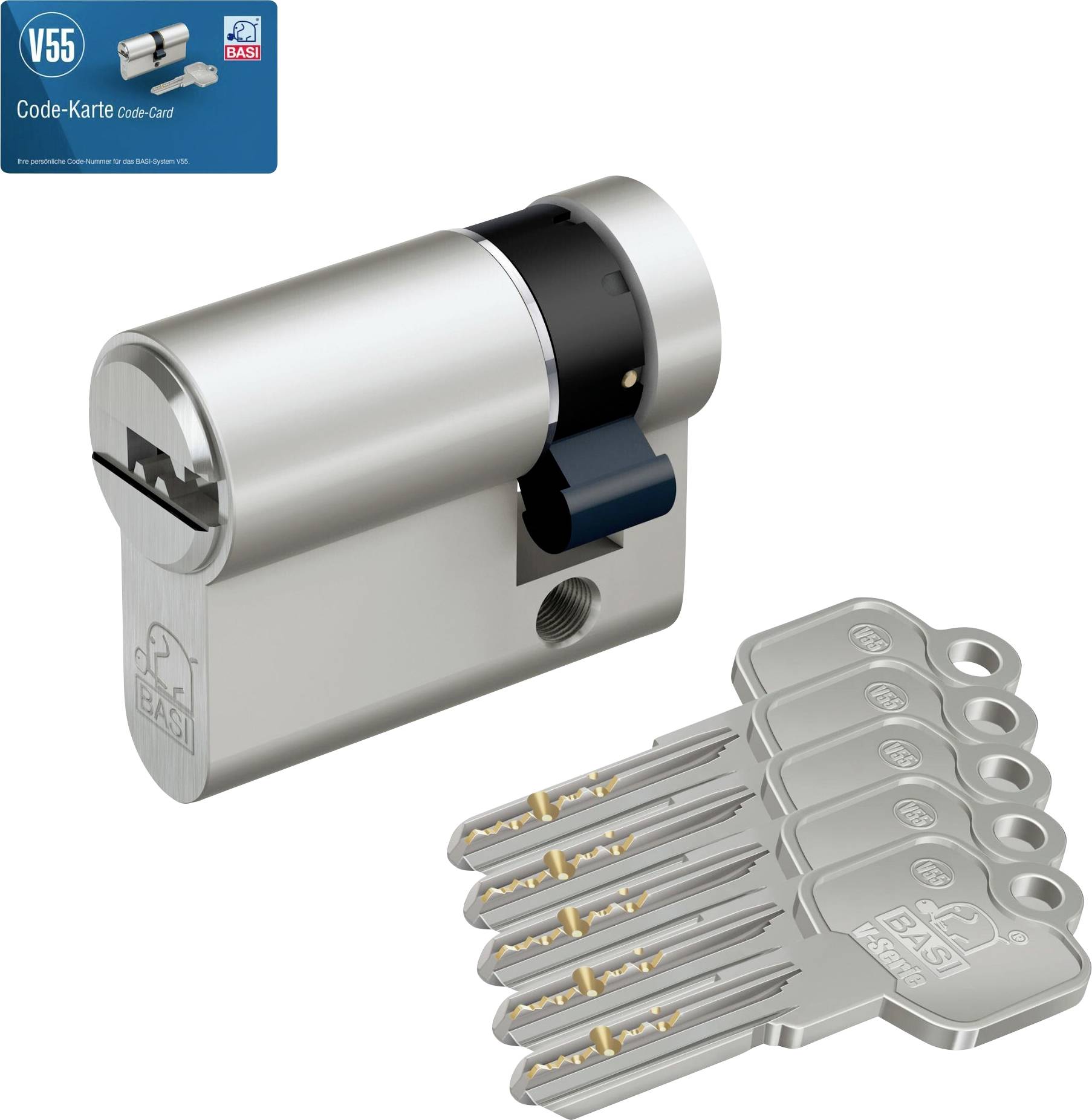

'A metal cylinder lock with five matching keys and a blue code card labeled V55. The setup implies security or locking mechanism.'

'A metal cylinder lock with five matching keys and a blue code card labeled V55. The setup implies security or locking mechanism.'

'A key is connected to five images showing secured areas: a shed, padlocked storage, a door with a lock, a door handle, and a garage door.'

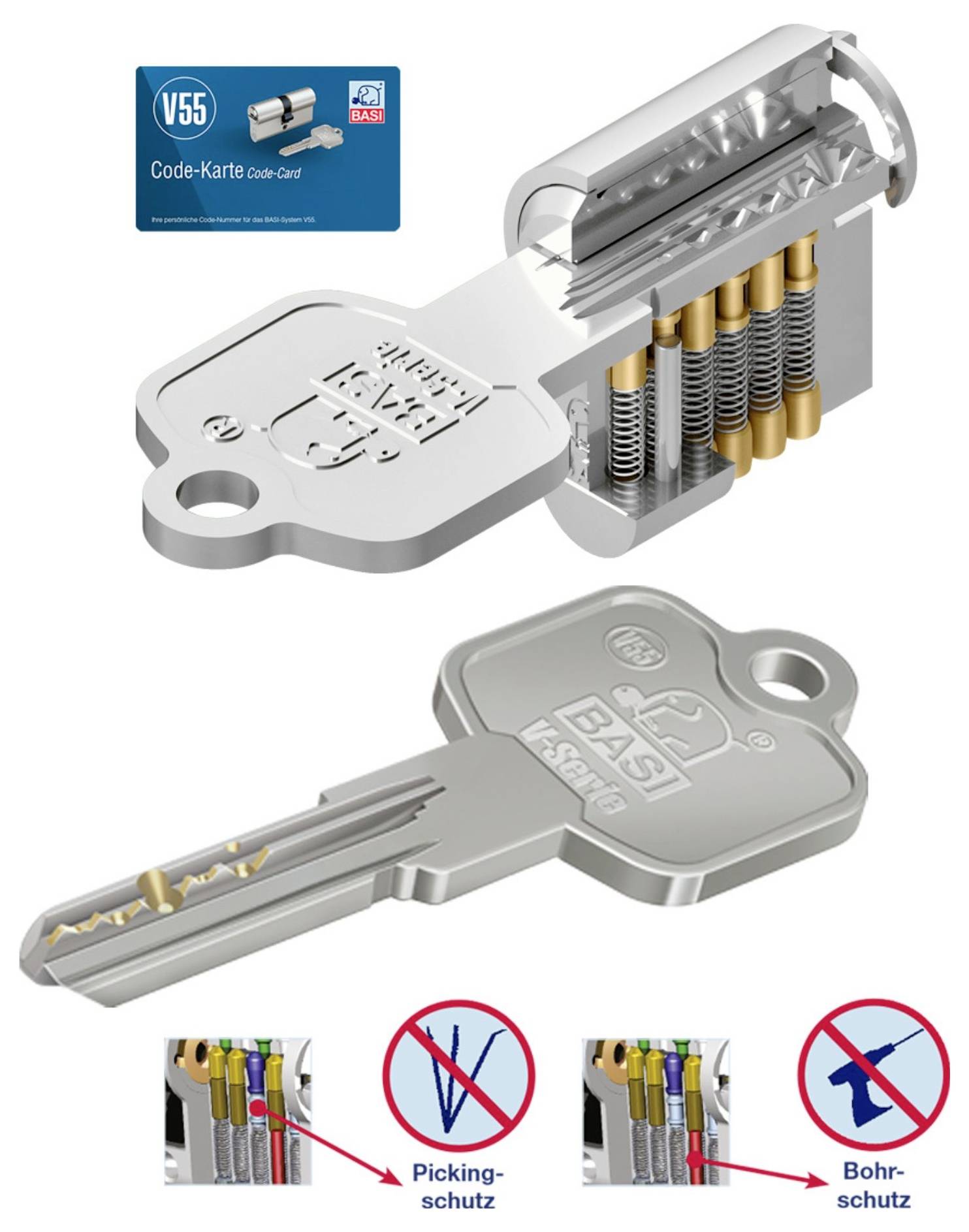

A cross-section of a high-security key and lock mechanism shows pin tumblers, with diagrams indicating protection against picking and drilling.

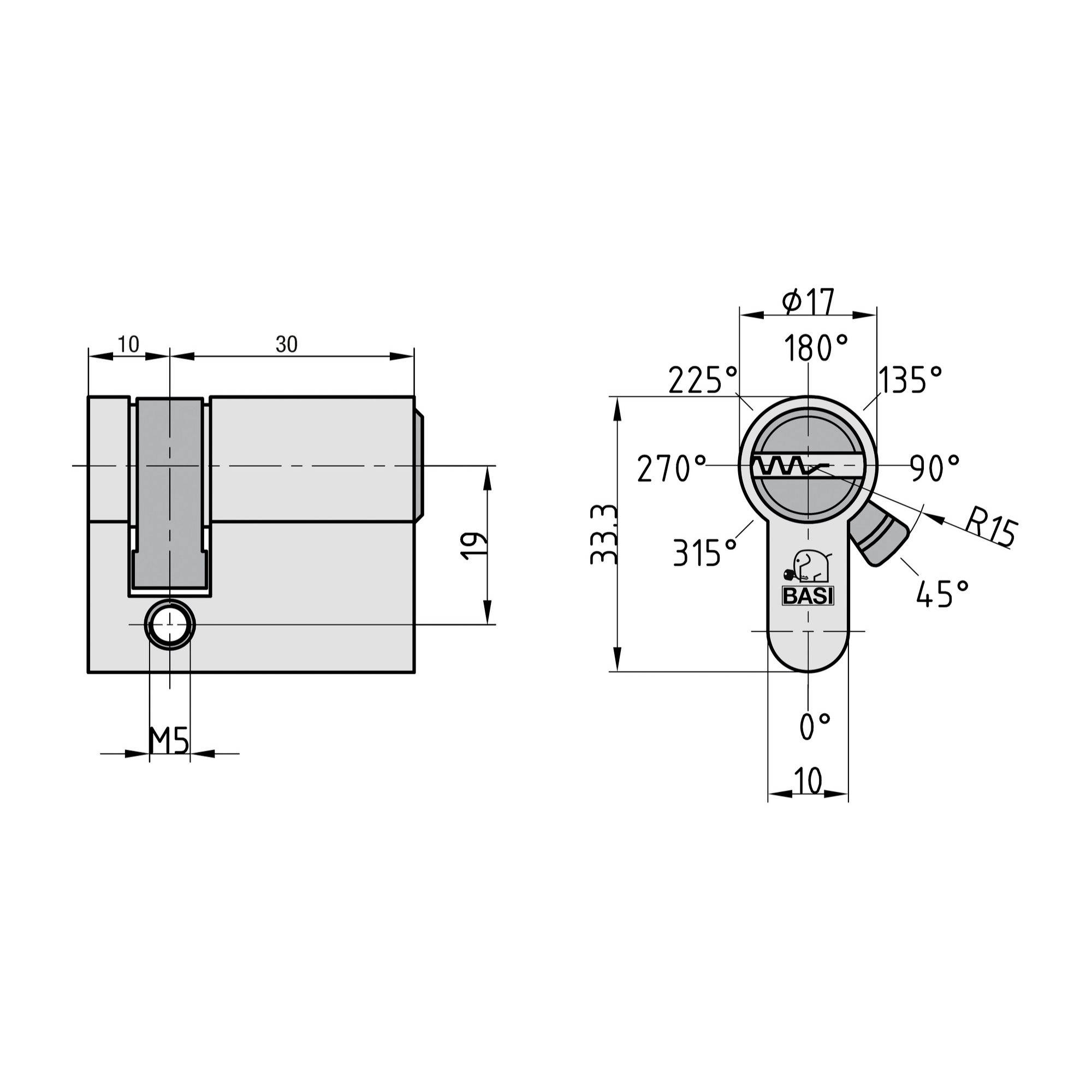

'Technical drawing of a BASI lock cylinder showing front and side views with detailed measurements, including angles and dimensions.'

1/4

Basi

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

V55 - 10/30 mm GL profile half cylinder

Common key

Technical specifications

Product type: Half Euro cylinder

Cylinder dimensions: 10 / 30mm

Cylinder inside diameter: 10 mm

Cylinder (outside diameter): 30 mm

Size: 10/30 mm

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2350225 Basi VB5021-0000-0020 Half Euro cylinder 10 / 30mm

Description

V55 - 10/30 mm GL half-cylinder profile, keyed alike, 5 drill-hole spanner with code, 8-way adjustable lock nose, 6 pin-holds, pick-up protection, drill protection, matt nickel-plated brass, incl. code card, tested according to EN1303:2015

This text is machine translated.
