Buy Bauser 3811/008.2.1.1.0.2-001

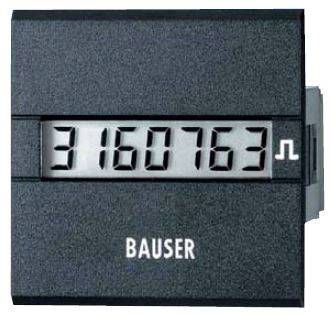

A black counter shows the number 3160763. In the lower section, 'BAUSER' is written.

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

13 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 21.84 / piece)

€ 21.84

plus VAT.

Report legal concerns

Highlights & Details

Digital timer or pulse counter - new! Twin solution

48 x 48 mm
With electrical reset, without key
Terminal connection
DC-supplied
This text is machine translated.

Technical specifications

Electrical connection: Clamp connection
Ambient temperature: -30 to +70 °C
Counter frequency: 30 Hz for DC-counters
Pulse counter: 10 Hz for AC-counters
Mounting: spanning bracket

Reading type: Pulse

Type: 3811/008.2.1.1.0.2-001

: IP65 (on front)

Recess width: 48 mm

Recess height: 48 mm

Dim: (W x H x D) 48 x 24 x 37 mm

Weight: 42 g

Factory colour: Black

Width: 48 mm

Height: 24 mm

Frame width: 48 mm

Digit height: 7 mm

Depth: 37 mm

Type: PULSE COUNTER 12 -24 V DC

Digits: 7

Display (details): LCD

Assembly dimensions: 45 x 45 mm

Total dimensions: 48 x 48 mm

Counter range: 9999999

Counter type: Pulse counter

Reset: Electrically

Temperature range: -30 to +70 °C

Input voltage: 12 - 24 V DC

Operating voltage: 12 - 24 V DC

Documents & Downloads

Datasheet

Datasheet 120663 Bauser 3811/008.2.1.1.0.2-001

User & Safety Instructions

User & Safety Instructions 120663 Bauser 3811/008.2.1.1.0.2-001

Description

Modern Bauser technology makes it possible Even without batteries your data is saved in the EEPROM memory! The new electronic timers and pulse counters are characterised by their attractive design, high quality and reliability. Optimally suited for the rigours of industrial applications or in commercial vehicles. And that’s what you can count on with Bauser counters.
