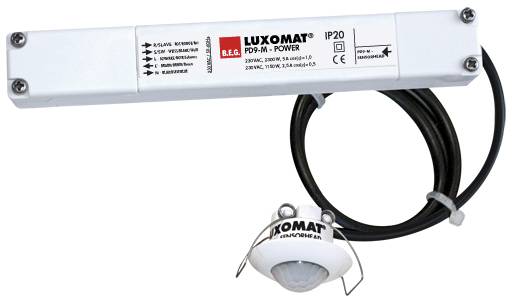

B.E.G. Brück 92900 Ceiling, Recess-mount PIR motion detector 360 ° White IP20
EAN:
Part number:
Item no:
Show alternatives
Sales and shipping:
Number
Total (€ 113.44 / piece)
€
Technical specifications
- Range: H = 2.50 m/T = 18 °C:
- Sitting Ø 4.00 m
- Cross-diameter 10.00 m
- Frontal diameter 6.00 m
- Product type
PIR motion detector
- Detection angle
360°
10 m
- Used at
Indoors
- Mounting type
Ceiling
Recess-mount
- Operating voltage
230 V
- Twilight settings
10 - 2000 lx
- Factory colour
White
- Similar RAL
9010
IP20
- Height
28 mm
- (Ø)
45 mm
- Dim
(Ø x H) 45 mm x 28 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 469727 B.E.G. Brück 92900 Ceiling, Recess-mount PIR motion detector 360 ° White IP20
Description
Mini-presence detector for indoor applications in the design master with circle-shaped detection area. A switching channel to switch from light. Despite its extremely small size high performance relay for switching high lamp performance. Immediate Commissioning with factory program. Numerous programs with the remote control IR-PD-1 C. Special type with spring terminals for easy and time-saving installation directly in lights or in suspended ceilings. Power unit fits through the hole for sensor unit in the ceiling. Typical applications: offices, meeting rooms, hospitals, Vorraume, children's garden.
