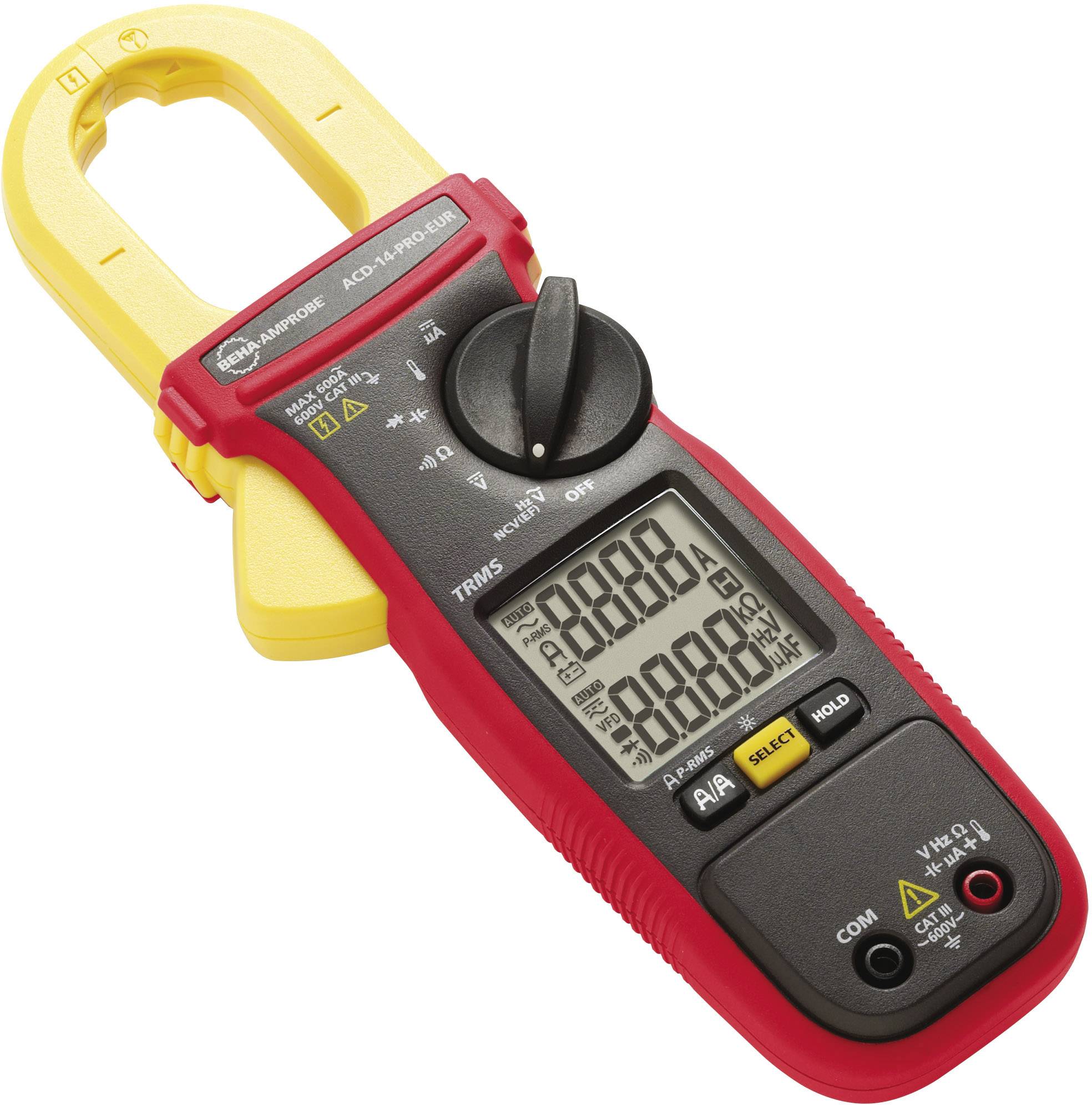

Beha Amprobe ACD-14-PRO-EUR Clamp meter, Handheld multimeter Digital CAT III 600 V Display (counts): 6000
EAN:
Part number:
Item no:
Number
Total (€ 234.45 / piece)
€ 234.45
plus VAT.
Highlights & Details
ACD-14-PRO-EUR
- CAT III 600 V
Technical specifications
- Voltage reading range DC (min.)
0.1 V
- Product type
Clamp meter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.1 V
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
1 µA
- A DC reading range (max.)
2000 µA
- A AC reading range (min.)
0.1 A
- Amperage reading range AC (max.)
600 A
- Reading range - resistance
0.1 Ω - 6000 kΩ
- Reading range - capacity
1 µF - 2500 µF
- Frequency reading range
5 Hz - 999.9 Hz
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
1 %
- Measurement type (details)
True RMS
- Power supply (details)
2x AAA battery
- Height
219 mm
- Width
77 mm
- Length
37 mm
- Weight
208 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
AC
- Type
ACD-14-PRO-EUR
- Display
Digital
- Display (counts)
6000
- Dim
(L x W x H) 37 x 77 x 219 mm
- Temperature reading range (max.)
+400 °C
- Temperature reading range (min.)
-40 °C
- Opening range of current clamps
30 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1500117 Beha Amprobe ACD-14-PRO-EUR Clamp meter, Handheld multimeter Digital CAT III 600 V Display (counts): 6000
Description
The modern power clamp meter ACD-14-PRO EUR offers a multitude of measuring functions for applications in HVAC technology and electronics. It is equipped with a large LCD-double display mitHintergrundbeleuchtung and can voltage and current at the same time. ACD-14-PRO-EUR offers the following functions: Real-effective measurements, low pass filter, switch-on current, frequency, resistance, capacitance, temperature, DC-MICROAMPERE, Amp-Tip and non-contact voltage detection. The Amp-Tip-function enables a reliable and precise current measurement down to 0.1 A at both large and small wire diameters. Due to the low-pass filter can be exact current and voltage measurement of motor controls with frequency converters. The measuring device has a housing with rubber coating, is particularly robust and offers high security in accordance with the measurement category CAT III 600 V.
This text is machine translated.
This text is machine translated.
Features
- • Strommesung True effective (TRMS)
- • Voltage and resistance measurement
- • Capacity and frequency measurement
- • Temperature Measurement
- • Acoustic continuity test
- • Low-pass filter
- • Measurement of the switch-on current
- • Behuhrungslose voltage detection
- • Automatic measuring range selection
- Integrated memory (Data Hold)
- • Clamp opening 30 mm
- • Auto-power-off

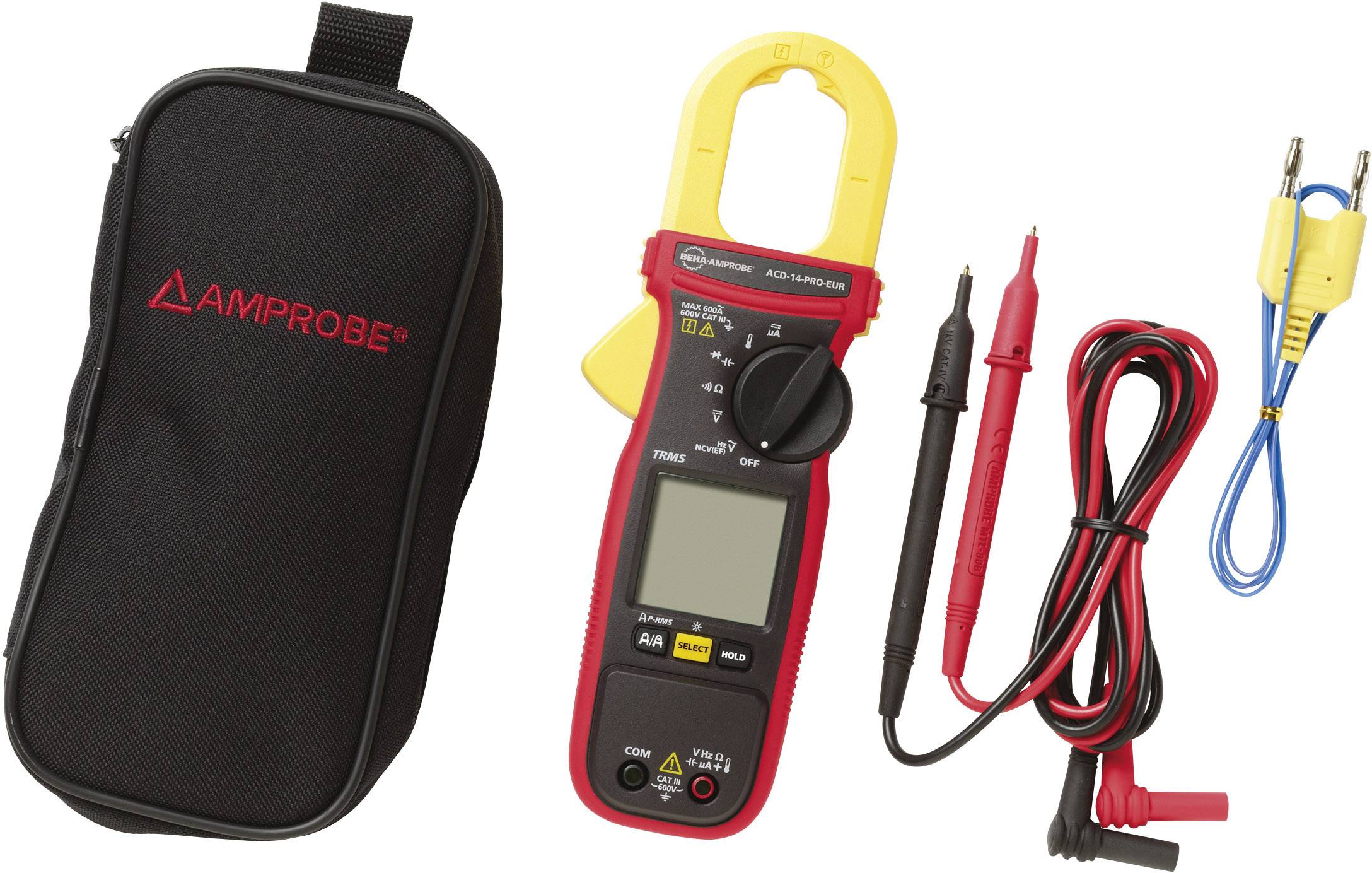

Scope of delivery
- Safety test leads
- Temperature sensor type K
- Batteries
- Bag
- User manual.
