Beha Amprobe DM78C Handheld multimeter Digital CAT II 600 V, CAT III 300 V Display (counts): 3400
EAN:
Part number:
Item no:
Total (€ 78.98 / piece)
€ 78.98
plus VAT.
14-day return policy included
Highlights & Details

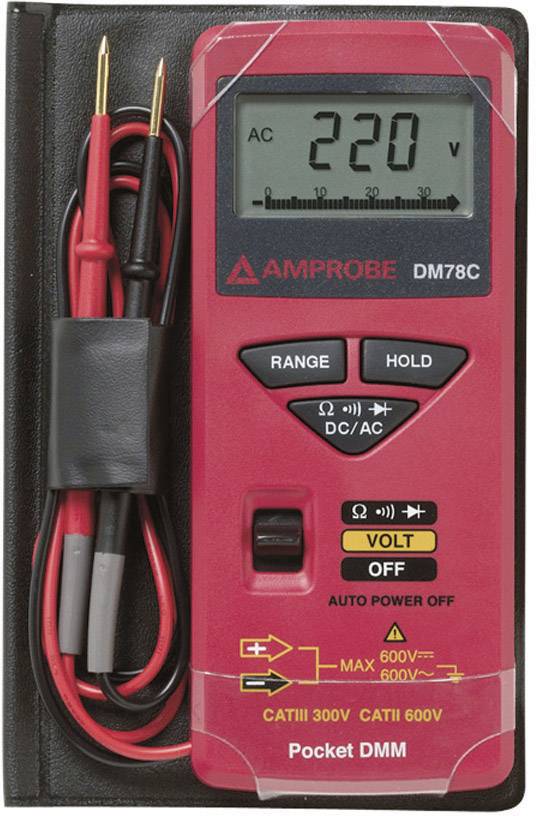

DM78C pocket digital multimeter
- Data Hold function
- Auto range
- Especially compact
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.001 V
- V AC reading range (max.)
600 V
- Reading range - resistance
100 mΩ - 34 MΩ
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
2 %
- Measurement type (details)
Average
- Frequency range
50/60 Hz Hz
- Interfaces
none
- Power supply (details)
2x 1.5 V button cells
- Height
130 mm
- Width
77 mm
- Weight
110 g
Manufacturer's standards (no certificate)
- Reading category
CAT II 600 V
CAT III 300 V
- Voltage metering
AC/DC
- Type
DM78C
- Display
Digital
- Display (counts)
3400
- Dim
(W x H) 77 mm x 130 mm
- Displays
3400-digit LCD
- Reading category
CAT III 300 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 101312 Beha Amprobe DM78C Handheld multimeter Digital CAT II 600 V, CAT III 300 V Display (counts): 3400
Description
Despite its handy and compact dimensions, the pocket-sized DM78C is protected against scratches thanks to the included pouch.
Features
- Voltage and resistance measurement
- Diode and audible continuity tester
- Automatic and manual range selection
- Additional bar graph
- Fixed test leads
- Auto power-off.
Scope of delivery
- Protective pouch
- 2 button cells
- Instructions for use.
