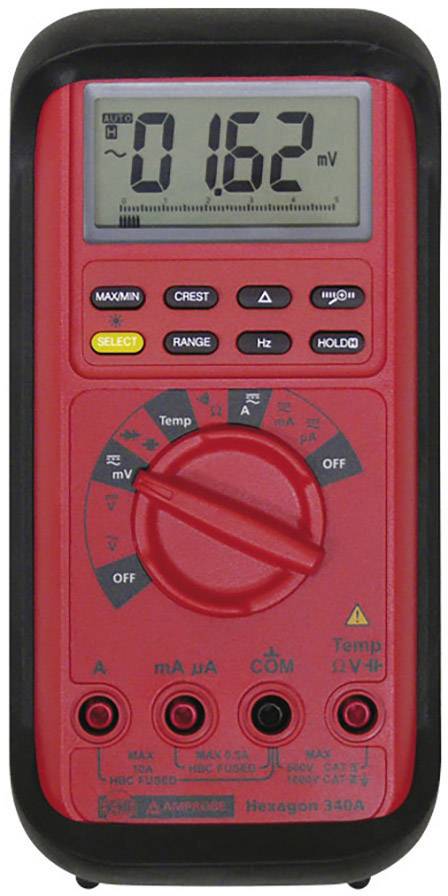

Beha Amprobe HEX340-D Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 5000
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 357.14
5
3% = € 10.71
€ 346.43
10
5% = € 17.85
€ 339.29
50
10% = € 35.71
€ 321.43
100
20% = € 71.43
€ 285.71
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 357.14 / piece)
€ 357.14
plus VAT.
14-day return policy included
Highlights & Details
HEX340-D
- CAT III 1000 V, CAT IV 600 V
Technical specifications
- Voltage reading range DC (min.)
0.01 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.01 mV
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.1 mA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.1 mA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0.01 Ω - 50 MΩ
- Reading range - capacity
0.01 nF - 9999 µF
- Frequency reading range
10 Hz - 125 kHz
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.08 %
- Measurement type (details)
True RMS
- Frequency range
40 Hz -20 kHz
- Interfaces
RS232
- Power supply (details)
9 V DC
- Height
198 mm
- Width
97 mm
- Length
55 mm
- Weight
430 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
HEX340-D
- Display
Digital
- Display (counts)
5000
- Dim
(L x W x H) 55 x 97 x 198 mm
- Temperature reading range (max.)
+1000 °C
- Temperature reading range (min.)
-50 °C
- Interfaces
RS232
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1372971 Beha Amprobe HEX340-D Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 5000
Description
Digital multimeter with socket control (ABK). Features • The voltage, current and resistance measurement
• Capacity and frequency measurement • diode and audible continuity tester • temperature measurement.
This text is machine translated.
• Capacity and frequency measurement • diode and audible continuity tester • temperature measurement.
This text is machine translated.
Features
- • Additional bar graph with zoom function to the trend assessment
- • Illuminated Display • Automatic and manual measuring range selection
- • Integrated Memory (Data Hold) and Max Hold
- • Relative value measurement
- Auto power-off
- • Shock and impact to its protective cover.
Scope of delivery
- Safety test leads
- Thermal Sensors
- Protective cover
- Battery
- User manual
