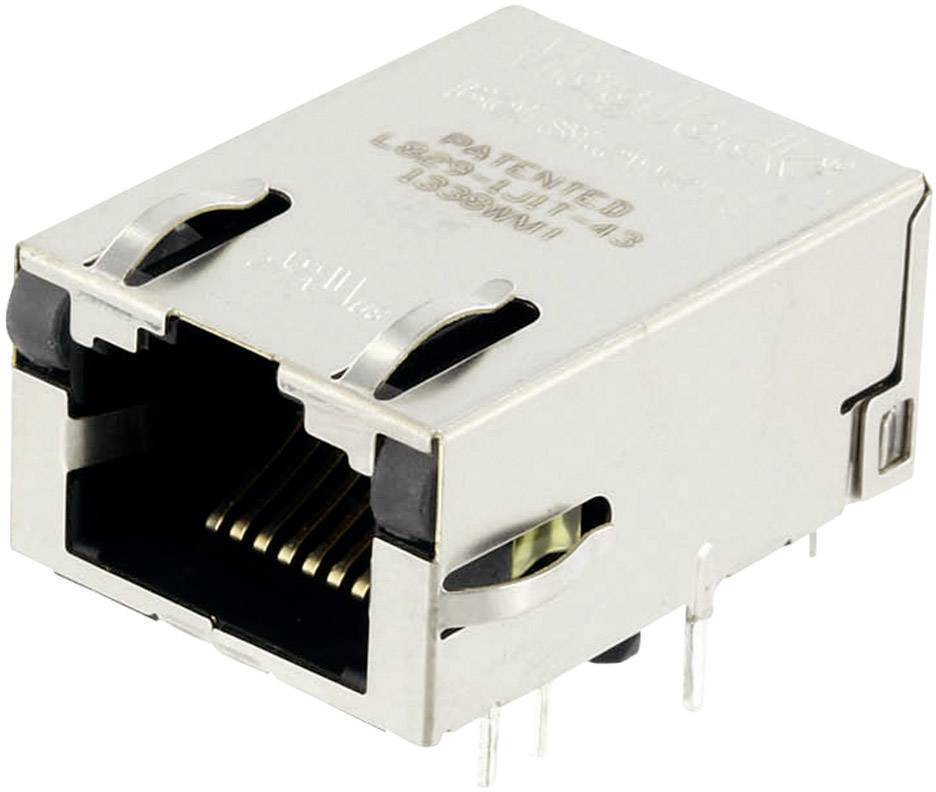

BEL Stewart Connectors BEL Stewart Connectors N/A L829-1J1T-43 Socket, horizontal mount Gigabit Ethernet Pins: 8P8C Nick
EAN:
Part number:
Item no:
Connector type
Socket, horizontal mount
Connector standard
RJ45
Type
L829-1J1T-43
Connection
Solder pins
Factory colour
Nickel-coated
Metal
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.29
5
6% = € 0.38
€ 5.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.29 / piece)
€ 6.29
plus VAT.
Technical specifications
- Type
L829-1J1T-43
- Connector type
Socket, horizontal mount
- Connector standard
RJ45
- Connection
Solder pins
- Factory colour
Nickel-coated
Metal
- Content
1 pc(s)
- Contact material
Copper alloy gold plated
- Seal type
Snap-in
- Standards
IEC 60603-7-71
- Material (details)
Thermoplastic UL94V0/copper alloy
- Type
angled
- Nominal voltage (details)
150 V AC
- Nominal current (details)
150 mA
- Type
Gigabit Ethernet
- Pins
8P8C
- Mating cycles
min. 750
- Temperature range
-0 - +70 °C
