Buy BEL Stewart Connectors BEL Stewart Connectors N/A SI-60024-F Socket, horizontal mount 10/100Base-TX Pins: 8P8C Nickel-co

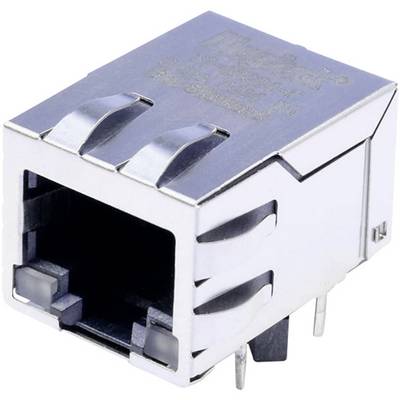

Metallic RJ45 socket connection, rectangular in shape with eight pins, suitable for Ethernet connections.

Circuit diagram shows the wiring between two components with resistors and capacitors. Connection terminals J1-J8 and P2-P8 are labelled.

'Technical drawing of a connector with dimensions and LED indicators in Green/Yellow.'<br><br>Note: This translation is already very close to British English. The key changes are subtle stylistic nuances which are maintained in this version.

1/3

Connector type

Socket, horizontal mount

Connector standard

RJ45

Type

SI-60024-F

Connection

Solder pins

Factory colour

Nickel-coated

Metal

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

1 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 4.03 / piece)

€ 4.03

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Technical specifications

Type: SI-60024-F

Connector type: Socket, horizontal mount

Connector standard: RJ45

Connection: Solder pins

Factory colour: Nickel-coated
Metal

Content: 1 pc(s)

Contact material: Copper alloy gold plated

Seal type: Snap-in

Standards: IEC 60603-7-71

Material (details): Thermoplastic UL94V0/copper alloy

Type: angled

Nominal voltage (details): 150 V AC

Nominal current (details): 150 mA

Type: 10/100Base-TX

Pins: 8P8C

Mating cycles: min. 750

Temperature range: -0 - +70 °C
