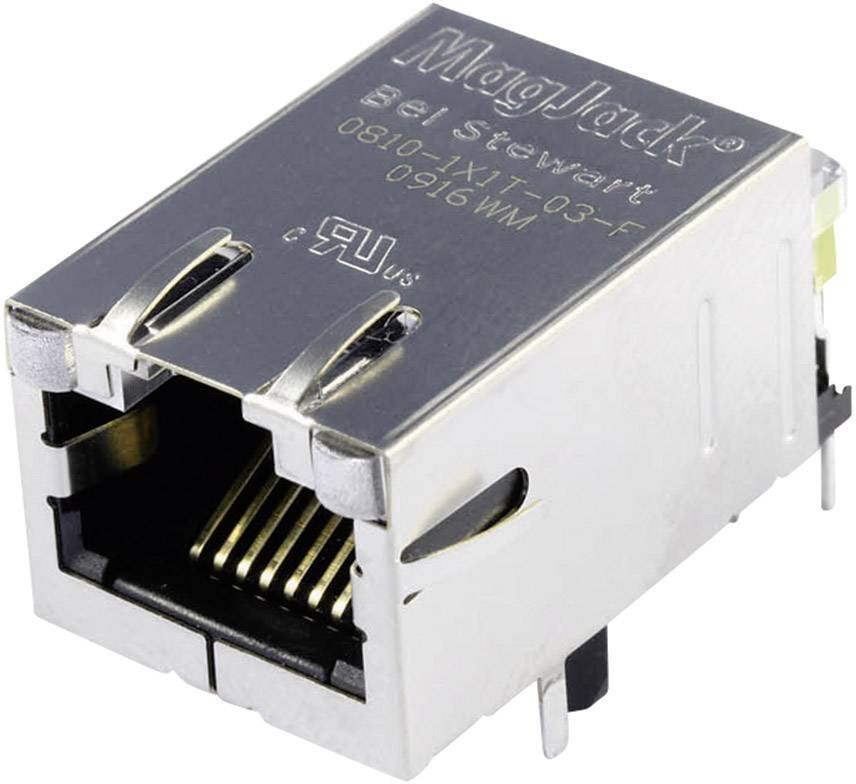

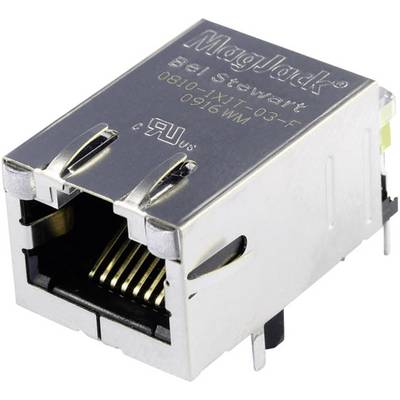

BEL Stewart Connectors MagJack 10/100Base-TX5 transmitter with LEDs 08B0-1X1T-03-F Socket, horizontal mount 10/100Base-T
EAN:
Part number:
Item no:
Connector type
Socket, horizontal mount
Connector standard
RJ45
Type
08B0-1X1T-03-F
Connection
Solder pins
Factory colour
Nickel-coated
Metal
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
Technical specifications
- Type
08B0-1X1T-03-F
- Connector type
Socket, horizontal mount
- Connector standard
RJ45
- Connection
Solder pins
- Factory colour
Nickel-coated
Metal
- Content
1 pc(s)
- Contact material
Copper alloy gold plated
- Seal type
Snap-in
- Standards
IEC 60603-7-71
- Material (details)
Thermoplastic UL94V0/copper alloy
- Type
angled
- Nominal voltage (details)
150 V AC
- Nominal current (details)
150 mA
- Type
10/100Base-TX
- Pins
8P8C
- Mating cycles
min. 750
- Temperature range
-0 - +70 °C
Documents & Downloads
Datasheet
Datasheet 1196188 BEL Stewart Connectors MagJack 10/100Base-TX5 transmitter with LEDs 08B0-1X1T-03-F Socket, horizontal mount 10/100Base-T
