Buy BEL Stewart Connectors MagJack Gigabit Ethernet 8 transmitter with LEDs tab down SI-61001-F Socket, horizontal mount Gig

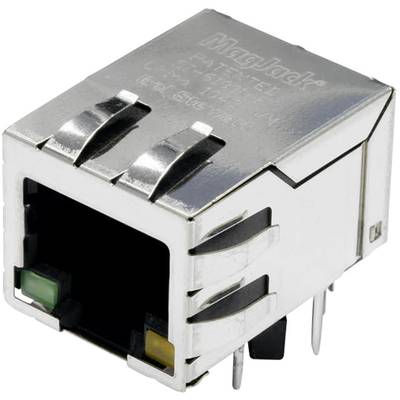

A rectangular RJ-45 Ethernet connector with a metallic housing and LED indicators for network connections.

'Circuit diagram shows several connections from P1 to P10, which are connected to J1 through J8 via resistors. Capacitor 1000pF 2kV in the centre.'

Technical drawing of an RJ45 socket module with dimensions and LED indicators for green and yellow. Side and front views shown.

1/3

Connector type

Socket, horizontal mount

Connector standard

RJ45

Type

SI-61001-F

Connection

Solder pins

Factory colour

Nickel-coated

Metal

Datasheet (PDF)

Fast track dispatch on Thu, 3 Sep

60 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 6.29 / piece)

€ 6.29

plus VAT.

Report legal concerns

Technical specifications

Type: SI-61001-F

Connector type: Socket, horizontal mount

Connector standard: RJ45

Connection: Solder pins

Factory colour: Nickel-coated
Metal

Content: 1 pc(s)

Contact material: Copper alloy gold plated

Seal type: Snap-in

Standards: IEC 60603-7-71

Material (details): Thermoplastic UL94V0/copper alloy

Type: angled

Nominal voltage (details): 150 V AC

Nominal current (details): 150 mA

Type: Gigabit Ethernet

Pins: 8P8C

Mating cycles: min. 750

Temperature range: -0 - +70 °C

Documents & Downloads

Datasheet

Datasheet 1196193 BEL Stewart Connectors MagJack Gigabit Ethernet 8 transmitter with LEDs tab down SI-61001-F Socket, horizontal mount Gig
