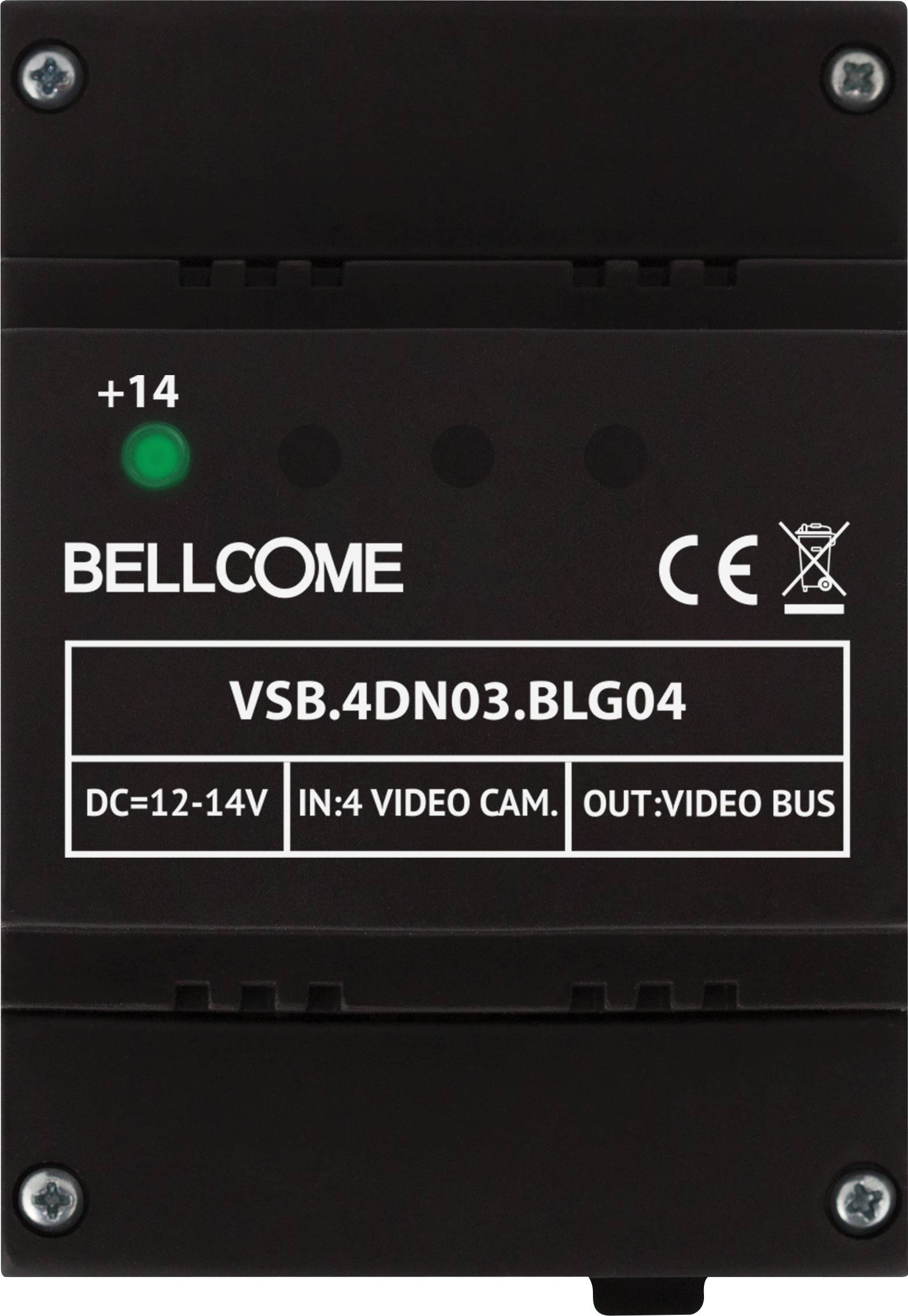

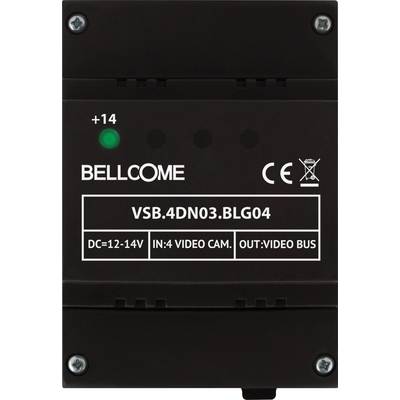

Bellcome Selektor Door intercom accessories Corded Expansion 1-piece Dark grey
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 0.95
€ 23.41
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
14-day return policy included
Technical specifications
- Operating voltage 12 - 14 Vd.c. from the power supply unit
- Recommended cables, depending on the distance between the outdoor unit and the last indoor unit in the installation: 4 x 0.5 mm² - max. 60 M; 4 x 0.75 mm² - max. 150 M; UTP/ FTP cat5e (AWG24) or UTP/FTP cat6 (AWG23) - max. 250 M;
- Operating temperature range 0 to +45°C.
- Product type
Door intercom accessories
- Component
Expansion
- Units
4
- Transfer type
Corded
- Leads
4 (+2 door openers)
- Mounting type (interior)
Surface-mount
DIN rail
- Mounting type (outdoor)
DIN rail
- Material (external)
Acrylonitrile butadiene styrene
- Upgradable with
External extension
- Factory colour
Dark grey
- Type
For up to 4 video cameras
- Max. cable length
250 m
- Width
71 mm
- Height
107 mm
- Depth
73 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2308420 Bellcome Selektor Door intercom accessories Corded Expansion 1-piece Dark grey
Description
The video selector box enables the connection of the door entry systems with additional outdoor units and/or external video cameras.
Connection (front, max.) 4 indoor units
in the video connection box with 4 outputs can be connected a maximum of 4 video / audio indoor units.
The connection box is equipped with short-circuit protection, diagnostics and light signaling of the indoor unit function status at each output. In the event of a short circuit, the respective area is isolated so that the rest of the system remains functional.
The housing is made of ABS and can be mounted on DIN rail or on the surface.
This text is machine translated.
Connection (front, max.) 4 indoor units
in the video connection box with 4 outputs can be connected a maximum of 4 video / audio indoor units.
The connection box is equipped with short-circuit protection, diagnostics and light signaling of the indoor unit function status at each output. In the event of a short circuit, the respective area is isolated so that the rest of the system remains functional.
The housing is made of ABS and can be mounted on DIN rail or on the surface.
This text is machine translated.
System requirements
- Cabling, depending on the distance between the outdoor unit and the last indoor unit in the installation: 4 x 0.5 mm² - max. 60 M; 4 x 0.75 mm² - max. 150 M; UTP/ FTP cat5e (AWG24) or UTP/FTP cat6 (AWG23) - max. 250 M.
