Name: Beltrona MURUS18650VTC4HBG Non-standard battery (rechargeable) 18650 Z solder tab Li-ion 3.6 V 2100 mAh 1 pc(s)
Brand: Beltrona
SKU: 3768023

A roll of light gray adhesive or protective film with cardboard end tabs, shown on a white background.

Image similar

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

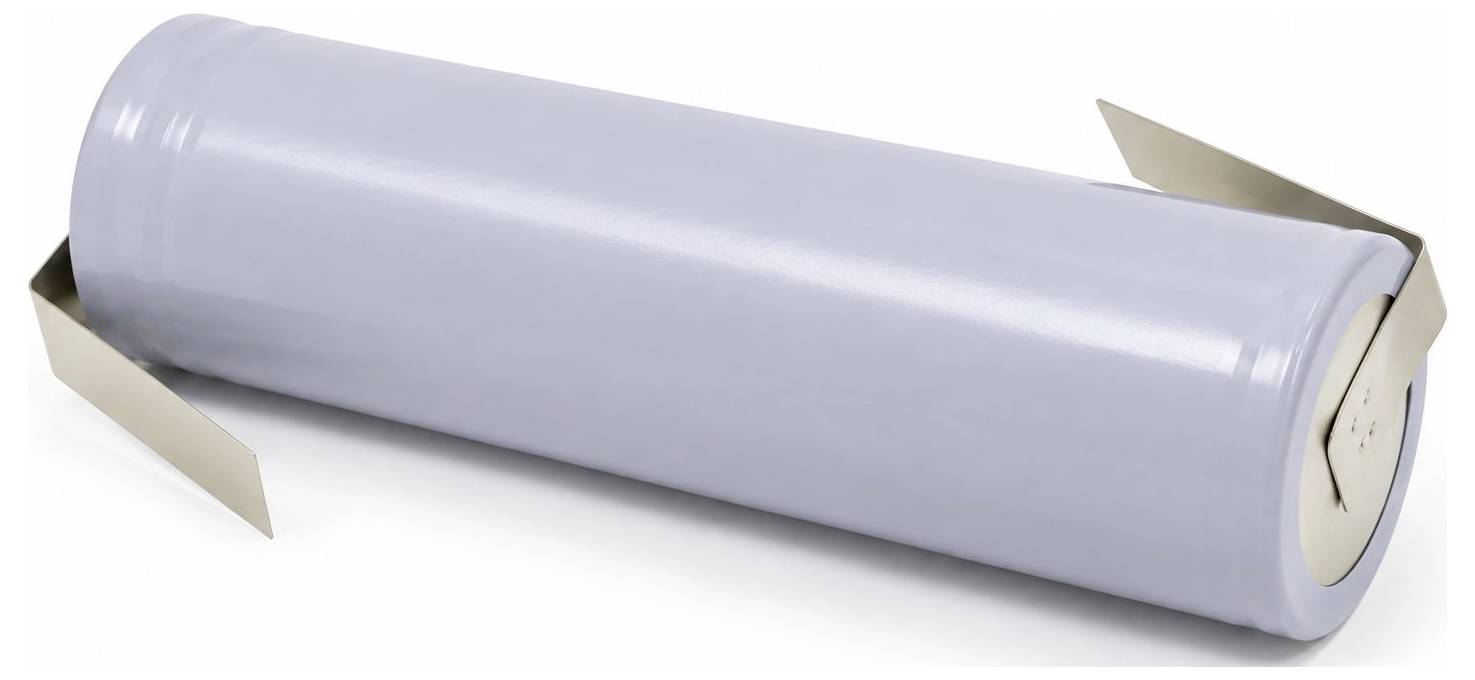

Murata US18650VTC4 with Z soldering tag Li-Ion 3.6V / 2.1Ah

Extremely high current carrying capacity: Up to 30A constant discharge current (during temperature monitoring).
Premium quality from Murata: Highest reliability and cycle strength thanks to the tried and tested VTC4 chemistry.
Ideal high-performance battery: Perfect for power tools, electric bikes, modeling and industrial applications.

Technical specifications

Charging procedure CC-CV (constant current - constant voltage)

Size: 18650

Product type: Non-standard battery (rechargeable)

Technology: Li-ion

Dim: (Ø x H) 18.2 mm x 65 mm

Voltage: 3.6 V

Capacity (mAh, Ah): 2100 mAh

Special-purpose battery features: Z solder tab

Max. charge voltage: 4.2 V

Max. charging current: 4 A

Terminal voltage: 2.5 V

Discharge current (max.): 30 A

Continuous discharge: 20 A

Min. temperature: -20 °C

Max. temperature: 75 °C

Height: 65 mm

(Ø): 18.2 mm

Weight: 45.5 g

Content: 1 pc(s)

Type: MURUS18650VTC4HBG

Rechargeable: Yes

Integrated surge protection: No

Documents & Downloads

Datasheet

Datasheet 3768023 Beltrona MURUS18650VTC4HBG Non-standard battery (rechargeable) 18650 Z solder tab Li-ion 3.6 V 2100 mAh 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3768023 Beltrona MURUS18650VTC4HBG Non-standard battery (rechargeable) 18650 Z solder tab Li-ion 3.6 V 2100 mAh 1 pc(s)

Description

The Murata US18650VTC4 with Z soldering tag is an absolute legend among the high-performance rechargeable batteries. With a capacity of 2100 mAh and an impressive continuous current output of up to 30A, this unprotected cell provides maximum energy exactly when it is needed the most.

This text is machine translated.
