Name: Beltrona PANNCR21700THBG Non-standard battery (rechargeable) 21700 Z solder tab Li-ion 3.6 V 5 Ah 1 pc(s)
Brand: Beltrona
SKU: 3768047

Large roll of light purple vinyl or plastic sheeting with cardboard ends, shown on a white background.

Image similar

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

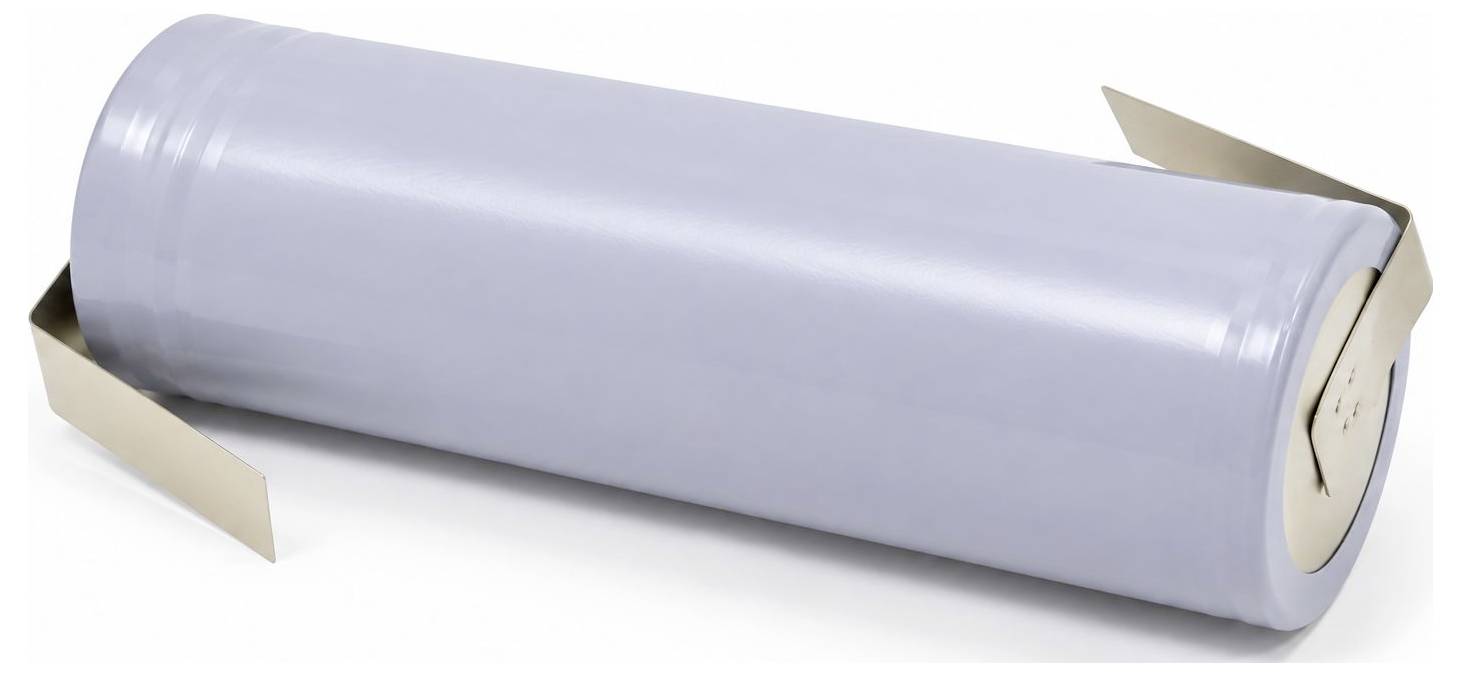

Panasonic NCR21700T with Z soldering tag Li-Ion 3.6V / 5.0 Ah

Enormous energy density: A typical rich 5,000 mAh capacity in the compact 21700 design.
First-class Panasonic quality: High cycle strength and long-life NCR cell chemistry (nickel cobalt aluminum).
Universal flat-top terminal: Ideal for industrial use and for customized battery packs.

Technical specifications

Charging procedure CC-CV (constant current - constant voltage)

Size: 21700

Product type: Non-standard battery (rechargeable)

Technology: Li-ion

Dim: (Ø x H) 21.35 mm x 70.30 mm

Voltage: 3.6 V

Capacity (mAh, Ah): 5 Ah

Special-purpose battery features: Z solder tab

Max. charge voltage: 4.2 V

Max. charging current: 2500 mA

Terminal voltage: 2.5 V

Discharge current (max.): 15 A

Continuous discharge: 10 A

Min. temperature: -20 °C

Max. temperature: 60 °C

Height: 70.30 mm

(Ø): 21.35 mm

Weight: 68 g

Content: 1 pc(s)

Type: PANNCR21700THBG

Rechargeable: Yes

Integrated surge protection: No

Documents & Downloads

Datasheet

Datasheet 3768047 Beltrona PANNCR21700THBG Non-standard battery (rechargeable) 21700 Z solder tab Li-ion 3.6 V 5 Ah 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3768047 Beltrona PANNCR21700THBG Non-standard battery (rechargeable) 21700 Z solder tab Li-ion 3.6 V 5 Ah 1 pc(s)

Description

The Panasonic NCR21700T with Z soldering tag sets new standards in endurance and reliability. With an impressive capacity of 5,000 mAh, this unprotected high-capacity battery is the perfect power source for e-bikes, high-end torches, power banks and demanding model construction projects. Rely on stable performance and maximum energy in the smallest room.

This text is machine translated.
