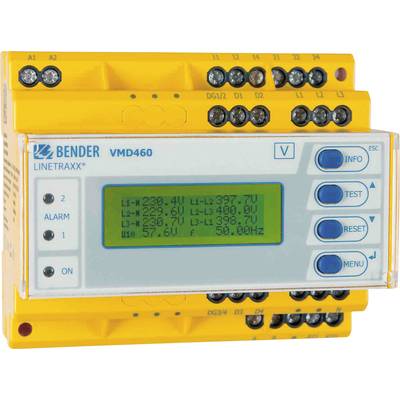

Bender LINETRAXX® VMD460 NA-protection VMD 460
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 604.20 / piece)
€ 604.20
plus VAT.
Only 6 Piece(s) available
Highlights & Details
NA-protection VMD 460
- Independent switching point between a mains parallel production system and the public network
- Use in accordance with Cei 0-21, VDE-AR-N 4105, BDEW directive, C 10/11, G 83/2, DIN V VDE V 0126-1-1
- Universal for generating plants for safe power decoupling
Technical specifications
- Monitored voltage range 0 - 520 V
- Monitored Frequency range 40 - 70 Hz
- Frequency resolution 0.01 Hz
- 10 minutes averaging
- True-RMS effective value measurement
- Sealable clear cover
- Password protection
- Reading range (min.)
0 V
40 Hz
- Type
LINETRAXX® VMD460
- Reading range (max.)
520 V
70 Hz
- Display technology
LCD
- Dim
(L x W x H) 71 x 108 x 90 mm
- Weight
360 g
- Max. operating voltage
300 V AC
- Min. operating voltage
70 V AC
- Width
108 mm
- Height
90 mm
- Length
71 mm
- Power supply (details)
70-300V AC/DC (45-460 Hz)
Documents & Downloads
Datasheet
Datasheet 399104 Bender LINETRAXX® VMD460 NA-protection VMD 460
Datasheet 399104 Bender LINETRAXX® VMD460 NA-protection VMD 460
User & Safety Instructions
User & Safety Instructions 399104 Bender LINETRAXX® VMD460 NA-protection VMD 460
Description
Universal measuring relay for the realization of a network and system protection for a wide range of cases and countries. Simple start-up through default basic programs for country-specific standards and guidelines application area: BHKWs, wind turbines, water power plants, photovoltaic systems.
This text is machine translated.
This text is machine translated.
Features
- Flying Ehlers Safety
- Monitoring of the connected Dome Switch (can be configured: NC/NO/off)
- The island grid detection df/dt (ROCOF)
- Interface RS-485 (software update)
- Simulation function to determine the switch-off time
- Test button for tripping circuit
- Available of the last 300 network faults with time stamp/real-time clock
- Permanent monitoring of the train and outer conductor voltage
- Separate Zuschaltbedingungen after a threshold violation
- Test button for tripping circuit
- Remote Shutdown via round control signal receiver
- Language selection (English, German, Italian)
- Backlit graphic display
- Password protection for device setting
- Sealable Housing
- Signal relay 2 x 1 changeover contact 5 A/230 V.
