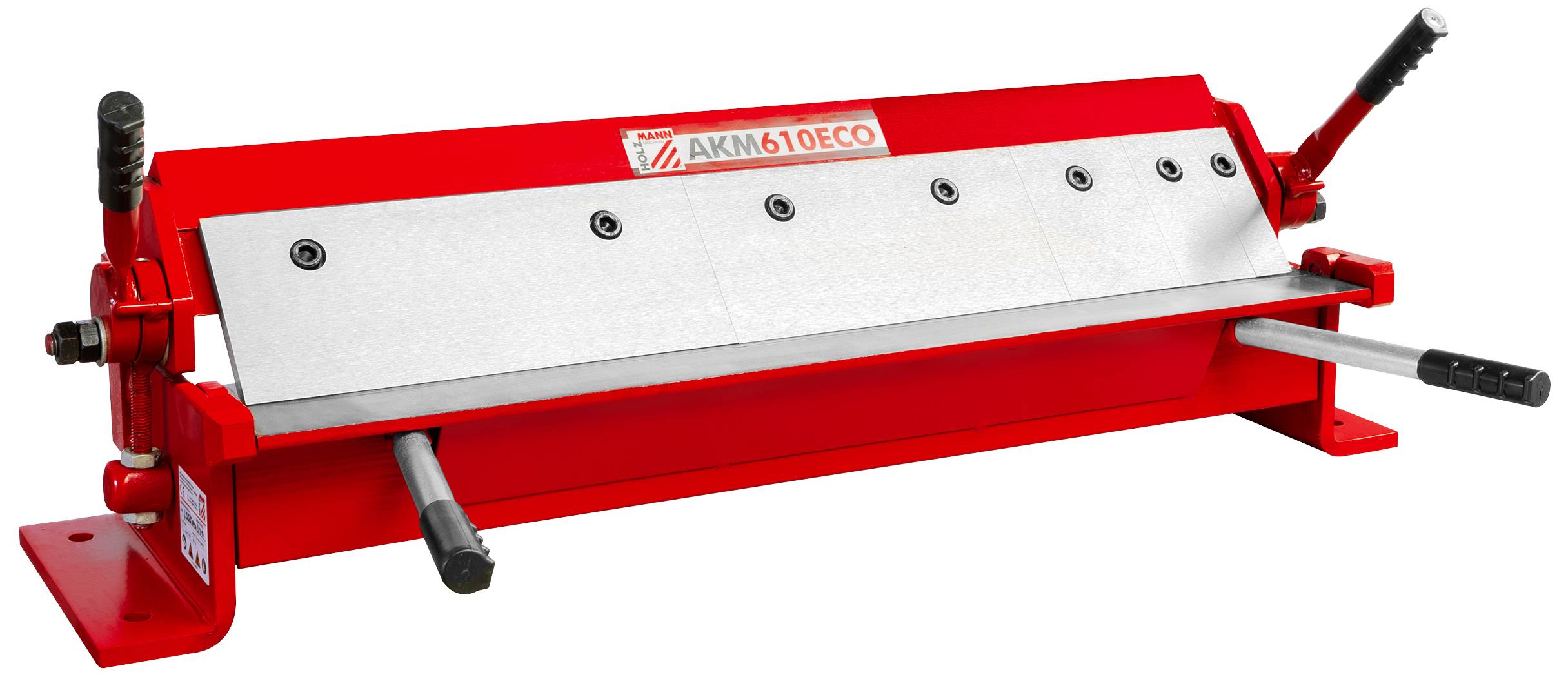

A red metal cutting machine with multiple levers and blades, used for processing sheet metal.

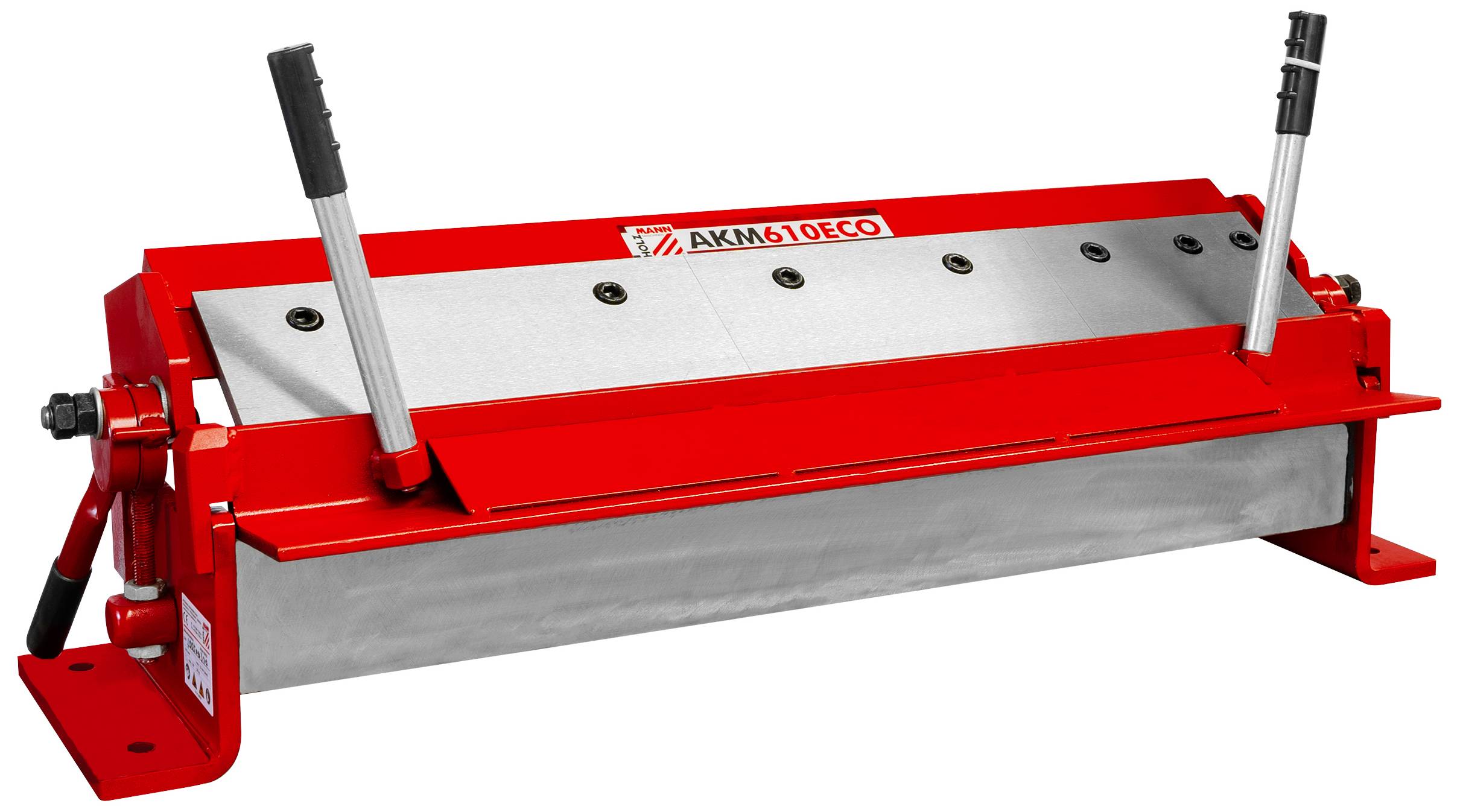

Red metal bending machine with two levers on a workbench.

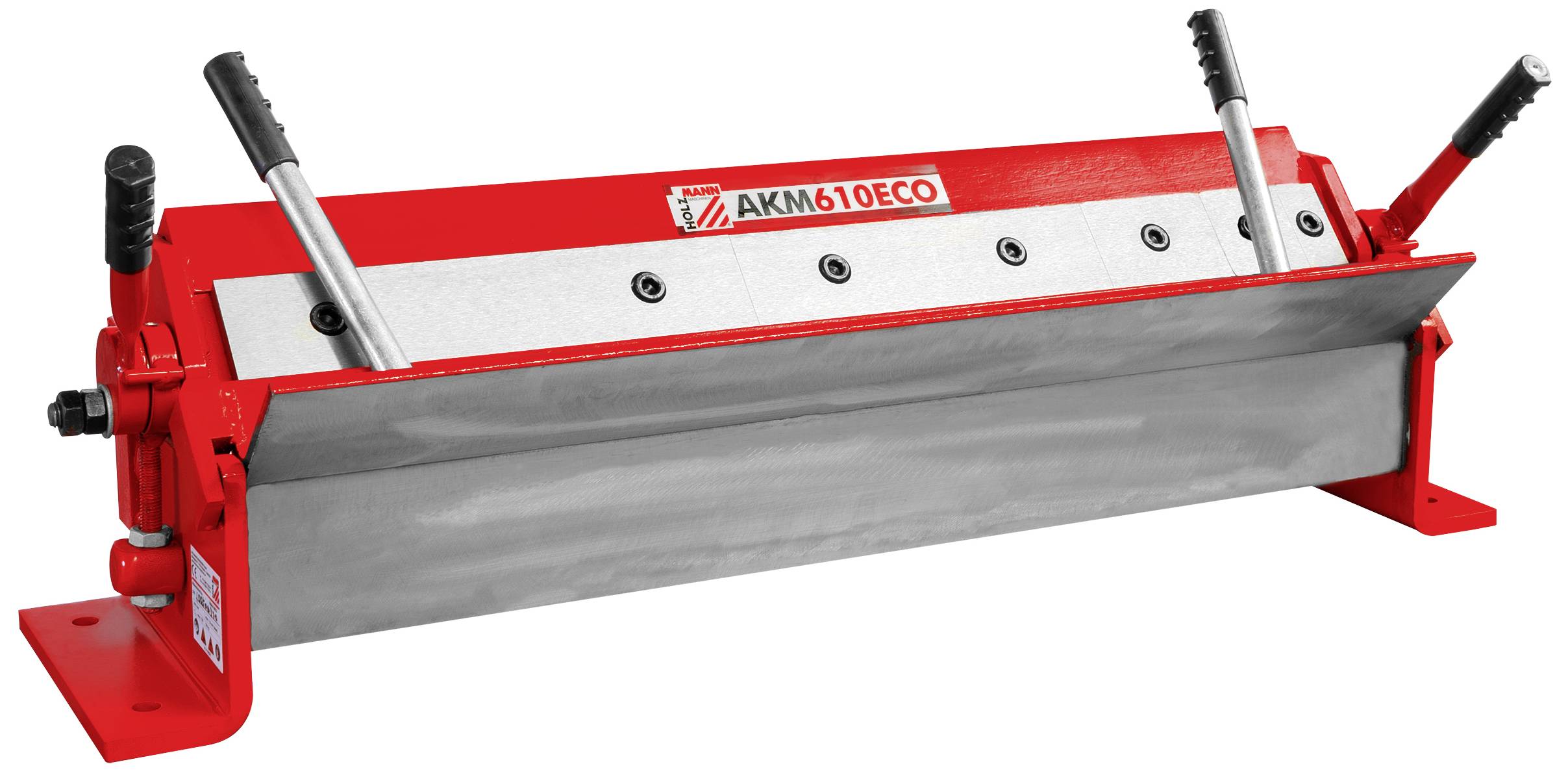

Red metal bending machine with multiple levers and screws, model 'AKM610ECO'. Used for bending metal plates.

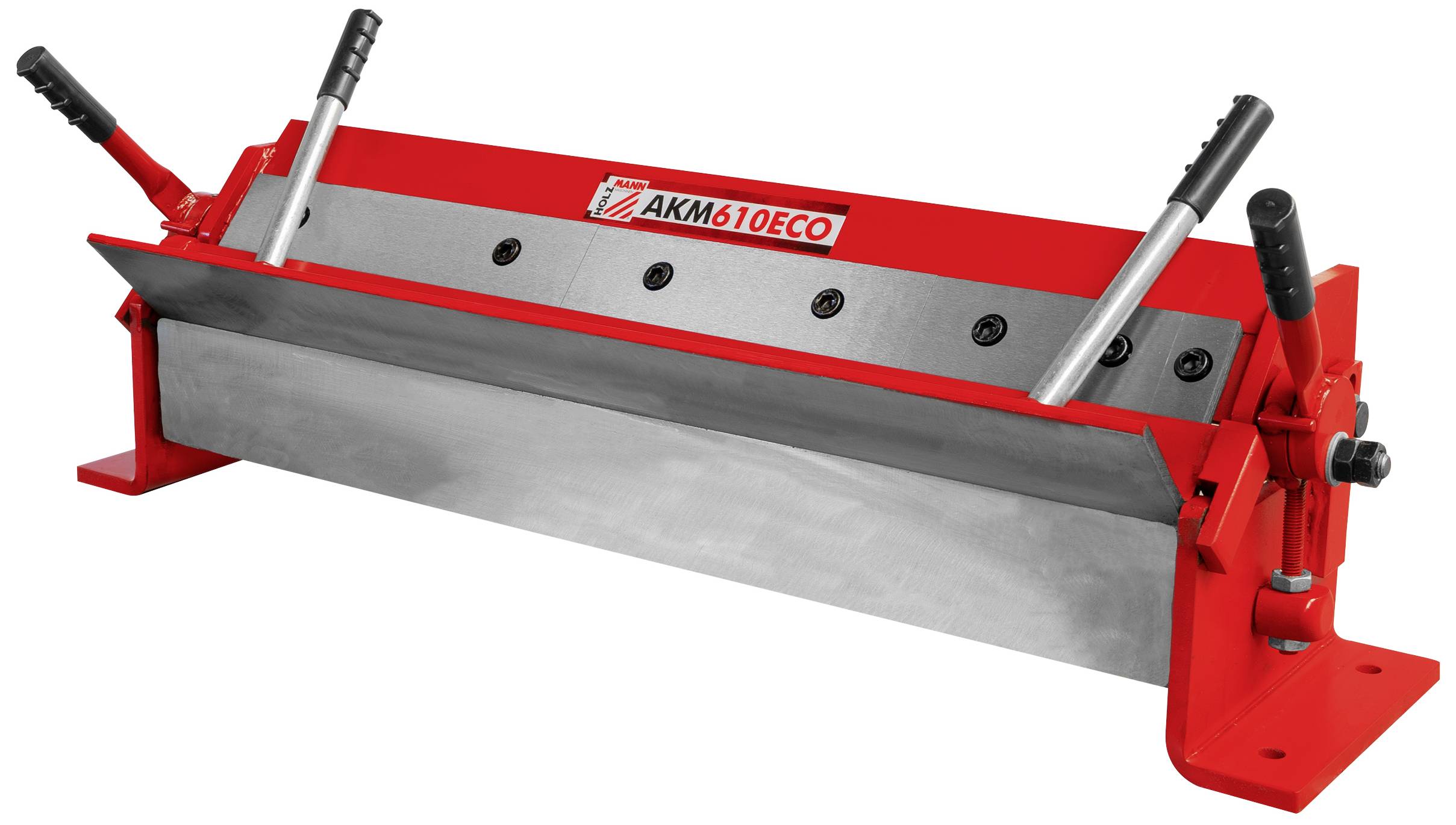

Red sheet metal bending machine with black handles and metal blade, model 'AKM610ECO'. Used for precise bending of metal sheets.

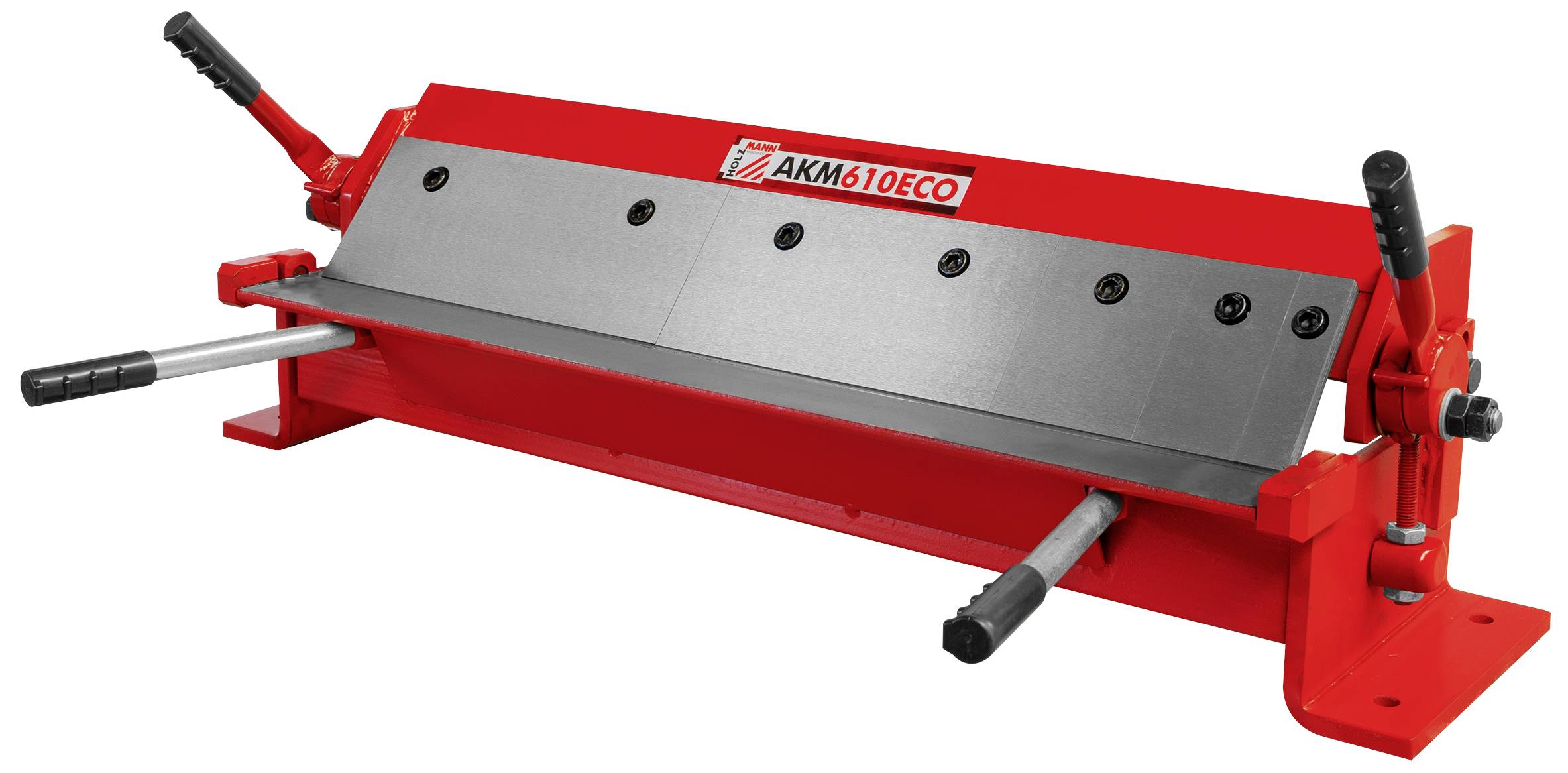

A red metal bending machine for metalworking, Model AKM610ECO, with levers on both sides for operation.

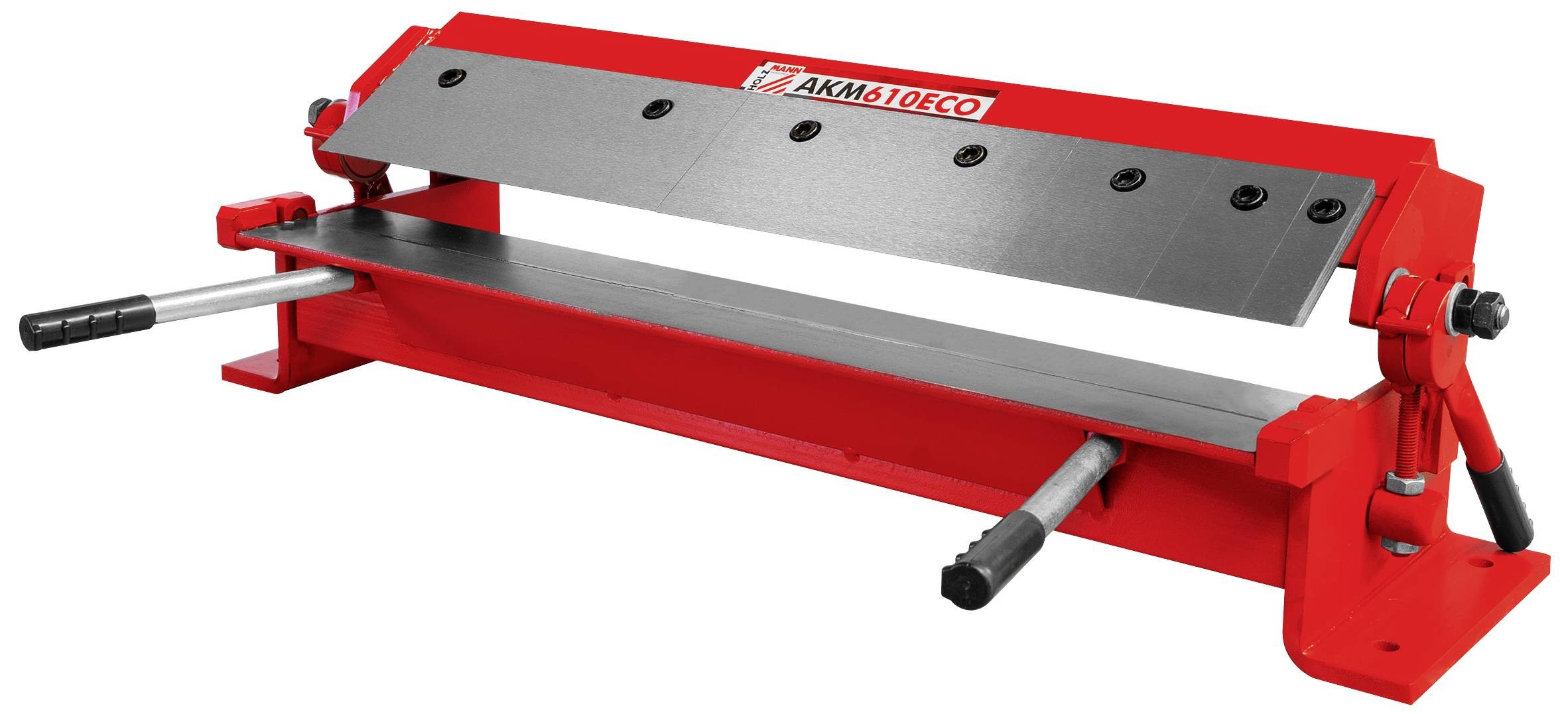

Red sheet metal bending machine on a white background, with lever arms on both sides, suitable for forming metal sheets.

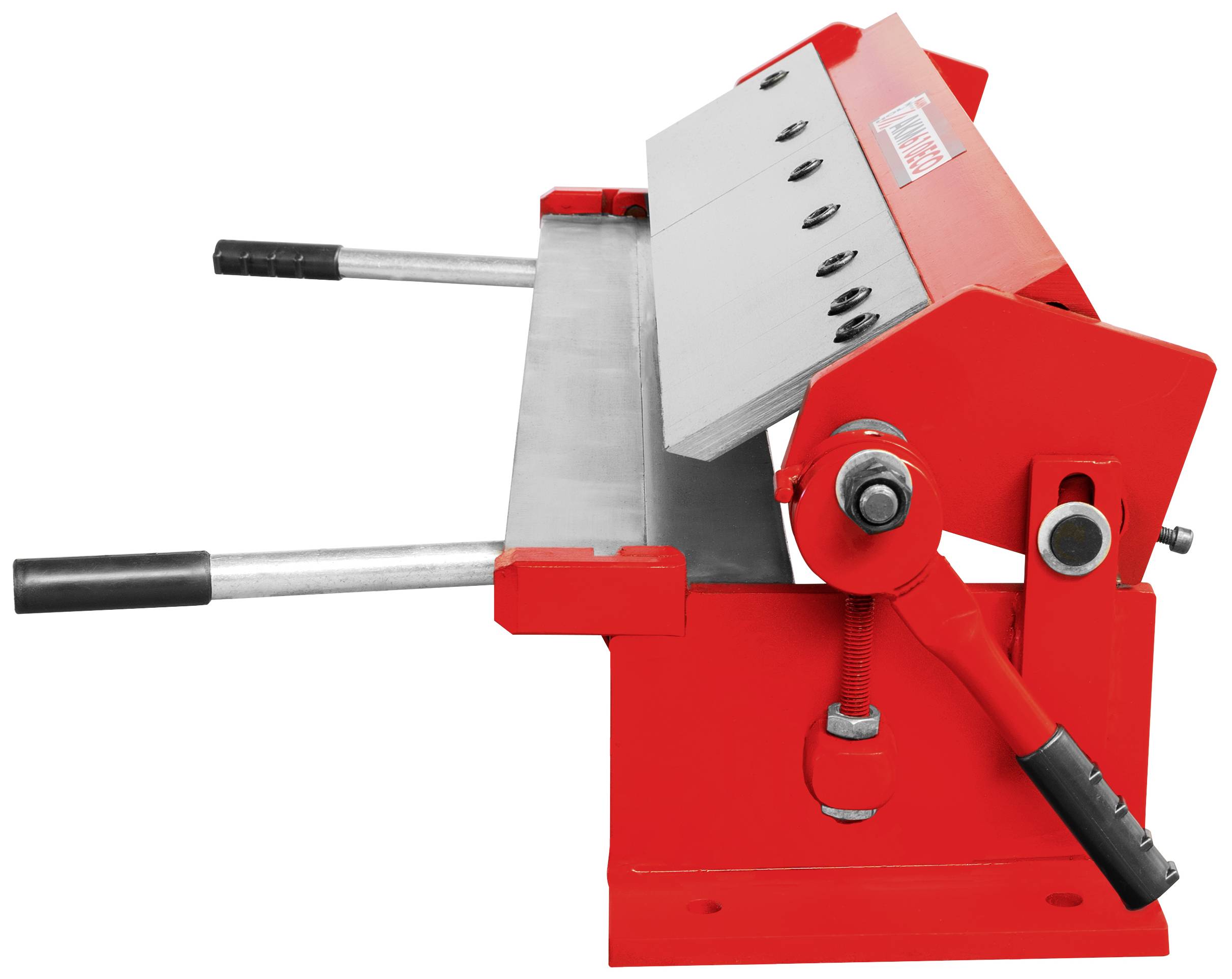

Red sheet metal bending machine with hand crank, used for forming and bending metal sheets in workshops or industrial settings.

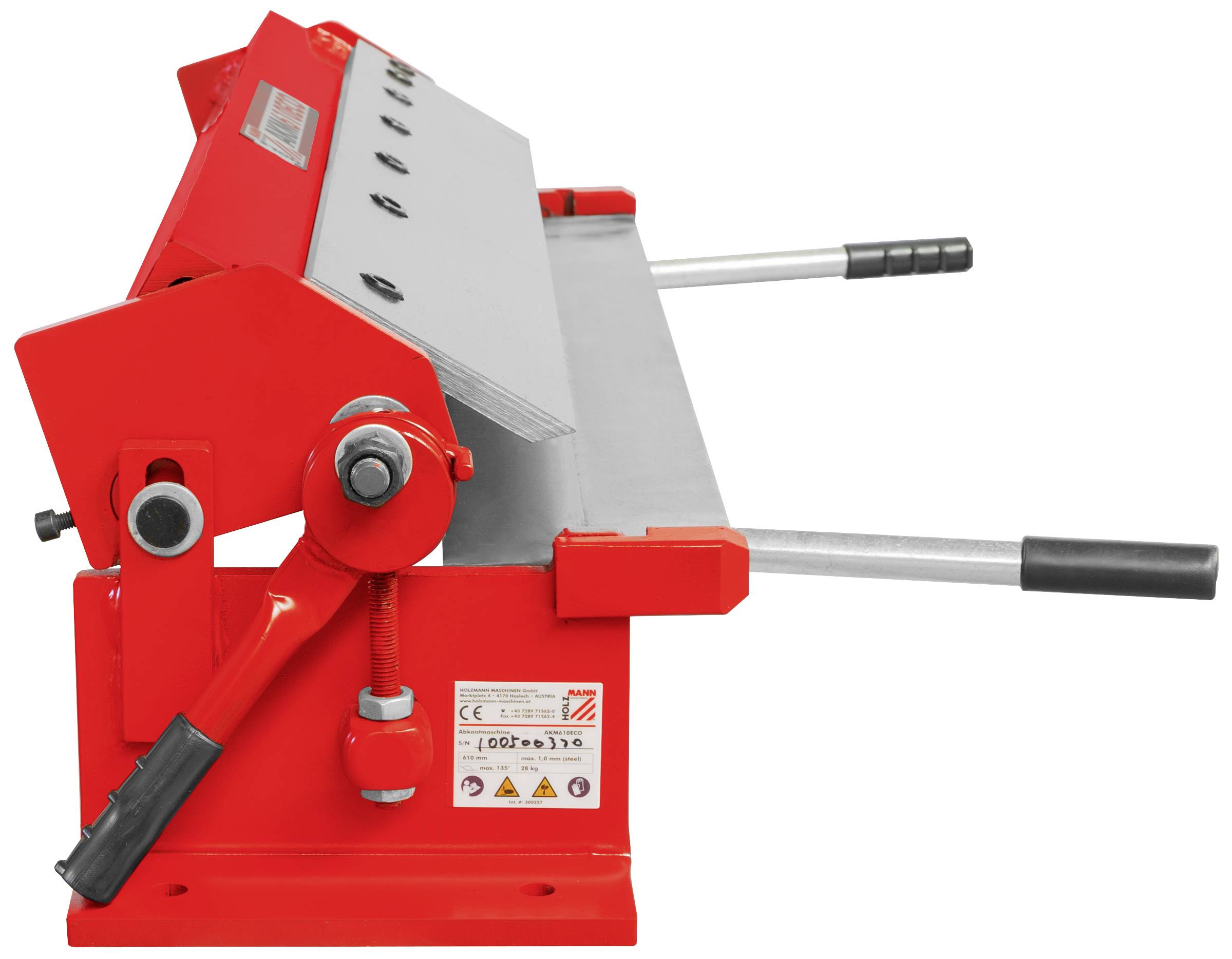

A red, manual metal bending machine with levers and a flat working surface, suitable for shaping metal sheets.

1/9

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 247.90 / piece)

€ 247.90

plus VAT.

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Bending machine

Solid construction with high-quality angled elements for the highest level of precision
Convenient eccentric clamping system
Segmented upper bending unit with different width bending elements (1", 2",3", 8",10") for different workpiece sizes
Bending elements can be moved and joined together as required
Fixing holes for installation on a workbench or suitable machine stand

Technical specifications

Max. Opening width in mm 43
Max. Bending angle 135 °
Weight 28 kg.

Product type: Bending tool

Working width: 600 mm

Dim: (W x H x D) 760 x 290 x 390 mm

Width: 760 mm

Height: 290 mm

Depth: 390 mm

Strength (max.): 1 mm

Documents & Downloads

Datasheet

Datasheet 3219028 Bending machine Holzmann Maschinen AKM610ECO

User & Safety Instructions

User & Safety Instructions 3219028 Bending machine Holzmann Maschinen AKM610ECO

Description

The HOLZMANN folding machine AKM610ECO enables manual bending down up to 1.0mm sheet thickness. Thanks to its solid construction and the segmented top bending unit, you can produce excellent workpieces here.
