Benning CC 4-1 Clamp meter adapter Calibrated to (DAkkS standards) A/AC reading range: 1 - 1200 A
EAN:
Part number:
Item no:
Highlights & Details
AC-Precision clip-on ammeter adapter DAkkS
- N/A
- Opening range of current clamps 52 mm
Technical specifications
- Current 100 μA - 1200 A AC
- Opening range of current clamps
52 mm
- Product type
Clamp meter adapter
- Type B
4 mm plug
DAkkS standards
- A AC reading range (min.)
1 A
- Amperage reading range AC (max.)
1200 A
- Basic accuracy
0.5% - 3 %
- Current reading
AC
- Reading category
CAT III 600 V
- Output signal (max.)
1 mA
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2743205 Benning CC 4-1 Clamp meter adapter Calibrated to (DAkkS standards) A/AC reading range: 1 - 1200 A
Description

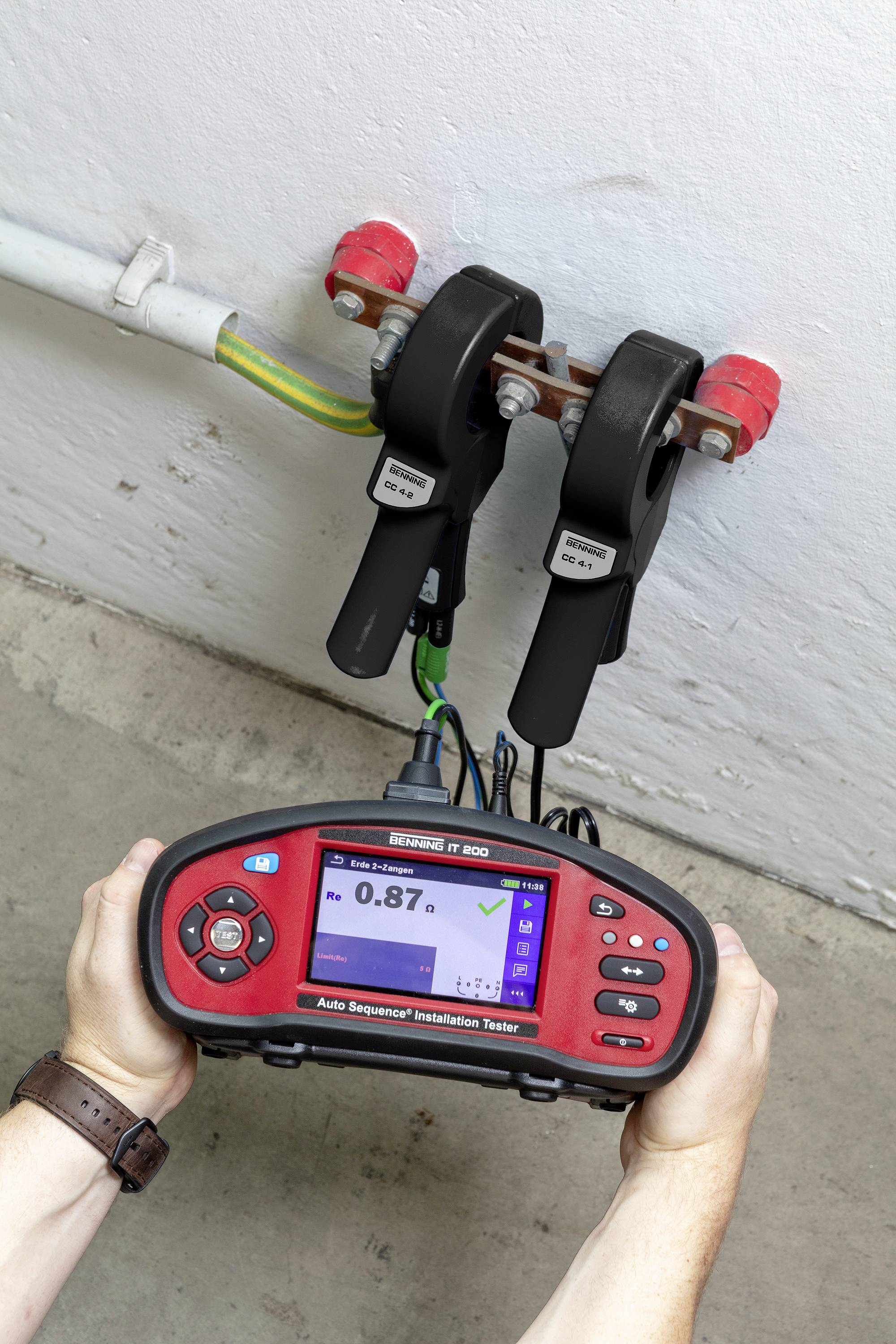

The TRUE RMS current clamp adapter offers different measurement options in combination with different types of measurement devices. The IT 200 installation tester makes the most of measuring possibilities. The stakeless earth ground loop resistance measurement (earth loop resistance measurement), TRUE RMS current measurement, power and harmonics measurement as well as the precise measurement of leakage, leakage, ground conductor and load currents. Also with digital multimeters it is possible to measure a precise recording of small currents in the mA-range as well as TRUE RMS currents of up to 1000 A AC. The output is via test leads with 4 mm safety plug (output 1 mA / 1 A). The large jaw opening of max. 52 mm and measurement category CAT III 600 V round off the features.
This text is machine translated.
This text is machine translated.
Features
- TRUE RMS current clamp adapter for current, power and earth resistance measurementSafe AC measurements up to 1200 A.Output 1 mA / 1 A
