Benning CC 4-2 Clamp meter adapter Calibrated to (ISO standards) A/AC reading range: 1 - 1200 A
EAN:
Part number:
Item no:
Highlights & Details
AC clip-on ammeter adapter ISO
- N/A
- Opening range of current clamps 52 mm
Technical specifications
- Current 200 mA - 1200 A AC
- Opening range of current clamps
52 mm
- Product type
Clamp meter adapter
- Type B
4 mm socket
ISO standards
- A AC reading range (min.)
1 A
- Amperage reading range AC (max.)
1200 A
- Basic accuracy
0.7% - 2.5 %
- Current reading
AC
- Reading category
CAT III 600 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2743437 Benning CC 4-2 Clamp meter adapter Calibrated to (ISO standards) A/AC reading range: 1 - 1200 A
Description

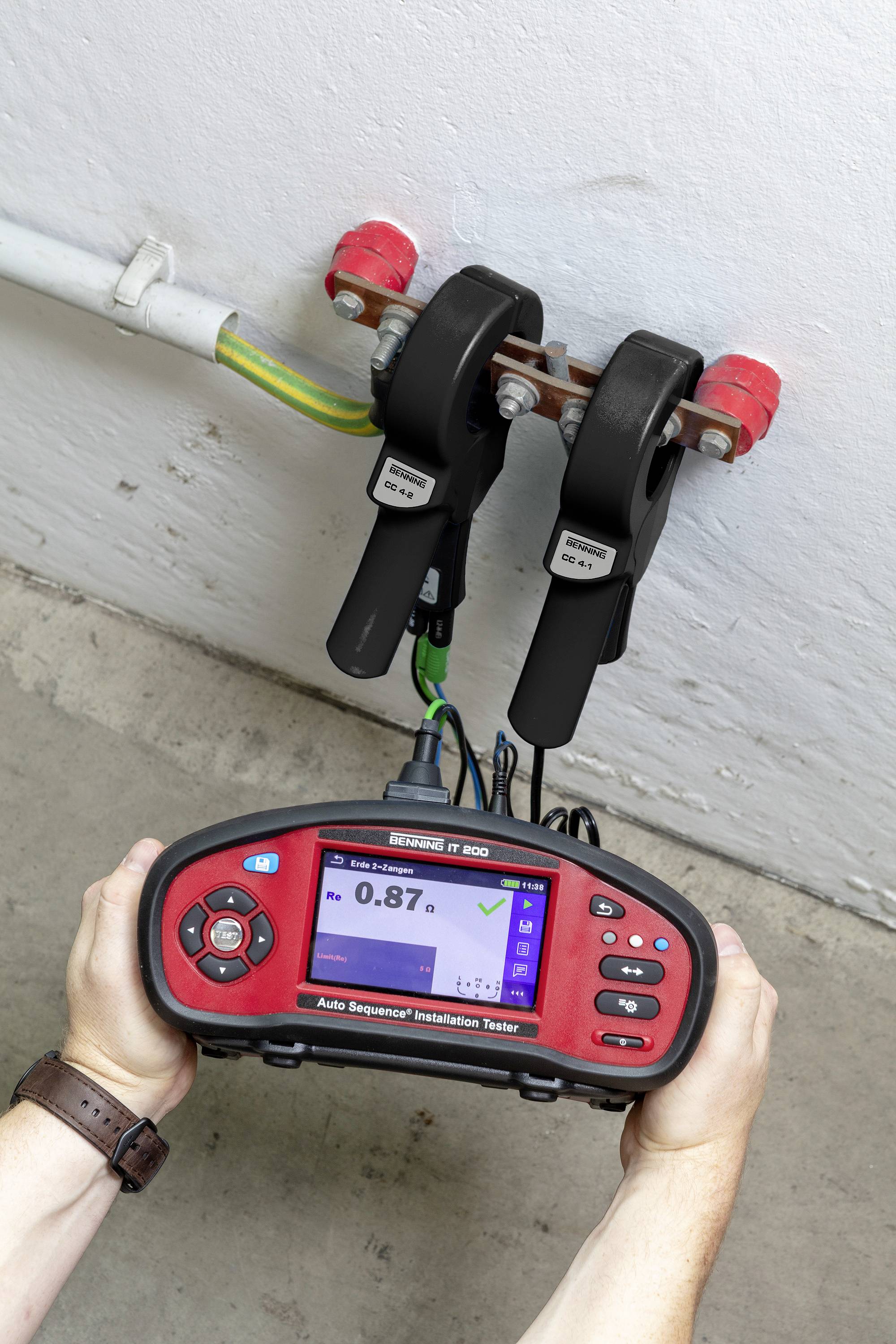

The TRUE RMS current clamp adapter offers different measurement options in combination with different types of measurement devices. The IT 200 installation tester makes the most of measuring possibilities. The stakeless earth ground measurements (earth resistance measurement), TRUE RMS current measurement as well as power and harmonic measurement. Even with digital multimeters, it is possible to capture TRUE RMS currents of up to 1000 A AC. The output is via 4 mm safety sockets (output 1 mA / 1 A). The large jaw opening of max. 52 mm and measurement category CAT III 600 V round off the features.
This text is machine translated.
This text is machine translated.
Features
- TRUE RMS current clamp adapter for current, power and earth resistance measurementSafe AC measurements up to 1200 A.Output 1 mA / 1 A
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
