Buy Benning IT 105 + SDT 1 VDE tester

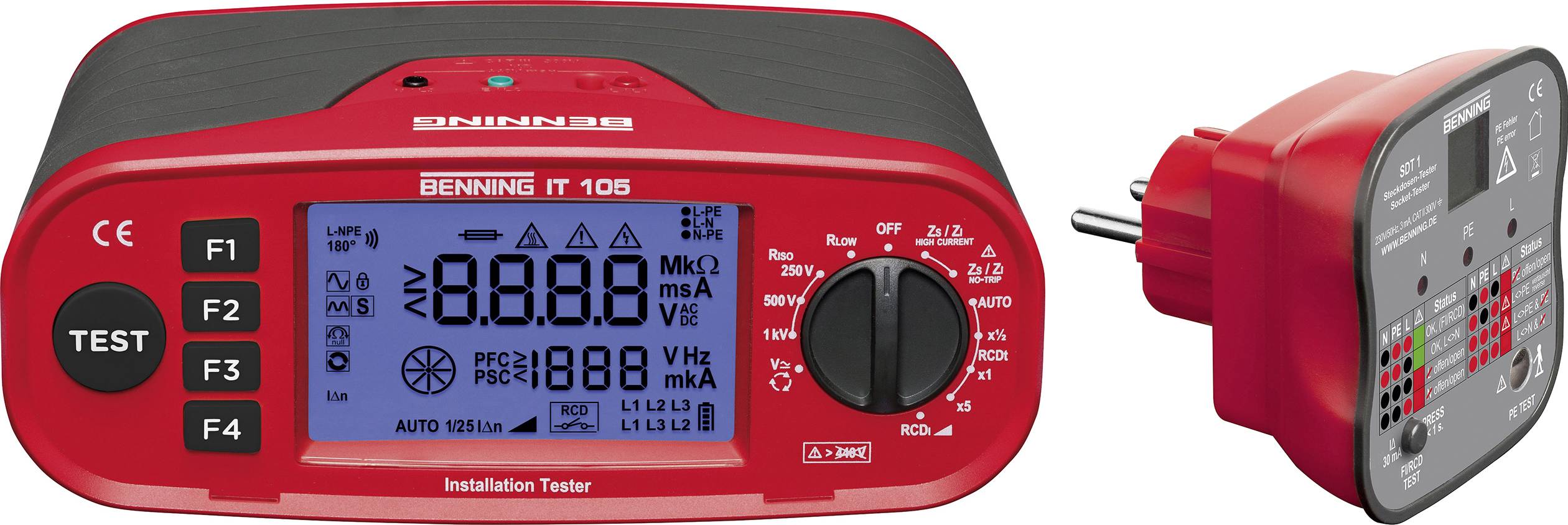

Digital installation testing device with display and multiple buttons on the left, plug adapter on the right. Device shows measurement values and symbols.

A red socket adapter with two round plugs.

A red socket tester device with indicator lights for checking electrical circuits for safety and functionality.

A digital testing device with a blue-illuminated display and various cables lies beside a black plastic case.

A hand holds a testing device against a power socket. The device displays test results with coloured LED indicators.

A hand is holding a testing device against a socket to check its functionality. The device displays various LED lights for status indicators.

A hand holds a testing device against a wall socket. The device displays electrical safety results through coloured LEDs.

A red installation testing device with a digital display shows '0.68' and '338 A'. It is lying on a desk next to a monitor and a mouse.

A person is using a red installation measuring device to measure the voltage in an open fuse box. The display shows '200V' and '117V'.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Installation tester IT 105 + Benning Socket Tester SDT 1

Testing of electrical installations according to VDE 0100/0105 and IEC 60364
Low-ohm resistance of protective conductor and equipotential bonding conductor connections (test current 200 mA)
Insulation resistance with a test voltage of 250 V, 500 V and 1000 V
Loop impedance (L-PE) without (FI/RCD trip) with simultaneous display of the no-fault current (PFC)
Line impedance (L-N/L) with a high test current (HIGH CURRENT) with simultaneous display of the short-circuit current (PSC)
Testing of FI/RCD protection switch, standard and delayed (S) with sinusoidal AC and pulsating test current (A)
Automatic measurement of the trip time (. x, 1 x and 5 x IΔN) and of tripping current in the ramp procedure
Voltage and frequency measurement up to 440 V
Check rotating field direction in rotary current grids (L1-L2-L3)

Technical specifications

Product type: VDE tester

: Manufacturer's standards (no certificate)

Type: IT 105 + SDT 1

Documents & Downloads

Datasheet

Datasheet 2140953 Benning IT 105 + SDT 1 VDE tester

User & Safety Instructions

User & Safety Instructions 2140953 Benning IT 105 + SDT 1 VDE tester

Information

Information 2140953 Benning IT 105 + SDT 1 VDE tester

Conformity certificate

Conformity certificate 2140953 Benning IT 105 + SDT 1 VDE tester

Description

Installation tester IT 105:
Technical safety testing of electrical equipment after installation, modification or as a regular re-examination can be carried out with the BENNING IT 105 simply and rationally.

Socket Tester SDT 1:
Fast, simple testing of safety sockets to the correct connection. Wiring error (unique display via 3 LED of missing PE, N, L-conductor, interchanging of the L and PE conductor). Active PE-Test with the contact electrode, LCD warns of the presence of dangerous contact voltage at the protective conductor (PE). Test button for triggering 30 mA FI/RCD protection switch.
