Benning PV-S 1500 PV tester
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 427.73 / piece)
€ 427.73
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Benning PV-S 1500 PV tester
- Short circuit switch 1500V PV-Systems, idle voltage Short-circuit current insulation
Technical specifications
- Max. Voltage of measuring circuit category 1500 V
- Solar irradiation measurement: No.
- Measured value memory: No.
- Polarity check: No.
- Temperature measurement: No.
- Product type
PV tester
Manufacturer's standards (no certificate)
- Dim
(W x H) 94.0000 mm x 179.0000 mm
- Weight
0.7000
- Width
94.0000 mm
- Height
179.0000 mm
94 mm
82 mm
0.7 kg
FALSE
FALSE
FALSE
179 mm
0.7 kg
CAT III
IP66
FALSE
1500 V
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
0 %
Documents & Downloads
Datasheet
Datasheet 3730914 Benning PV-S 1500 PV tester
User & Safety Instructions
User & Safety Instructions 3730914 Benning PV-S 1500 PV tester
Description

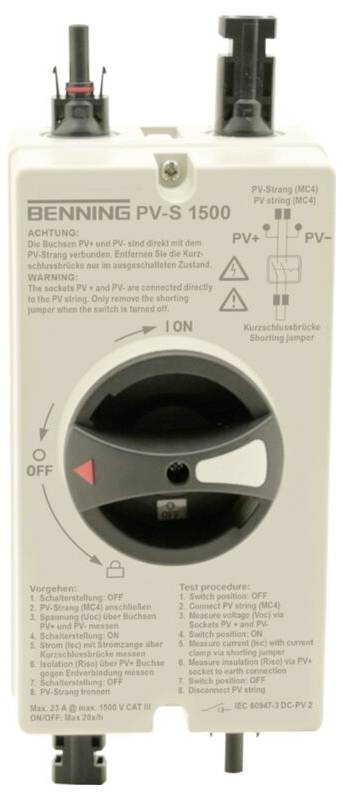

Photovoltaic short circuit switch - Benning PV-S 1500
Suitable for solar energy companies (initial start-up, repeat testing), photovoltaic experts as well as service, cleaning and maintenance teams
Application: Photovoltaic short circuit switches for the installation and periodic testing of mains-coupled photovoltaic systems up to 1500 V. Simple operation for safe and reliable testing. Idle voltage (Uo/c) up to 1500 V DC from 4 mm safety sockets, measurable (optional Benning CM 3-PV, Art.-No. 11001235), short circuit current (Is/c) up to 23 A DC (at 1500 V) safely switch, measurable via short circuit bridge (MC4 compatible) and clip-on ammeter, insulation resistance (Riso) via 4 mm safety plug (optional Benning IT 100, Art.-No. 044107), insulation resistance can be measured in the case of short-circuit and in the idle state of the PV line.
Special features: Robust polycarbonate casing material, lockable off position to prevent unauthorized operation, connection of the PV line via MC4 compatible plug connectors, 4 mm safety sockets for measuring the open-circuit voltage and the insulation resistance, short-circuit bridge with MC4 compatible plug-type connectors. Measurement category CAT IV 1000 V, CAT III 1500 V. Safety standard IEC / DIN EN 60947-3 (VDE 0660-107).
This text is machine translated.
Suitable for solar energy companies (initial start-up, repeat testing), photovoltaic experts as well as service, cleaning and maintenance teams
Application: Photovoltaic short circuit switches for the installation and periodic testing of mains-coupled photovoltaic systems up to 1500 V. Simple operation for safe and reliable testing. Idle voltage (Uo/c) up to 1500 V DC from 4 mm safety sockets, measurable (optional Benning CM 3-PV, Art.-No. 11001235), short circuit current (Is/c) up to 23 A DC (at 1500 V) safely switch, measurable via short circuit bridge (MC4 compatible) and clip-on ammeter, insulation resistance (Riso) via 4 mm safety plug (optional Benning IT 100, Art.-No. 044107), insulation resistance can be measured in the case of short-circuit and in the idle state of the PV line.
Special features: Robust polycarbonate casing material, lockable off position to prevent unauthorized operation, connection of the PV line via MC4 compatible plug connectors, 4 mm safety sockets for measuring the open-circuit voltage and the insulation resistance, short-circuit bridge with MC4 compatible plug-type connectors. Measurement category CAT IV 1000 V, CAT III 1500 V. Safety standard IEC / DIN EN 60947-3 (VDE 0660-107).
This text is machine translated.
Scope of delivery
- PV - Short circuit breaker
- Short-circuit bridge MC4 compatible
