Benning SUN 3 PV tester
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 735.29 / piece)
€ 735.29
plus VAT.
Only 5 Piece(s) available
Highlights & Details
Benning SUN 3 PV tester
- Radiation and temperature gauge. Data logger LoRa radio USB. Incl. accessories
Technical specifications
- Max. Voltage of measuring circuit category 0 V
- Solar irradiation measurement: Yes
- Measured value memory: Yes
- Polarity check: No.
- Temperature measurement: Yes
- Product type
PV tester
- Reading type
Temperature
Manufacturer's standards (no certificate)
- Dim
(W x H) 80.0000 mm x 150.0000 mm
- Weight
0.3500
- Width
80.0000 mm
- Height
150.0000 mm
80 mm
33 mm
0.34 kg
TRUE
TRUE
FALSE
150 mm
Battery
0.35 kg
IP40
TRUE
USB
0 V
FALSE
FALSE
FALSE
TRUE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
0 %
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3730911 Benning SUN 3 PV tester
User & Safety Instructions
User & Safety Instructions 3730911 Benning SUN 3 PV tester
User & Safety Instructions 3730911 Benning SUN 3 PV tester
Description
Benning SUN 3
Radiation and temperature gauge.
Suitable for solar energy companies (initial start-up, periodic testing, error search, cost-effectiveness monitoring), photovoltaic experts as well as service and maintenance teams.
Ideal for planning and support of the start-up and repeat testing of mains-coupled PV-systems according to VDE 0126-23 (DIN EN 62446) as well as for testing of thermal solar systems (solar thermal).

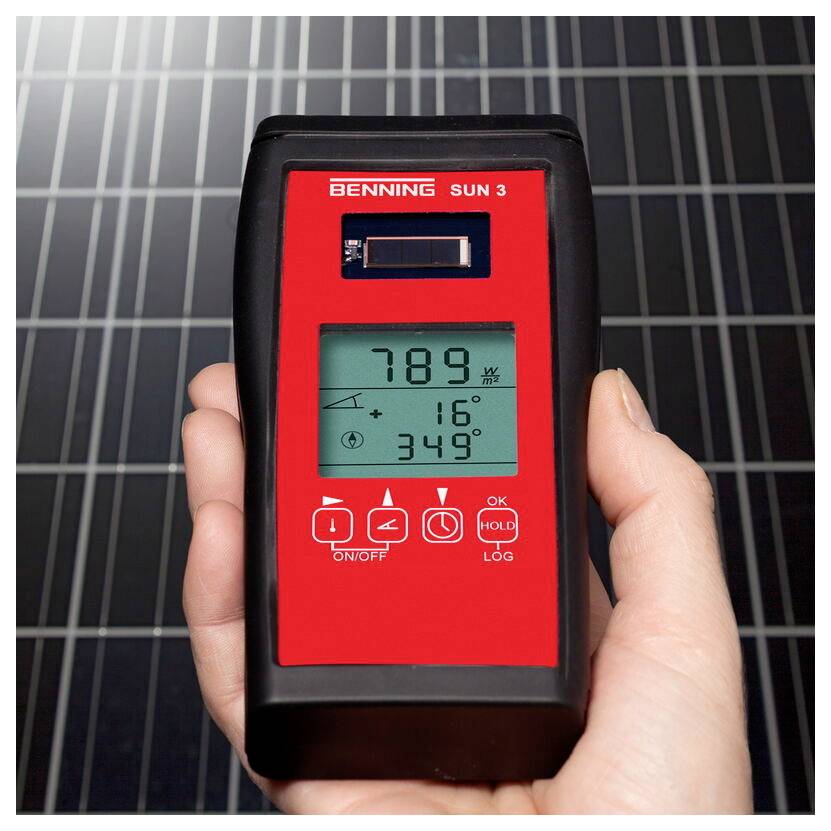

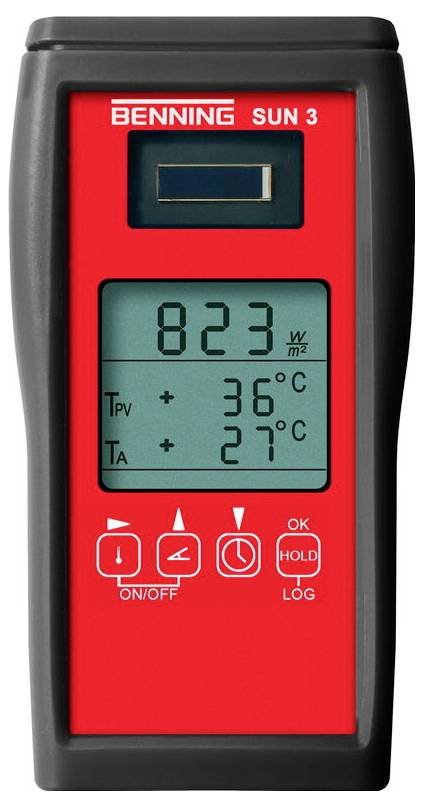

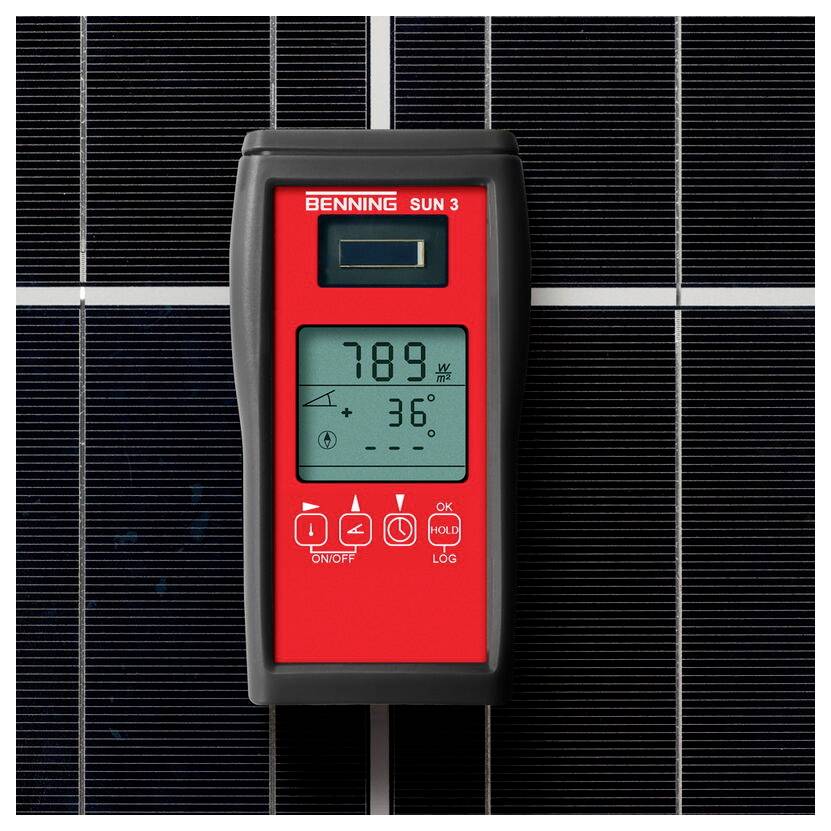

Measurements: Solar radiation (radiation intensity) in W/m2, PV module and ambient temperature, digital compass for determining the direction of the compass, inclination angle meter for determining the roof/module inclination. Special features: Calibrated photovoltaic reference cells for accurate measurement of solar radiation, 2-channel temperature sensor for PV module and ambient temperature, loRa wireless connection with a long range (approx. 150 m outdoors) and coupling to PV installation tester Benning PV 125 (Part No. 10241491, optional), data logger with real-time clock and adjustable measurement interval (1 min. Up to 60 min) For the storage of 5,000 data sets (radiation intensity, module/ambient temperature, date/time stamp), USB-interface for data download in csv format.
This text is machine translated.
Radiation and temperature gauge.
Suitable for solar energy companies (initial start-up, periodic testing, error search, cost-effectiveness monitoring), photovoltaic experts as well as service and maintenance teams.
Ideal for planning and support of the start-up and repeat testing of mains-coupled PV-systems according to VDE 0126-23 (DIN EN 62446) as well as for testing of thermal solar systems (solar thermal).
Measurements: Solar radiation (radiation intensity) in W/m2, PV module and ambient temperature, digital compass for determining the direction of the compass, inclination angle meter for determining the roof/module inclination. Special features: Calibrated photovoltaic reference cells for accurate measurement of solar radiation, 2-channel temperature sensor for PV module and ambient temperature, loRa wireless connection with a long range (approx. 150 m outdoors) and coupling to PV installation tester Benning PV 125 (Part No. 10241491, optional), data logger with real-time clock and adjustable measurement interval (1 min. Up to 60 min) For the storage of 5,000 data sets (radiation intensity, module/ambient temperature, date/time stamp), USB-interface for data download in csv format.
This text is machine translated.

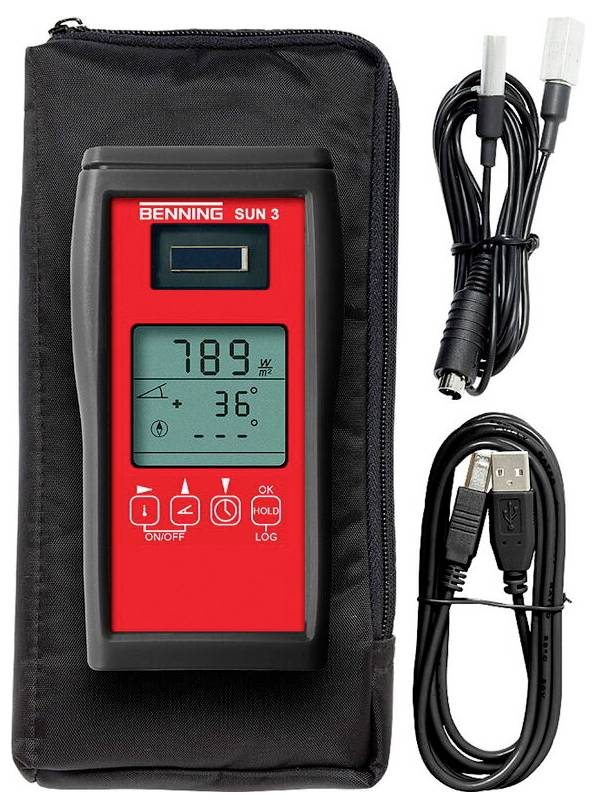

Scope of delivery
- Includes bag
- Protective rubber surround
- Module and ambient temperature sensor
- 2 x 1.5 V AA/LR6 batteries
- USB cable.
