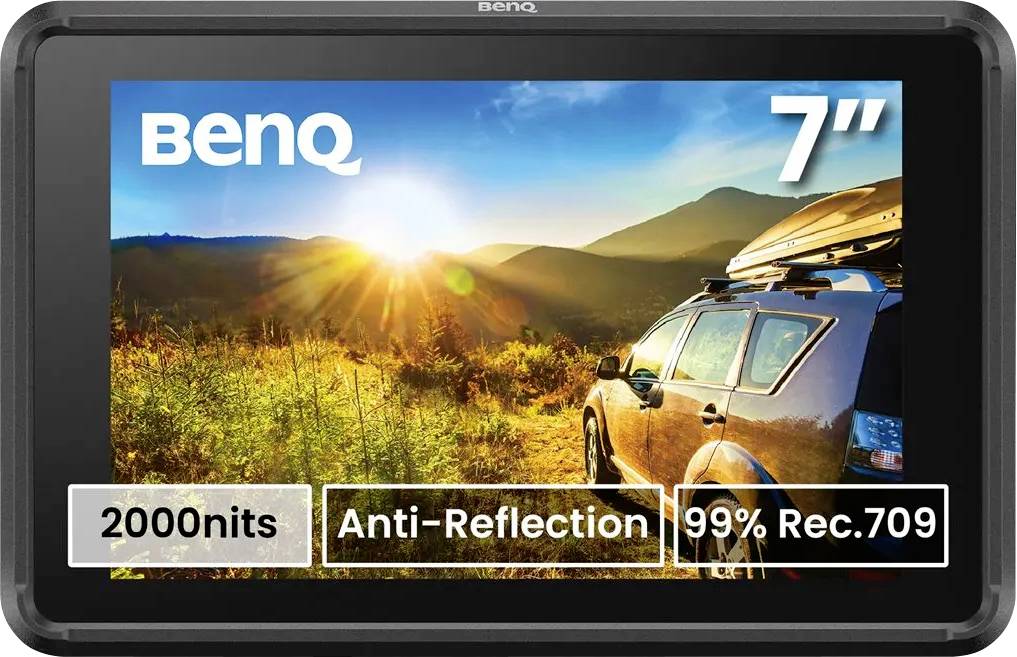

BenQ PVS7 LCD 17.8 cm (7 inch) 1920 x 1200 p 16:10 30 ms HDMI™, Headphone input, microSD IPS LCD
EAN:
Part number:
Item no:
BenQ PVS7 LCD
Highlights & Details
- Screen size 17.8 cm (7 inch) WUXGA, 1920 x 1200 p;Response time: 30 msEnergy efficiency rating (calc): n.rel.
- Interfaces: HDMI™, Headphone input, microSD;Headphone jack
Technical specifications
- Power supply: Adapter or battery
- Brightness (Type): 2000 nits
- Refresh rate (Hz): 60
- Colour range: REC.709
- Color mode: REC.709, User
- Display colors: 16.7 million colors
- Colour temperature: 5000K, 5500K, 6500K, 9300K, Custom.
- HDCP 2.2
- Power consumption (Max.) 18 W.
- Compatible batteries NP-F series
- Battery life (based on 7.4V): 2600mAh - 2.5hrs , 5200mAh -5hrs , 7800mAh -7.5hrs
- DC-input voltage 6.5V-16.8V
- SDI (3G) input: 1
- SDI (3G) output: 1
- Product type
LCD
- Resolution (max.)
1920 x 1200 p
- Screen size diagonal (cm)
17.8 cm
- Screen size diagonal (inches)
7 inch
- Screen size diagonal (inches)
7 inch
- Image format
16:10
- Panel technology
IPS LCD
- Frame rate
60 Hz
- Response time
30 ms
- Brightness
2000 cd/m²
- Static contrast ratio
1200 : 1
- Pixel density (PPI)
323
- Colour temperature
5000 K
5500 K
6500 K
9300 K
- Factory colour
Black
- Interfaces
HDMI™
Headphone input
microSD
- No. of HDMI ports
1 x
- Features
Headphone jack
- Power consumption (standby)
0.5 W
- Hor. viewing angle
160°
- Vertical viewing angle
160°
- Screen coating
Anti-glare
- Width
194.8 mm
- Height
126 mm
- Depth
38.6 mm
- Weight
0.693 kg
- Power supply (details)
100 - 240 V
- Dim
(W x H x D) 194.8 x 126 x 38.6 mm
- OSB languages
Chinese (simplified)
Chinese (trad.)
English
Japanese
- Display size
- 23 inch
- Display type
LED backlit
- Display resolution mode
WUXGA
n.rel.
- Display
17.8 cm (7 inch)
- Screen resolution
WUXGA (1920 x 1200 Pixel)
- Display (cm)
17.8 cm
- Power consumption (ON)
10 W
- Standby consumption
0.5 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3438409 BenQ PVS7 LCD 17.8 cm (7 inch) 1920 x 1200 p 16:10 30 ms HDMI™, Headphone input, microSD IPS LCD
Description
Scope of delivery
- Cable
- Quick guide.
