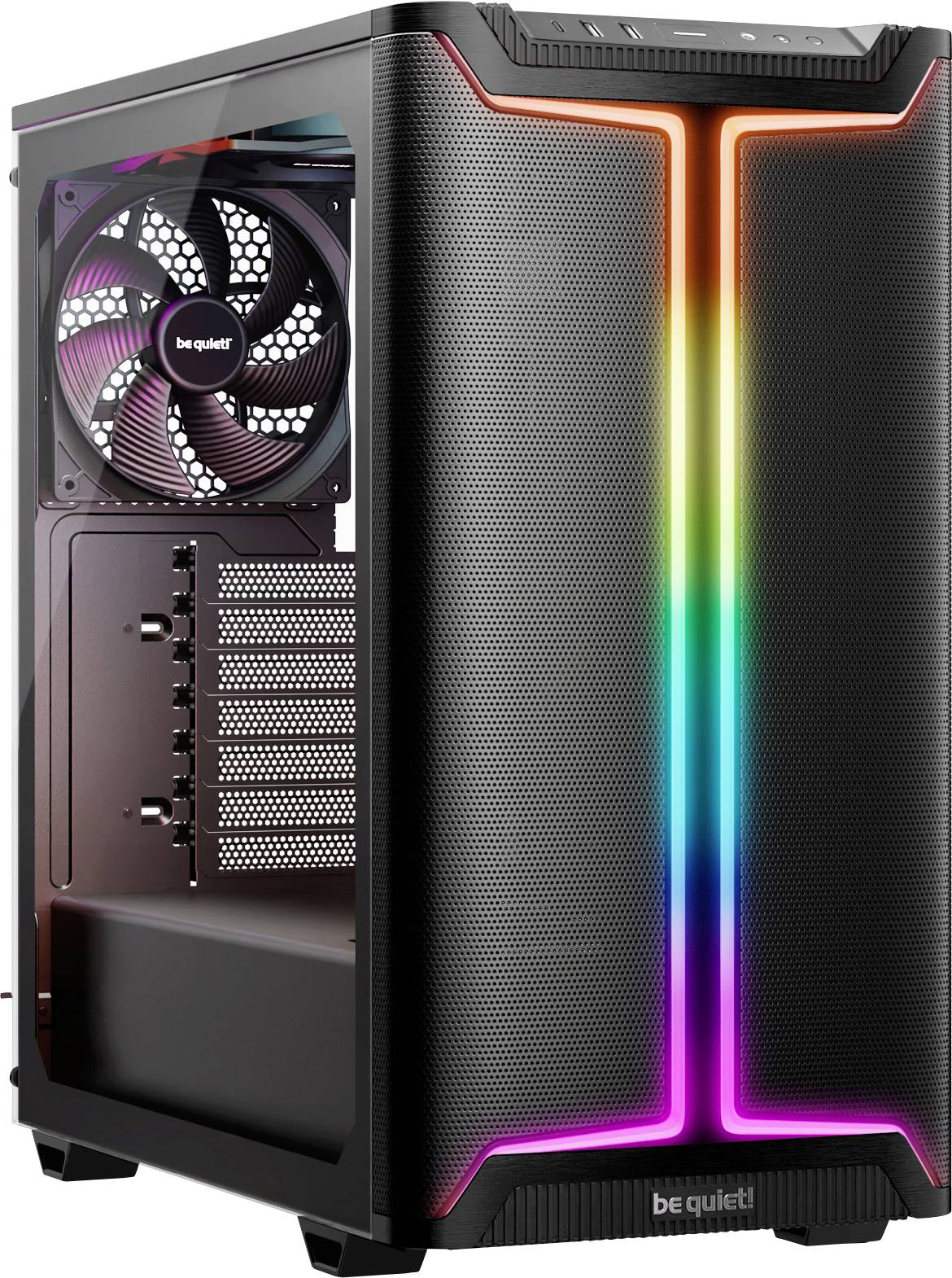

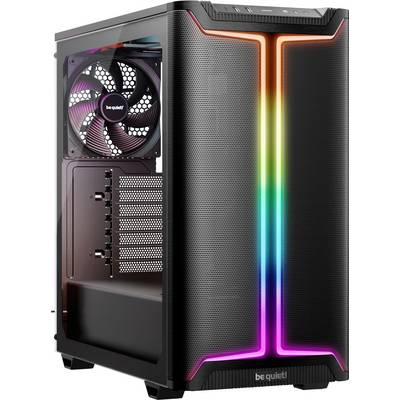

A black computer tower with RGB lighting on the front panel. The internal components are visible through a side panel with a case fan installed.

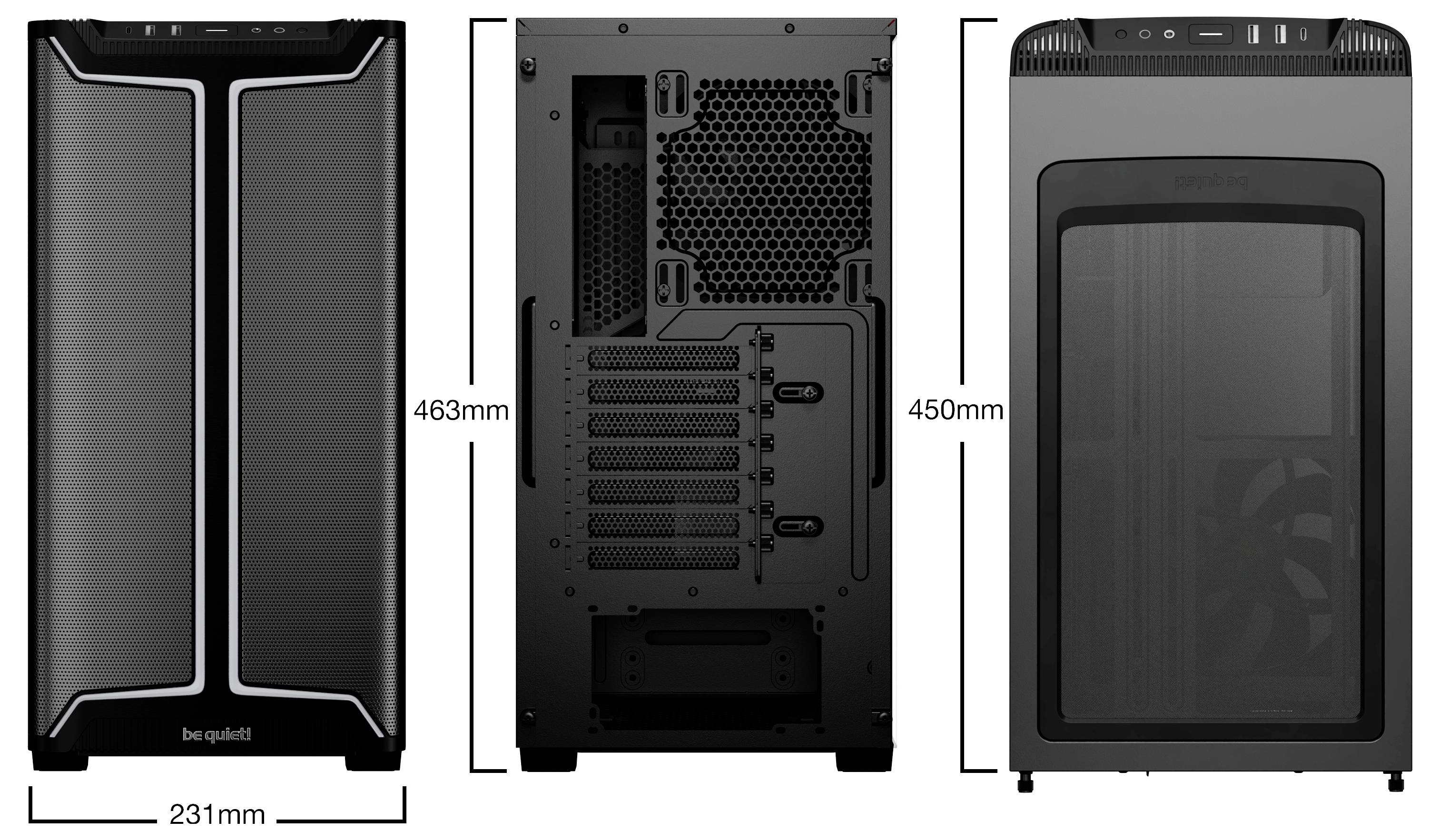

'Be Quiet!' PC case shown from front, back, and side. Dimensions: 231mm width, 463mm height, 450mm depth. Features mesh panels.

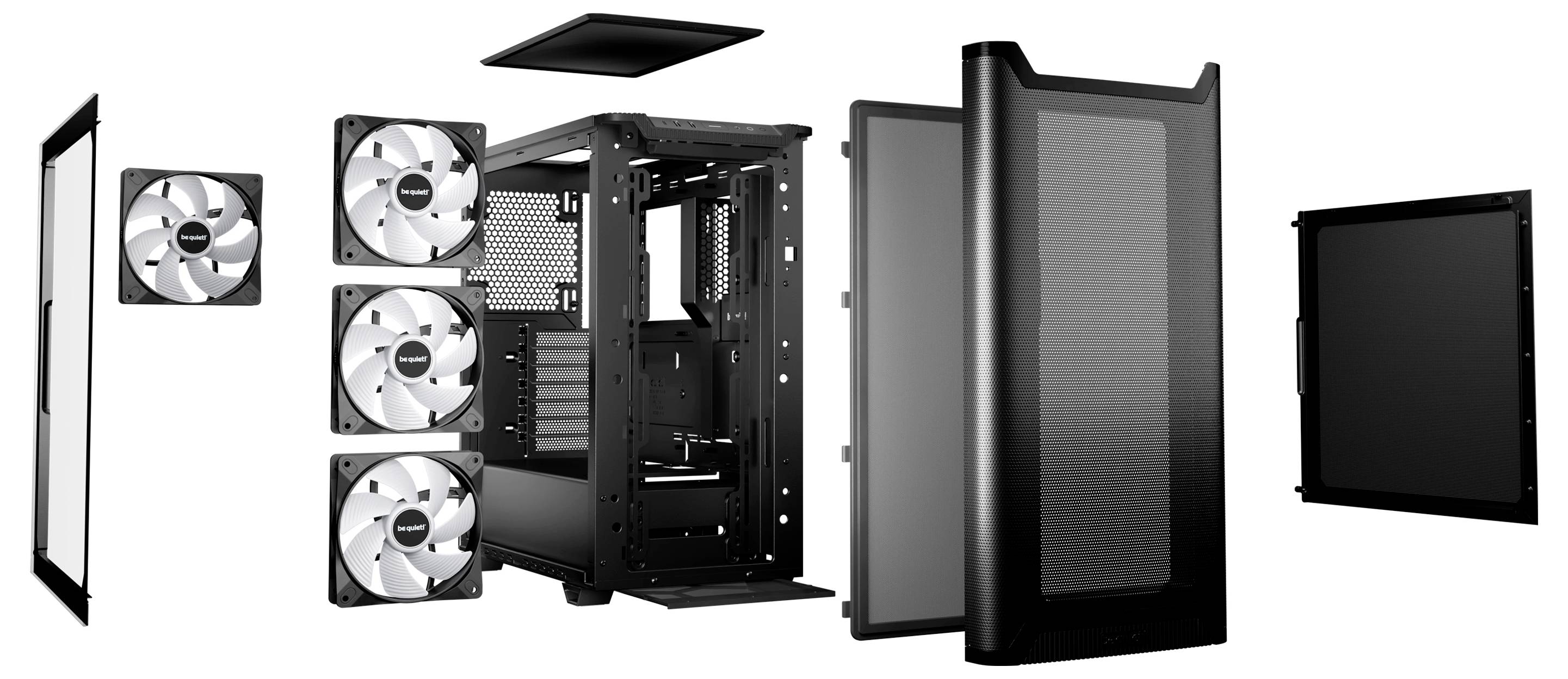

Exploded view of a computer case showing components: frame, four fans, two mesh panels, and other parts, highlighting design details.

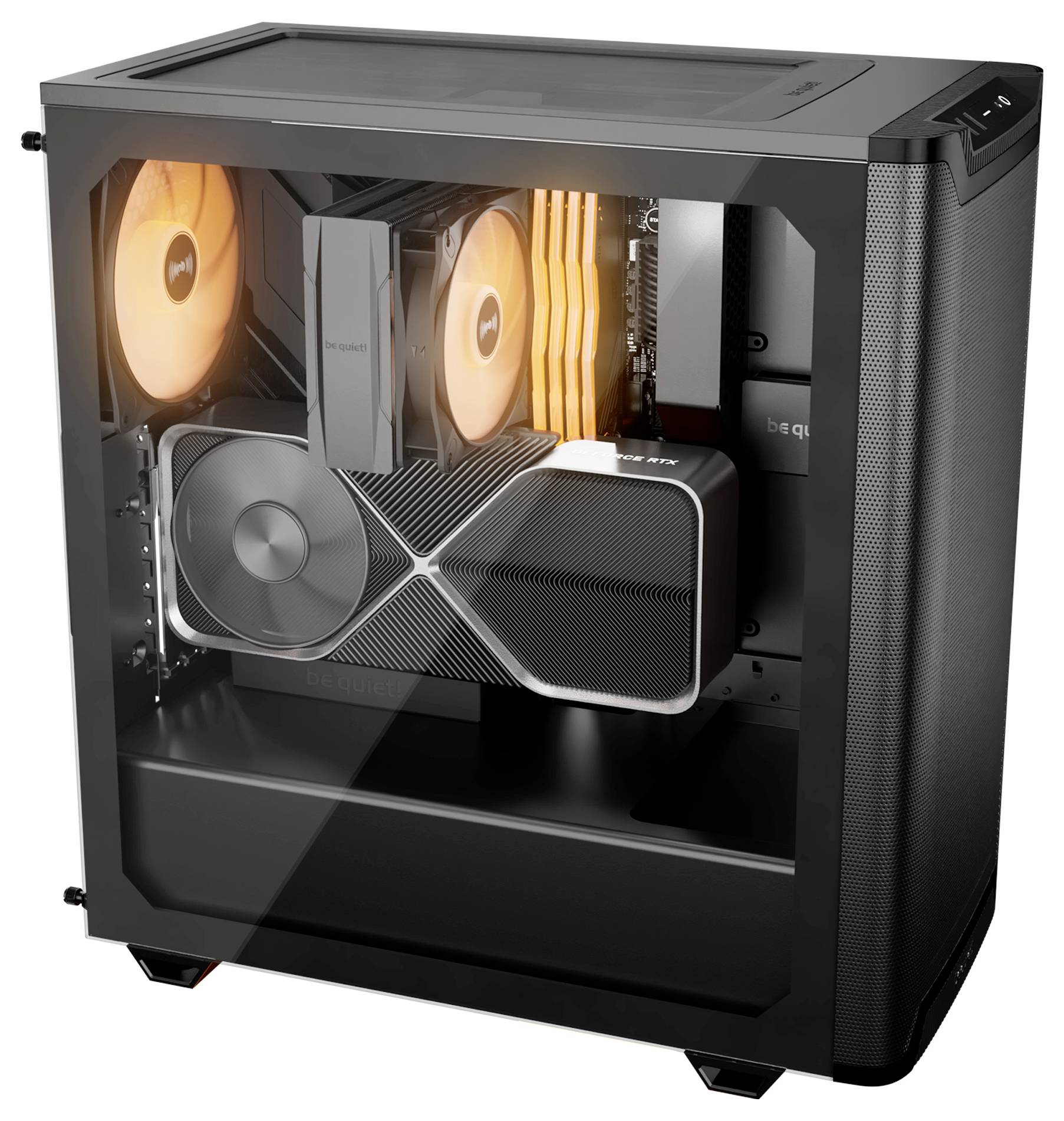

A transparent-sided computer tower showcasing internal components, including orange-lit fans, a large graphics card, and arranged cables.

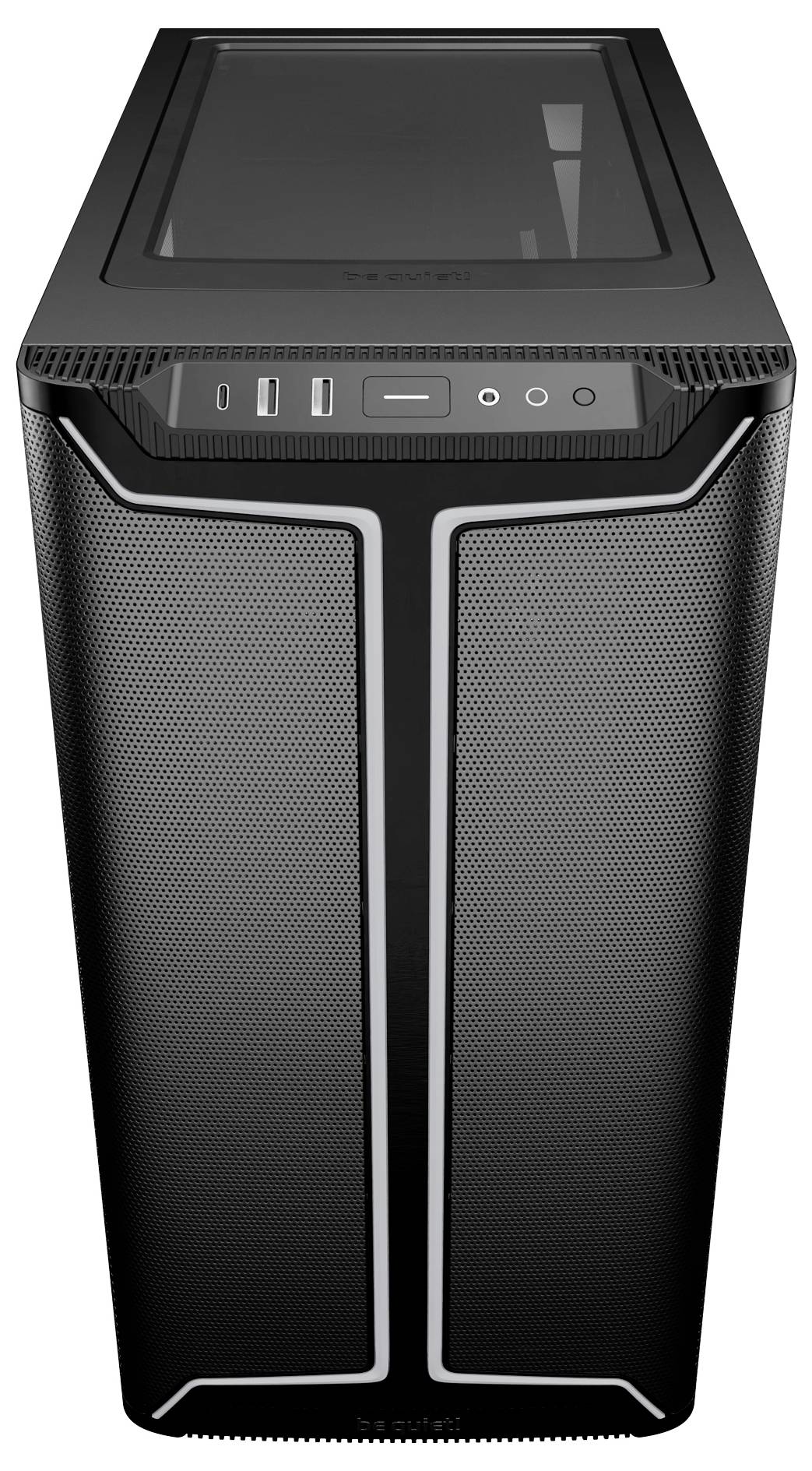

'A black computer tower case with a mesh front panel and top-mounted ports, including two USB ports and audio jacks.'

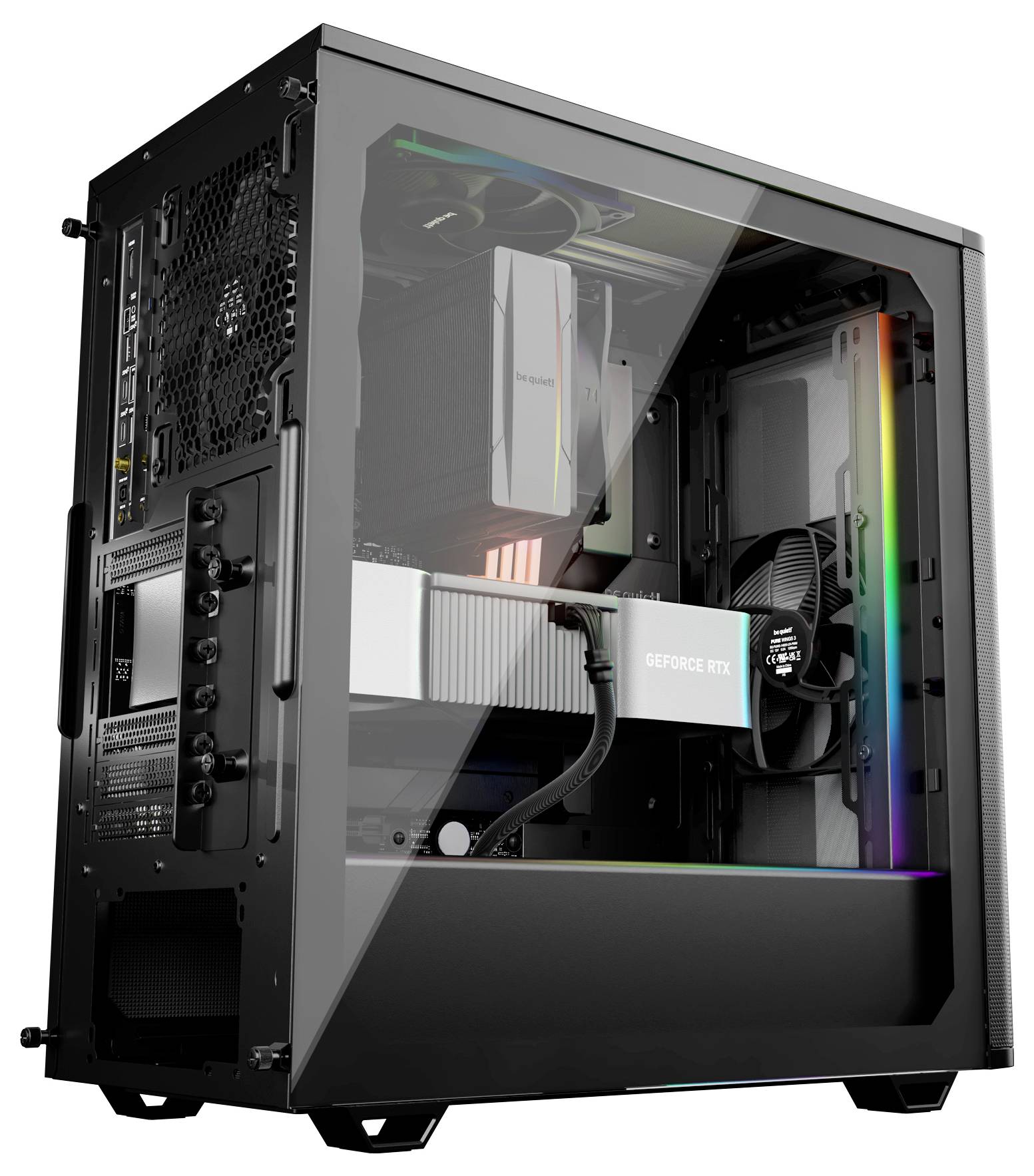

A modern desktop computer with a transparent side panel, showcasing an RGB-lit interior, large cooling fan, and 'GeForce RTX' graphics card.

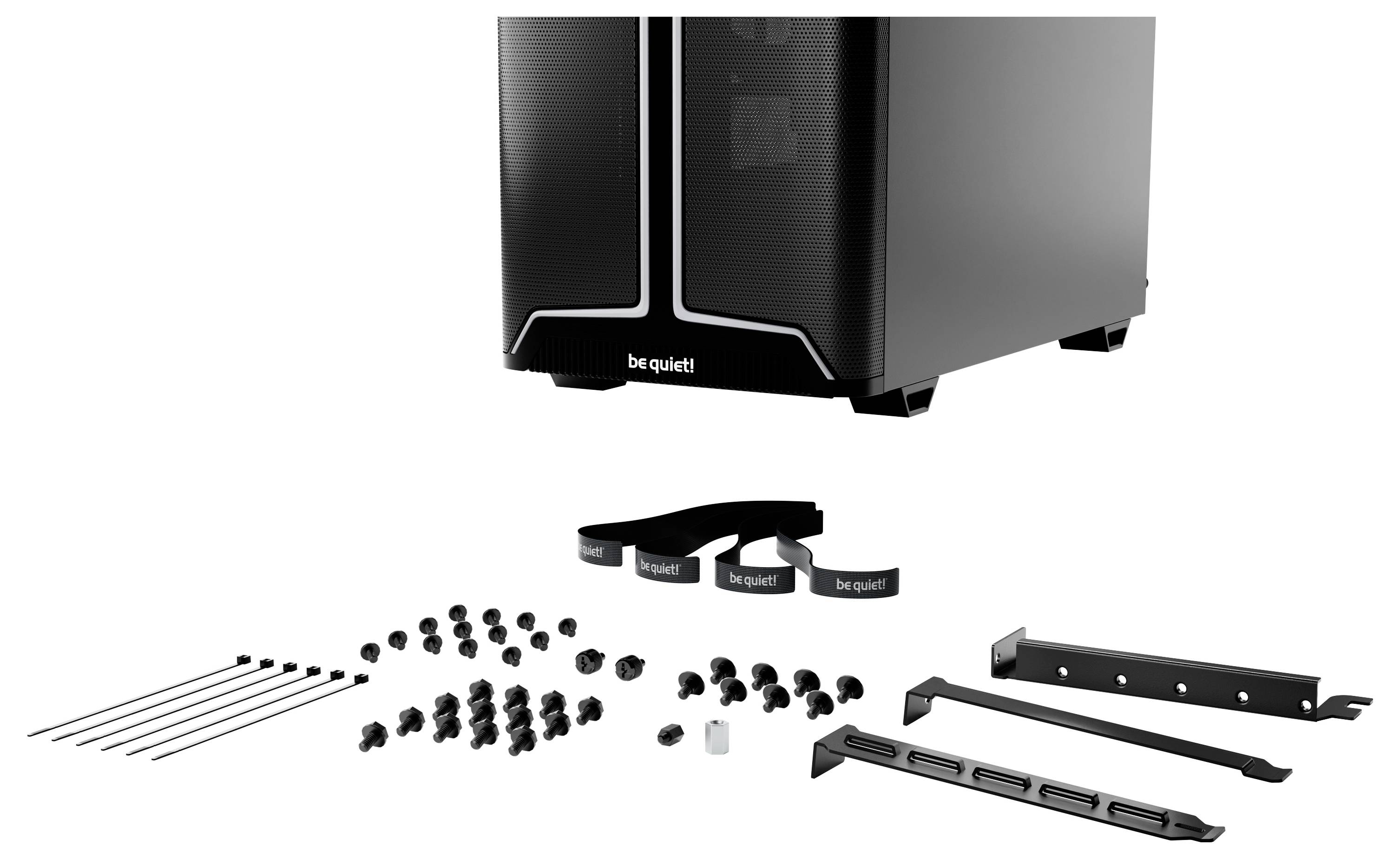

'Be quiet!' computer tower case with various installation tools and hardware components, including screws, straps, and brackets.

1/8

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

BeQuiet be quiet! Geh Pure Base 501 DX Black Midi tower Game console casing

Highlights & Details

Midi tower PC
ATX, micro ATX, mini ATX
Supported hard-disk drive sizes: 2.5,3.5"
Number of 2.5" expansion slots: 5 Number of 3.5" expansion slots: 2
Side window lighting multi anti-dust filter
Acrylonitrile butadiene styrene (ABS), glass, steel
Black

Technical specifications

Material: Acrylonitrile-butadiene-styrene (ABS), glass, steel
Supported motherboards Form factors: ATX, micro ATX, Mini ATX
Nominal fan voltage 5 - 13.2 V
Nominal current fan 0.06 A
4-pin fan connector

Product type: Game console casing

Case type: Midi tower

Factory colour: Black

8.9 cm (3.5") internal slots: 2

6.4cm (2.5 ") external shafts: 5

Width: 231 mm

Height: 463 mm

Depth: 450 mm

Weight: 7.8 kg

Form factor: ATX

Wireless charging: No

Dim: (W x H x D) 231 x 463 x 450 mm

No. of USB 3.2 2nd Gen (USB 3.1): 1 x

No of. USB type A 3.1 /3.2 2nd gen: 2 x

Keyboard layout: German, QWERTZ

Type: PC

Noise emission (max.): 21.9 dB

Capacity: 24.4 l

UKCA: yes

Illumination: yes

Fan power consumption: 3.6 W

Pulse-width modulation (PWM) support: yes

Anti-dust filter: yes

Package weight: 9.2 kg

Number of front fans supported (max): 3

Number of rear fans supported (max): 1

Number of top fans supported (max): 2

Power supply included: no

Side window: yes

Maximum graphics card length: 36.8 cm

Number of expansion slots: 7

Liquid cooling capability: yes

Maximum PSU length: 20 cm

Maximum airflow: 57.4 cfm

Maximum air pressure: 0.96 mmwc

Documents & Downloads

Datasheet

Datasheet 3530786 BeQuiet be quiet! Geh Pure Base 501 DX Black Midi tower Game console casing Black

User & Safety Instructions

User & Safety Instructions 3530786 BeQuiet be quiet! Geh Pure Base 501 DX Black Midi tower Game console casing Black

Description

Pure base 501 DX black is an impressively lit be quiet! ATX housing with compact dimensions and Hohem airflow for each application. Enhance your system with elegant ARGB lighting and enjoy the show.

This text is machine translated.

Features

Airflow front panel and top cover for maximum performance
Dynamic front design with elegant ARGB lighting inside and outside at the housing
3 preinstalled Pure wings 3 140mm PWM fans for extraordinarily high air flow
ARGB controller with motherboard sync option
Spacious design for high-end graphics cards and large cooler despite compact dimensions
Vertical installation of graphic cards possible
Ready for water cooling with radiators up to 360mm
USB 3.2 1st Gen 2 type C for best connection options
Comfortably placed channels for clever cable management
Supports two 3.5’’ or five 2.5’ drives
Product conception, design and quality control in Germany
