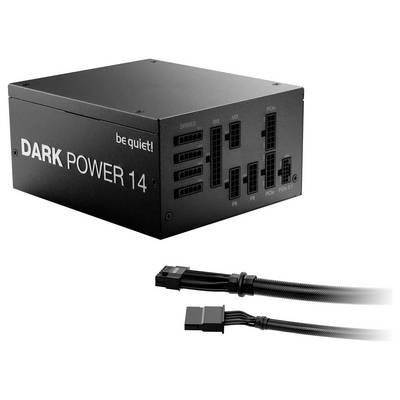

BeQuiet DARK POWER 14 PC power supply unit 850 W ATX 80 PLUS Titanium
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
850 W

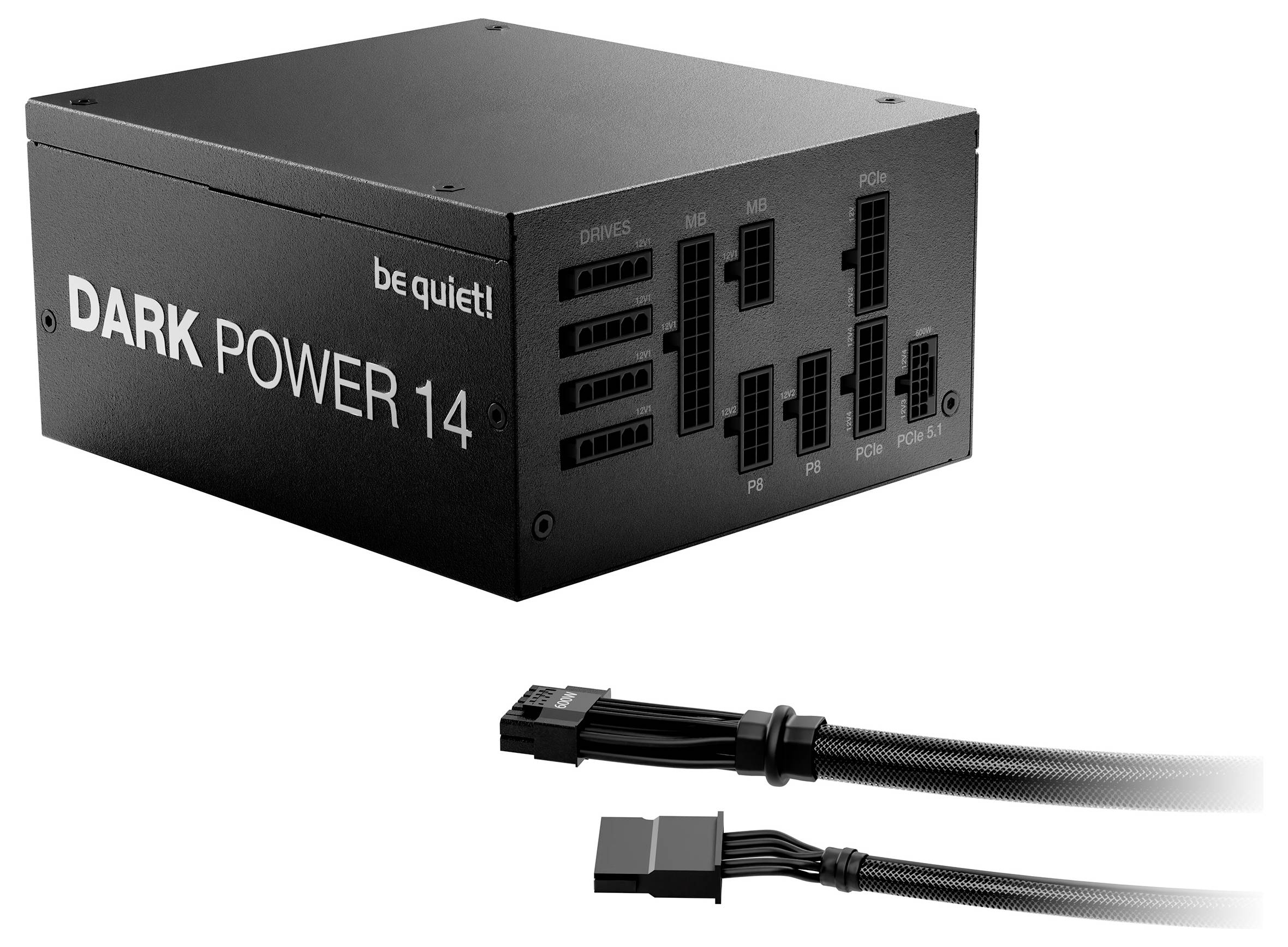

Modular
Yes
Certification
80 PLUS Titanium
Form factor
ATX

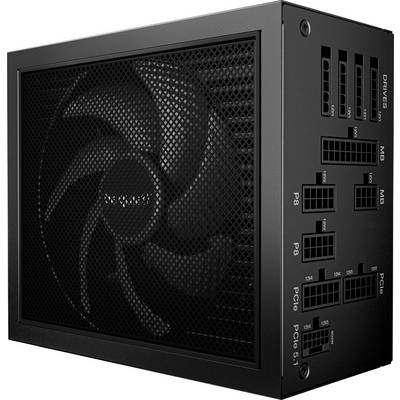

BeQuiet DARK POWER 14 PC power supply unit
Highlights & Details
- Power supply unit output 850 W
- PCI-Express (6+2-Pin) 4x

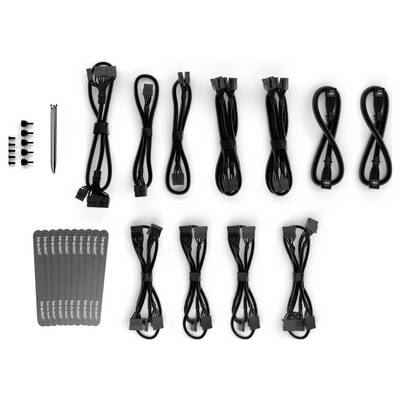

- Cable management Yes
- 80 PLUS Titanium
Technical specifications
- Number of SATA power cables: 13
- 80 Plus certification: 80 PLUS Titanium
- Fan diameter 13.5 cm
- Number of fans: 1 fans
- Product type
PC power supply unit
- PSU output power
850 W
- Modular
Yes
- Certification
80 PLUS Titanium
- Form factor
ATX
- Factory colour
Black
- Dim
(W x H x D) 150 x 86 x 175 mm
- Depth
175 mm
- Height
86 mm
- Width
150 mm
- Weight
2.2 kg
- -12V / DC
0.5 A
- +12 V/DC (1)
30 A
- +12V DC (2)
30 A
- 12V / DC (3)
35 A
- +12V / DC (4)
35 A
- 5 V DC
24 A
- +5V / DC SB
3 A
- 20+4-pin.
1
- 4-pin Molex
2
- 6-pin PCIe
4
- Features
ATX 3.1
PCIe Gen 5.1
- Power rating
751 W -
- Cooling
Active
- Max. operating noise
16 dB
- 3.3V DC
24 A
- Power supply (details)
100 - 240 V
- UKCA
yes
- Screws included
yes
- Operating temperature (T-T)
0 - 40 °C
- Peak power
950 W
- Maximum input current (@110V)
10 A
- Maximum input current (@220V)
5 A
- Shipping (inner) case width
36.8 cm
- Shipping (inner) case length
52.8 cm
- Shipping (inner) case height
26 cm
- Products per shipping (inner) case
4 Stück(e)
- Shipping (inner) case net weight
19.3 kg
- Motherboard power cable length
60 cm
- CPU power cable length
70 cm
- PCI Express power cable length
60 cm
- PCI Express connector
yes

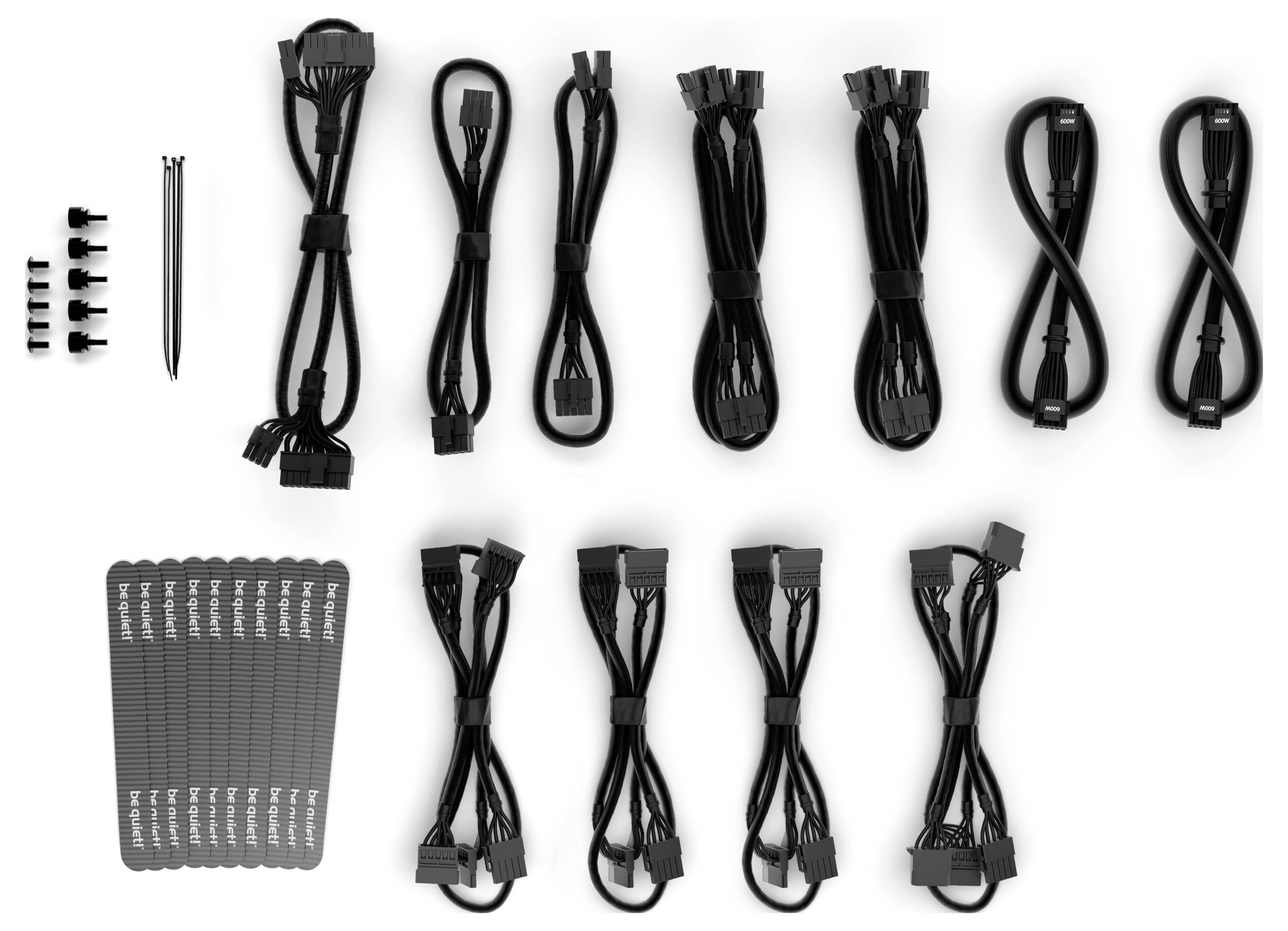

- Cable ties included
yes
- Manual
yes
- EPS power connector (4+4 pin)
yes
- PCI Express power connectors (12-pin)
1
- Number of +12V rail(s)
4

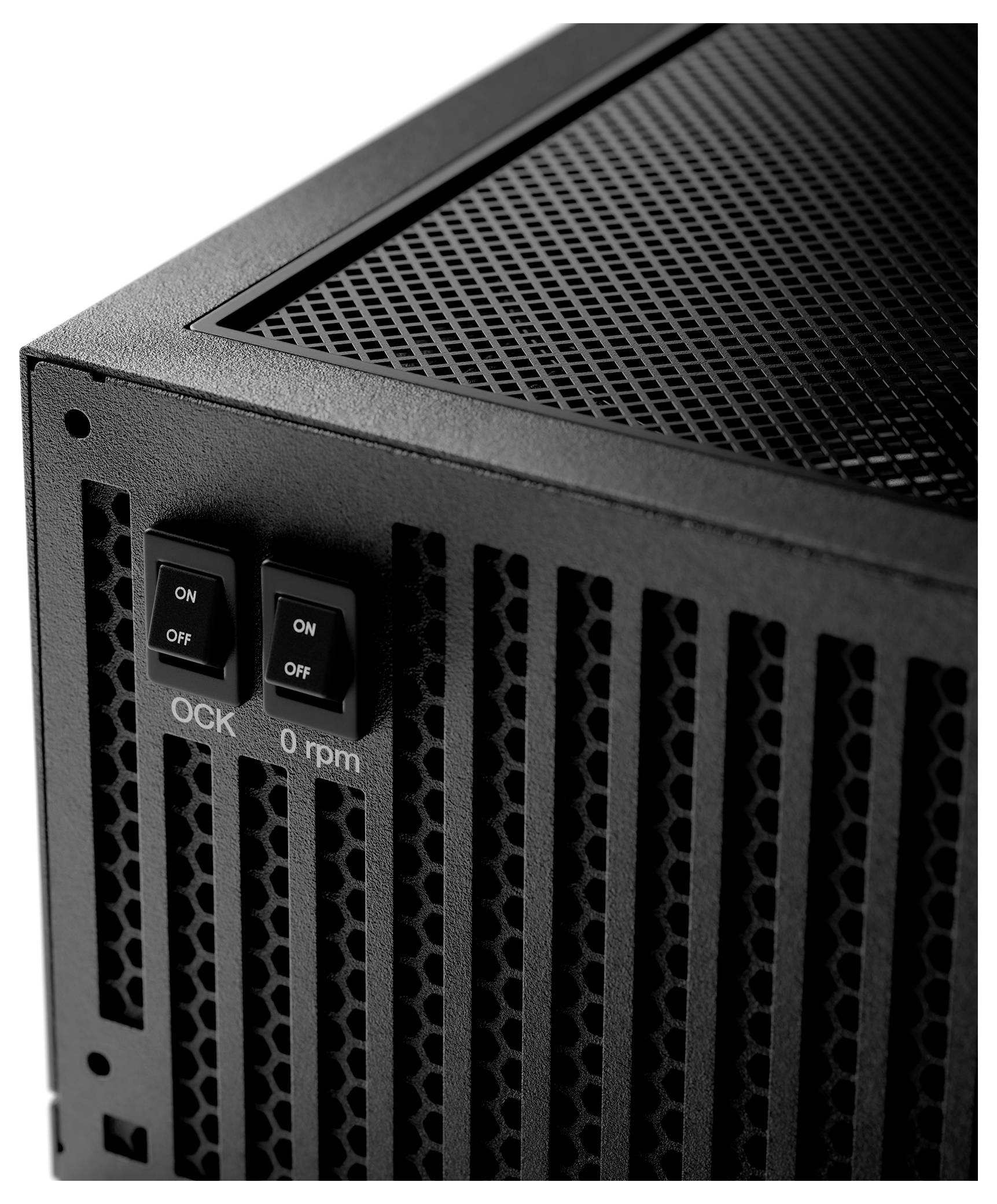

- On/off fan switch
yes
- Mean time between failures (MTBF)
100000 h
- Efficiency
93.8 %
- Hold time
20.7 ms
- On/off switch
yes
- EPS power connector (8-pin)
yes
- ATX power connector (20+4 pin)
yes
- CPU power connector (4+4 pin)
yes
- Power factor
0.98
- Package weight
3.5 kg
- Fan speed
0 - 2100 RPM
- Combined power (+3.3V)
120 W
- Combined power (+12V)
850 W
- Combined power (+5V)
120 W
35 A
35 A
- Max output current (+12V2)
30 A
- Max output current (+12V1)
30 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3532577 BeQuiet DARK POWER 14 PC power supply unit 850 W ATX 80 PLUS Titanium
Description

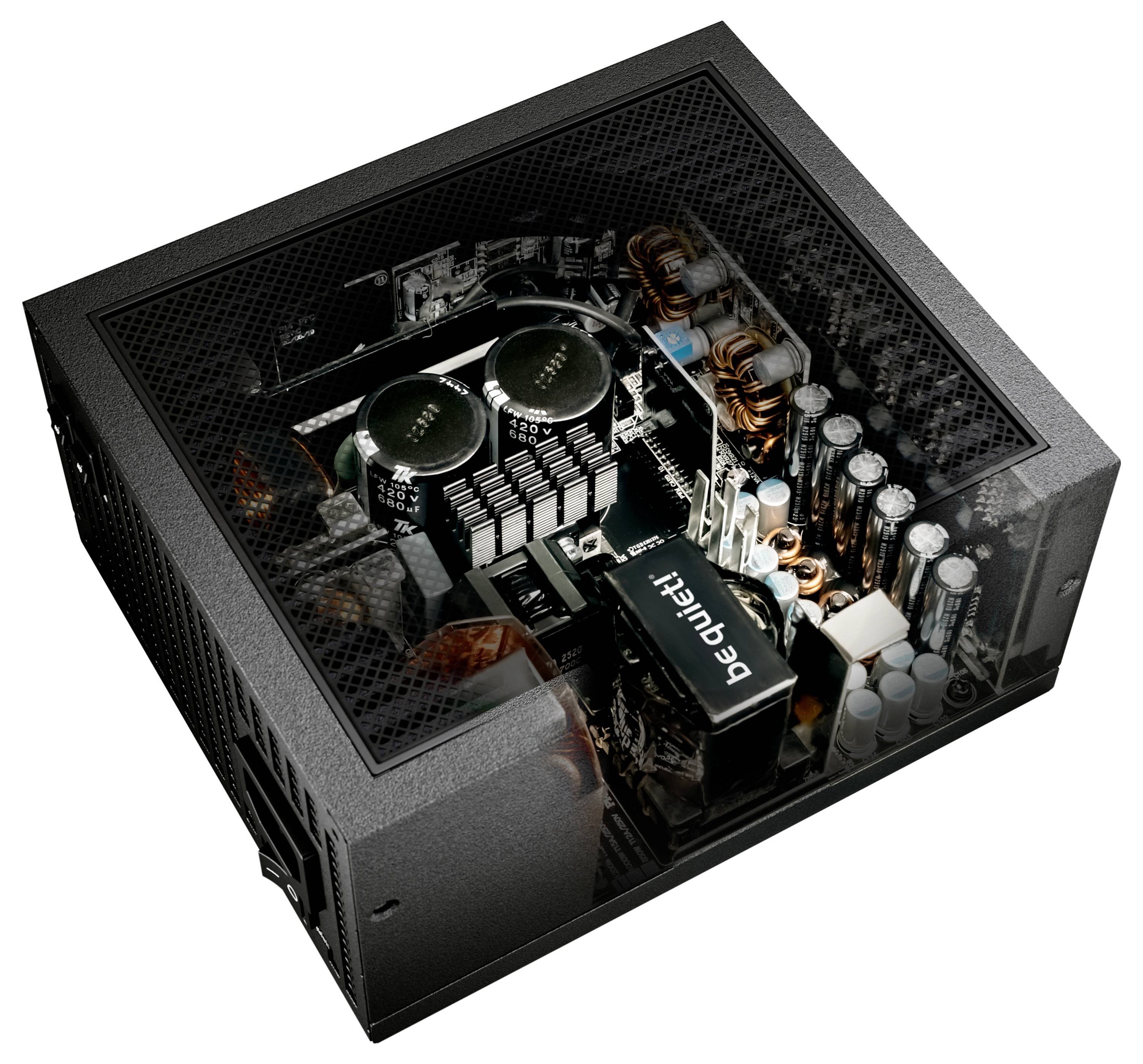

With the 14. Generation is the Dark Power more than just an update. This power pack of power supplies stands for the best that we have to offer as a power supply expert from WAS. Many features include our self-developed Silent Wings fans, state-of-the-art technologies and high-quality components such as Japanese capacitors. In short, Dark Power is our high-end power supply line. Built for all, who take their system seriously.
This text is machine translated.
This text is machine translated.
Features
- 850 W 100 - 240 V 50/60 Hz
- Motherboard connector plug 20+4 pin ATX
- PC ATX 80 PLUS TITANIUM
- Active 13.5 cm 0 - 2100 RPM
- Black
