BeQuiet System Power 9 PC power supply unit 500 W ATX 80 PLUS Bronze
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
500 W
Modular
No
Certification
80 PLUS Bronze
Form factor
ATX
Datasheet (PDF)
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
14-day return policy included
BeQuiet System Power 9 PC power supply unit
Highlights & Details
- Power supply unit output 500 W
- PCI-Express (6+2-Pin) 2x
- Cable management No
- 80 PLUS Bronze
Technical specifications
- Product type
PC power supply unit
- PSU output power
500 W
- Modular
No
- Certification
80 PLUS Bronze
- Form factor
ATX
- Dim
(W x H x D) 150 x 86 x 140 mm
- Depth
140 mm
- Height
86 mm
- Width
150 mm
- Weight
1.92 kg
- -12V / DC
0.3 A
- -5V DC
3 A
- +12 V/DC (1)
24 A
- +12V DC (2)
20 A
- 5 V DC
15 A

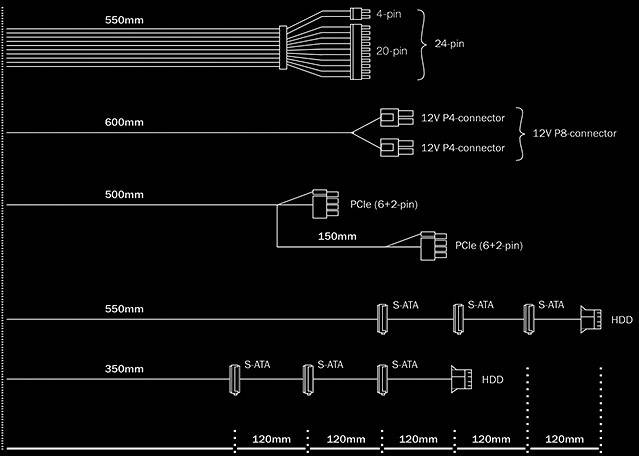

- 20+4-pin.
1
- 4-pin Molex
2
- 4+4 pin ATX/EPS 12V
1
- 6-pin PCIe
2
- 5-pin SATA
6
- Output rating > 500 W
500 W
- Power rating
0 - 500 W
- 3.3V DC
24 A
- Operating voltage
100 - 240 V
Documents & Downloads
Datasheet
Datasheet 2127160 BeQuiet System Power 9 PC power supply unit 500 W ATX 80 PLUS Bronze
User & Safety Instructions
User & Safety Instructions 2127160 BeQuiet System Power 9 PC power supply unit 500 W ATX 80 PLUS Bronze
Warranty Terms
Warranty Terms 2127160 BeQuiet System Power 9 PC power supply unit 500 W ATX 80 PLUS Bronze
Description
Be quiet! System Power 9 500W offers the for be quiet! Well-known reliable and quiet operation and is perfectly suitable for the price-conscious PC construction.
Two strong 12V cables
Stable running performance thanks to the DC/DC technology
Two PCI Express connectors for powerful multi-GPU systems
Quiet, temperature-controlled 120mm quality fan
Standby consumption of less than 0.15 watts
80 PLUS® Bronze Efficiency of up to 89%
Attractive, black sheathed cable
Complete equipment with top safety functions
Meets Intel® C6/C7, ERP, and Energy Star 6.1 guidelines
VERY QUIET OPERATION
Achieved by using a quality fan.
The Power 9 500W system is equipped with a temperature-controlled 120mm quality fan. It offers the well-known quiet operation of be quiet! For cost-effective systems.
80 PLUS BRONZE CERTIFIED
High efficiency The 80 PLUS Bronze certification is a convincing proof for the efficient and energy-saving operation of this power supply. With an efficiency of up to 89%, this represents a remarkable performance for a PSU in its class.
HIGH PERFORMANCE FOR PC SYSTEMS
Proven reliability for CPU and GPU.
The Power 9 500W system provides a stable and reliable power supply for CPU and GPU. It is equipped with two independant 12V lines and supports graphics card configurations with two PCI Express connectors.
INNOVATIVE DC/DC TECHNOLOGY
Equipped with a wealth of advanced technologies.
The DC/DC converter provides for a strong voltage regulation – and this even with heavy cross-loads. This makes the power supply a reliable companion for the next generations of processors and graphics cards.
HIGH-QUALITY CABLE DESIGN
Attractive appearance for powerful systems.
The high-quality, black-coated cables give each PC system an attractive appearance.
COMPREHENSIVE PROTECTION
Fully equipped with security features.
Top component protection with comprehensive safety functions, including OCP, OVP, OPP, OTP UVP and SCP, to ensure uncompromising safe operation.
This text is machine translated.
Two strong 12V cables
Stable running performance thanks to the DC/DC technology
Two PCI Express connectors for powerful multi-GPU systems
Quiet, temperature-controlled 120mm quality fan
Standby consumption of less than 0.15 watts
80 PLUS® Bronze Efficiency of up to 89%
Attractive, black sheathed cable
Complete equipment with top safety functions
Meets Intel® C6/C7, ERP, and Energy Star 6.1 guidelines
VERY QUIET OPERATION
Achieved by using a quality fan.
The Power 9 500W system is equipped with a temperature-controlled 120mm quality fan. It offers the well-known quiet operation of be quiet! For cost-effective systems.
80 PLUS BRONZE CERTIFIED
High efficiency The 80 PLUS Bronze certification is a convincing proof for the efficient and energy-saving operation of this power supply. With an efficiency of up to 89%, this represents a remarkable performance for a PSU in its class.
HIGH PERFORMANCE FOR PC SYSTEMS
Proven reliability for CPU and GPU.
The Power 9 500W system provides a stable and reliable power supply for CPU and GPU. It is equipped with two independant 12V lines and supports graphics card configurations with two PCI Express connectors.
INNOVATIVE DC/DC TECHNOLOGY
Equipped with a wealth of advanced technologies.
The DC/DC converter provides for a strong voltage regulation – and this even with heavy cross-loads. This makes the power supply a reliable companion for the next generations of processors and graphics cards.
HIGH-QUALITY CABLE DESIGN
Attractive appearance for powerful systems.
The high-quality, black-coated cables give each PC system an attractive appearance.
COMPREHENSIVE PROTECTION
Fully equipped with security features.
Top component protection with comprehensive safety functions, including OCP, OVP, OPP, OTP UVP and SCP, to ensure uncompromising safe operation.
This text is machine translated.
Features
- Model: System Power 9 | 500W
- Continuous power (W) 500
- Form factor ATX 12V: Version 2.4
- Topology: DC-DC
- Mains voltage (Vac) 200-240
- Mains frequency (Hz): 50
- Nominal current (A): 4
- PFC: Active
- Power factor at 100% load:> 0.95
- Supports Intel C6/C7: ✓
- Power consumption in standby (W):< 0.15
- Average lifetime (h / 25°C): 100,000
- Operating range up to (°C): 40
- 12V lines (multi-rail operation): 2
- +3.3V (A): 24
- +5V (A): 15
- +12V1 (A): 24
- +12V2 (A): 20
- -12V (A): 0.3
- +5Vsb (A): 3
- Max. Total power 12V (W): 456
- Max. TOTAL POWER 3.3V + 5V (W): 110
- Hold-up time at 100% load (ms @ 100%): 17 @ 75% load
- Fan: High-quality fan
- Engine technology: 4-pole fan motor
- Bearing technology: Sleeve
- Fan size (mm) 120
- Max. Fan speed (rpm), temperature-dependant 2.100

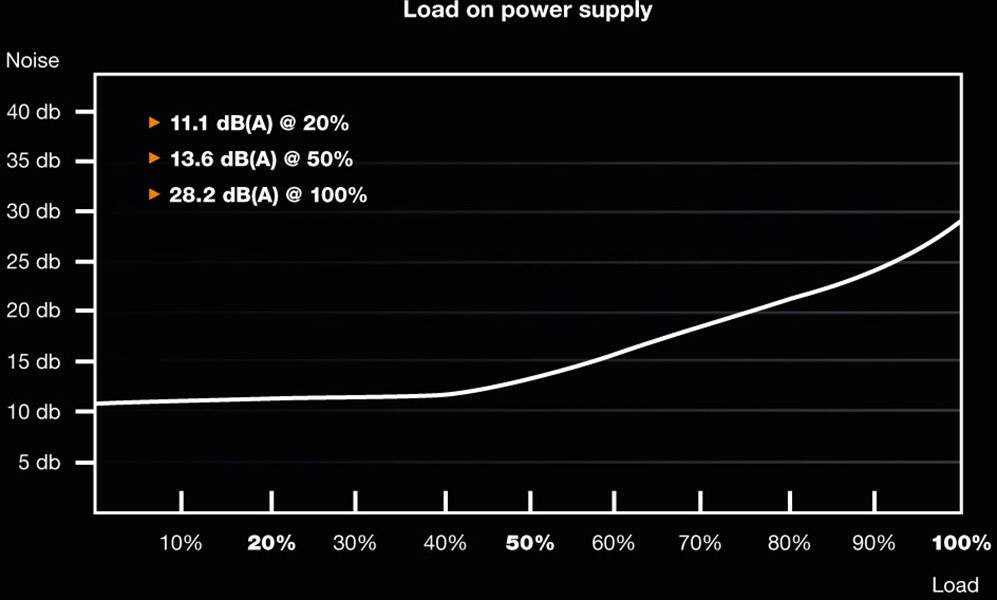

- DB(A) at 20% load: 11.1
- DB(A) at 50% load: 13.6
- DB(A) at 100% load: 28.2
